Sharp 20V-K80M (share ko lang)

Post by ultrasonic™ on Tue May 14, 2013 2:14 pm

alam kng basic trouble to pero just want to share...
para makadagdag ng references sa mga newbies na gaya ko (^_^

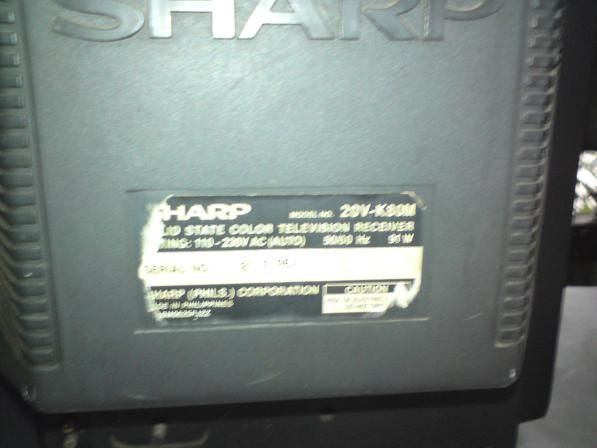

my pumasok sa bahay na Sharp TV 20V-K80M
Chassis L2

trouble: no raster with 2 bars half screen on both side (left & right)
may vertical line pa sa gitna



nangbinuksan ko...



nag visual check muna









at ayon may nkita akong umido
palatandaan na my leak liquid (^_^
tinanggal ko ang ecaps at nag-ohmmeter check

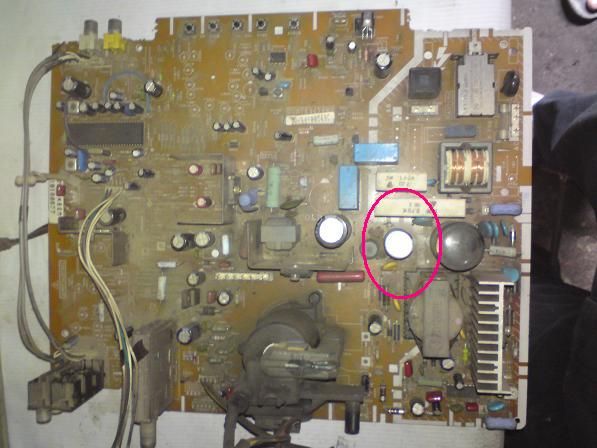

culprit found open filter caps nga na 100uf/160V (C751)



kaya pala palyado at weak B+ (^_^

nag pinalitan ko... nawala ang 2 bars sa bawat gilid.. at ang 1 line sa gitna.. pero my isa pang problema... OSD lng ang naaninag with black screen... nalilipat ang channel at nagreresponse ang system... indication na parang may problema ang ABL section...

pero sempre... dahil medjo kabisado natin ang chassis board. matutumbok agad ang ABL resist.. nang cheneck ko, ok nman pala.. di xa change value

so sunod na gnawa ko.. trinay sa AV mode at ayon my display xa
good picture, color at sound.. pero ng tinaray ulit ilipat ang channel aba... nakastuck lagi sa AV mode kahit nailipat na... di tugma ang osd sa actual command

kaya suspect agad ang AV swicther..
pero bago lumudag sa conclusion...bakit di ko etry ang reprogram ang eeprom thinking

so nghanap ako ng K80M files pero tinamad ako mghanap.. npadaan ako sa mga cinemaborg model na
S200

at ayon gumana (^_^

over vertical height nga lng..
so last procedure pasukin ang S.mode at ng adjust

then finish na..
