Goldstar TV ( Chassis NC-47A )

Post by ultrasonicâ„¢ on Wed Apr 24, 2013 1:11 pm


GOLDSTAR TV

Model:

TC-1220R
CN-20C20
CN-20C40


Chassis NC-47A




Power Reg.: STRS6707
EEPROM : AT24C02
System Con. : GS8308-13A / M37210M3SP
Jungle : AN5302K
Vertical : LA7833
AV Sw. : GL3812 / HA11518
S.Preamp Con: GL3230 / KIA6930P / TA7630P
Split VIF/SIF: M51365SP
Sound : LA4282
HOT: 2SD1555
FBT : 154-177J

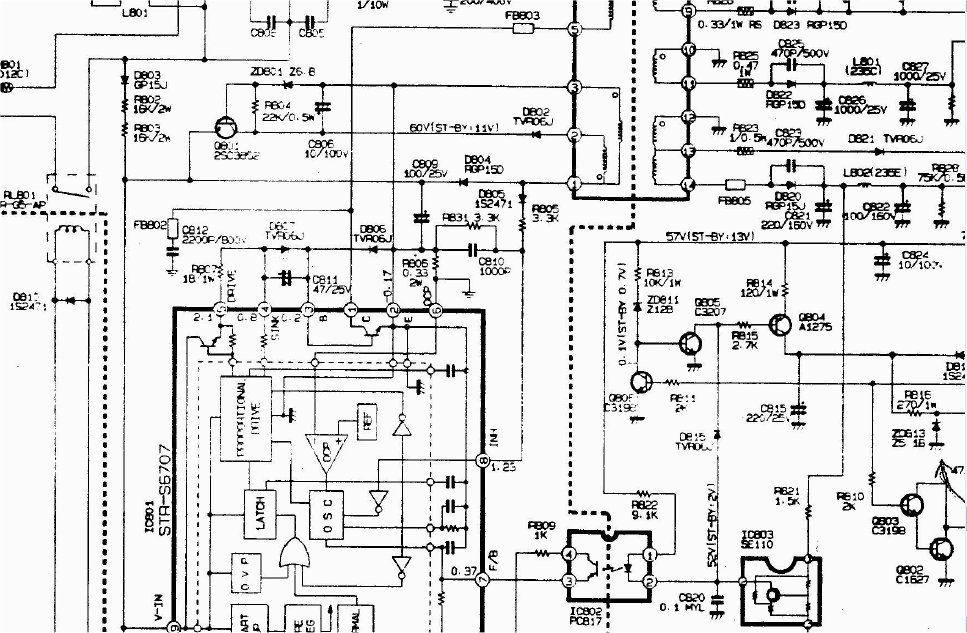

Goldstar Chassis NC-47A
