WESTRAK amplifier

Post by 01110011 on Sun Mar 31, 2013 11:58 pm

thread po ito about westrak amps, feel free to ask, mag post ng projects at builds ninyo, pwede din kayu magdagdag ng diagrams, mga tips, at mods ninyu Very Happy

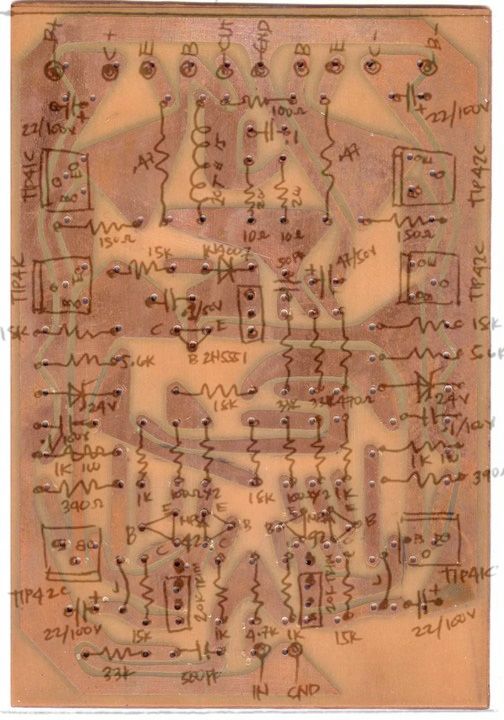

schematics:

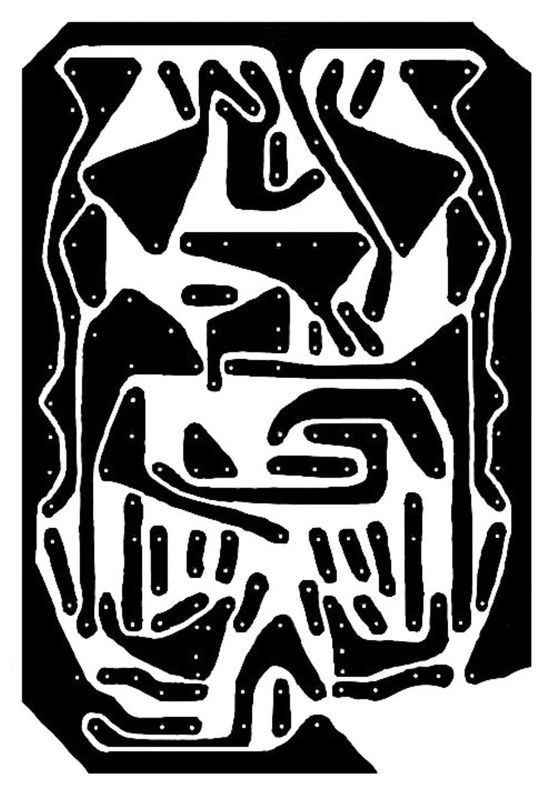

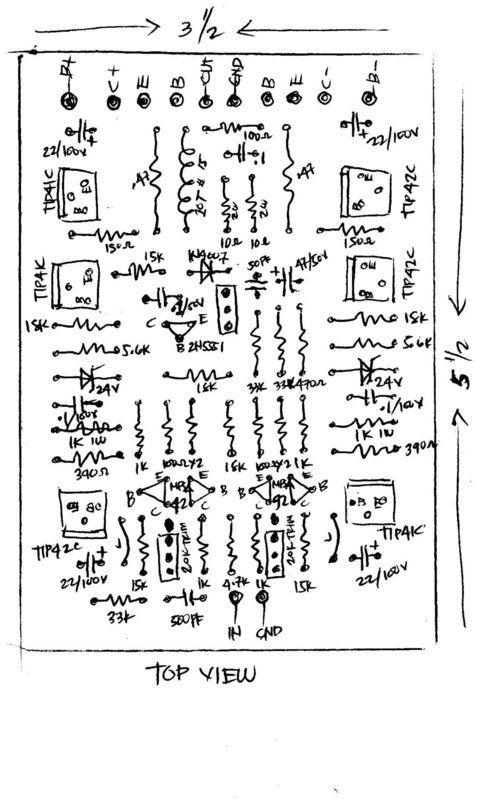

PCB layout at placement:

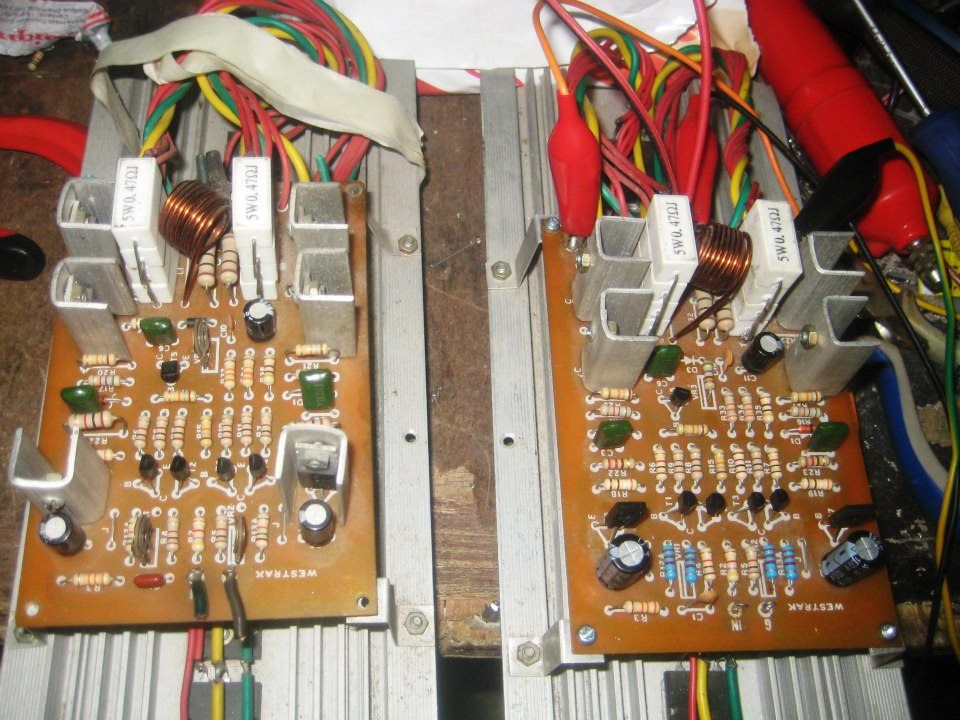

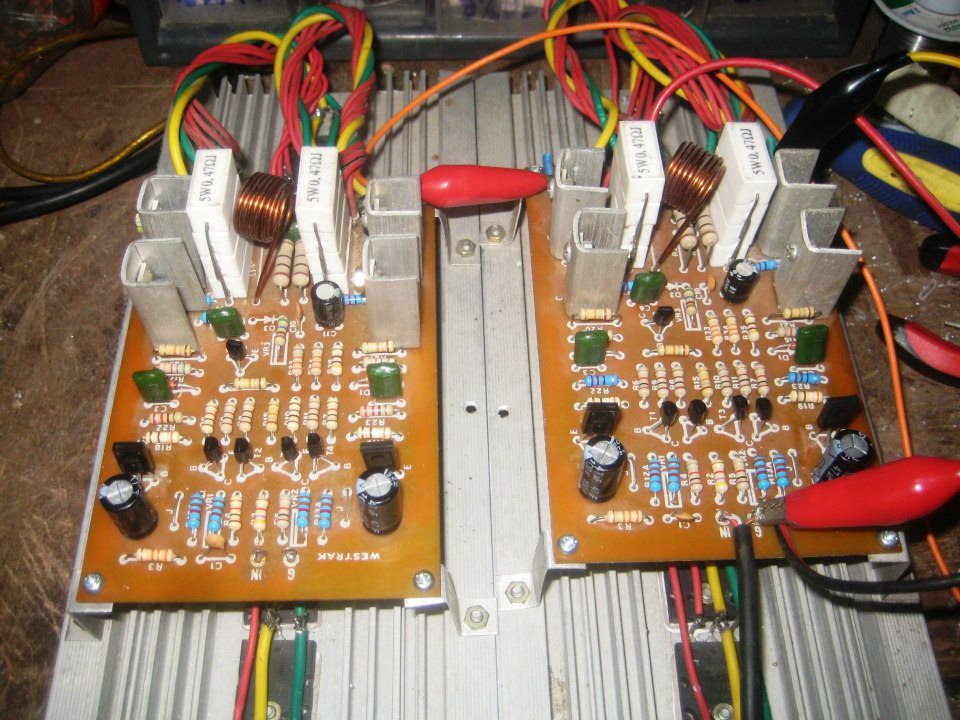

pics ng builds:








special thanks to: sis skyjham at sis hengilbert at sa e-lab cheers

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 25
Location : cebu city

Back to top Go down

Re: WESTRAK amplifier

Post by Hertz on Mon Apr 01, 2013 12:21 am

nice sharing sis. isa din iyang WESTRAK sa pinakamagandang High fidelity amp dito sa pinas. Popular iyan lalo na sa mga builder Hobbyist
