Sharp TV ( Chassis GA-1 ) Eboard: DUNTKA541WE

Post by DJFEL on Fri Feb 08, 2013 11:13 am

Sharp 20GT21C Chasis Ga-1

Partlist

Powe Reg.: TDA9302H
System Con. : 1X3368CE
Jungle/Chroma :
Vertical : TDA9302H
Sound :

http://www.mediafire.com/view/?mn30obl5t8iiiq5

DJFEL
D Battery
D Battery

Posts : 1722
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Sharp TV Chassis GA-1 ) Eboard: DUNTKA541WE

Post by ultrasonicâ„¢ on Fri Jun 13, 2014 12:46 pm



Sharp TV
14LK14



Chassis: GA-1

Eboard: DUNTKA541WE, QPWBFA541CEND





Main Parts:

Reg: STRG5653
EEPROM: 24C04
UOC: IX3564CE,
TDA9381PS/N3/1/1531, IX3368CEN9, TDA9381PS/N2/1i1146, IX3368CEN7
Sound: AN7511,
AN17323A
RGB: TX0124BM,
BF421 & BF422
Vert: AN5522,
STV9302
HOT: D2586
FBT: F0228PE, F0230PE (RTRNF0228PEZZ),
BSC21-2647S
TUNER: VT1T5UF214, VTUCTF5511







To enter the service mode and exit service
mode.

Short JA137&JA138 for 1 Second and release to switch
to the service mode position, and the microprocessor is
in input mode.(Adjustment through the I2C bus control.)
To exit the service mode, turn the television off by
pressing the power button.

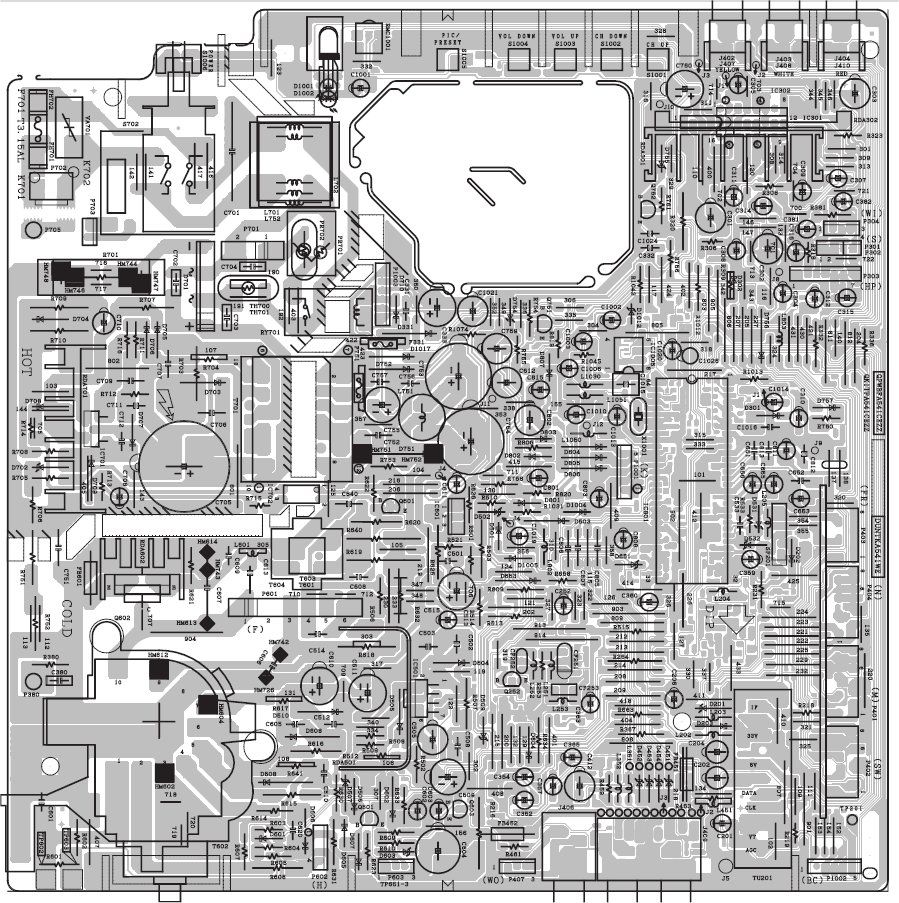

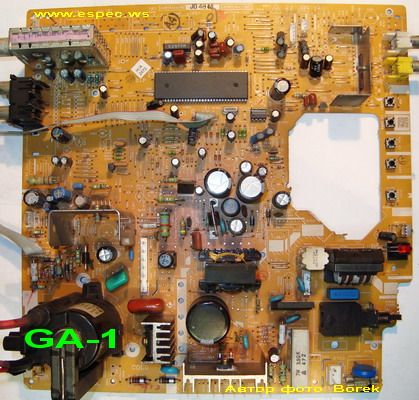

Sharp TV Chassis GA-1
