POLYTRON 21 inch DONE!

Post by zandertech on Wed Feb 06, 2013 1:44 pm

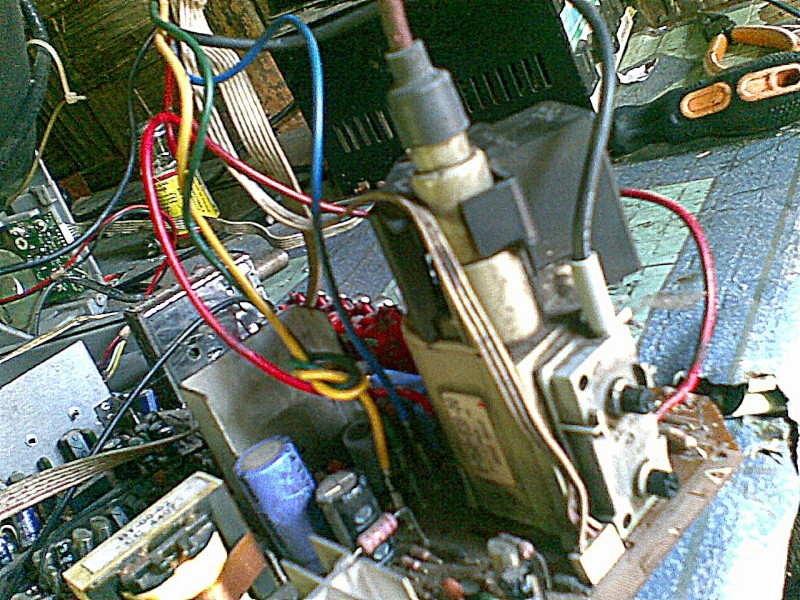

Mga boss share lng po may nagawa ako Polytron 21 inch ,.bale wala na syang FBT nung natanggap ko sira na daw kc thennamisplaced nung owner ung pyesa,. so di ko alam ung exact number and wala ko makitang diagram kaya ni replace ko nlng[img][/img] yan ung tv after mareplace ng FBT i use SONY 21 inch FBT and minodify ko n lng ung pins eto un [img][/img] ,.[img][/img] bale ang part number nito 8-858-838-00 so nagtaka ako bakit ganun di buo ung pic nya at pinasakit nya talagaang ulo ko then suddenly naalala ko may nagawa narin pla ko na ganito goldstar namn at ang minodify ko ay ung FBP pin so search the net and look for FBP pin of UOC then find out na pin #12 pla un ng UOC nya then i trace the circuit and commonly sa heater sa kumukuha ng supply then i modified it,.[img][/img] instead of connecting to heater kinapako kung saan mas o ok ung pic nya dahil base sa aking judgement mahina ung supply nya sa FBP kya ganon kaya namn inisa isako ung low voltage output ng Flyback then nakuha ko sa sa -12v pinout ng Flyback eto na sya ngaun[img][/img] [img][/img] nakuha sa tyaga at nataposdin problema Polytron TV working fine with Sony FBT

zandertech
C Battery
C Battery

Posts : 297
Join date : 2011-09-29
Location : bulacan

Back to top Go down

Re: POLYTRON 21 inch DONE!

Post by zandertech on Wed Feb 06, 2013 1:53 pm

sorry malabo po ung pixs na iba hehe BTW eto po ung pinout sa board ng polytron na pinaG basehan ko ng FBT data ,.[H.OUT ,B+ ,GND ,180V ,H ,BCL ,12V ,H-SYNC-12V ] and eto namn ung "UOC" [ HBT-00-03G ]

zandertech
C Battery
C Battery

Posts : 297
Join date : 2011-09-29
Location : bulacan

Back to top Go down

Re: POLYTRON 21 inch DONE!

Post by DJFEL on Wed Feb 06, 2013 1:56 pm

nice one sis...maka 2long to sa lahat..

DJFEL
D Battery
D Battery

Posts : 1722
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: POLYTRON 21 inch DONE!

Post by ultrasonic™ on Wed Feb 06, 2013 3:46 pm


oie galing.. +1 sis... Banana dancing

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: POLYTRON 21 inch DONE!

Post by james on Wed Feb 06, 2013 7:39 pm

Ano FBP?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: POLYTRON 21 inch DONE!

Post by baddypepito on Wed Feb 06, 2013 8:02 pm

wow! ang galing mo sis...

baddypepito
C Battery
C Battery

Posts : 293
Join date : 2012-08-08
Age : 29
Location : mandaue city cebu

Back to top Go down

Re: POLYTRON 21 inch DONE!

Post by zandertech on Thu Feb 07, 2013 1:34 am

Fly Back Pulse sir Smile thanks mga bossing

zandertech
C Battery
C Battery

Posts : 297
Join date : 2011-09-29
Location : bulacan

Back to top Go down

Re: POLYTRON 21 inch DONE!

Post by ultrasonic™ on Thu Feb 07, 2013 2:44 pm


^ agreed for Hor. blanking yan

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: POLYTRON 21 inch DONE!

Post by Lenaren on Sun Feb 10, 2013 1:43 pm

Nice one sir!! Galing naman!!

Lenaren
C Battery
C Battery

Posts : 270
Join date : 2012-02-26
Location : Iloilo

Back to top Go down

Re: POLYTRON 21 inch DONE!

Post by Electro on Thu Feb 21, 2013 4:03 pm

galing mo master +1

Electro
D Battery
D Battery

Posts : 1430
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: POLYTRON 21 inch DONE!
