Philips 21PT2011/71R model Pa help po Vert section

View previous topic View next topic Go down

Philips 21PT2011/71R model Pa help po Vert section

Post by denciok200 on Tue Jan 15, 2013 12:35 pm

Mga sir pa help po sa vertical section sa Philips 21PT2011/71R yung resistor na katabi ng dalwang 160V 47mf na capacitor meron po resistor na kulay green na sunog po di ko na malaman ano reading noon kc pu song ano po reading ng resister non yung katabi ng dalwang capacitor sa vert section salamat po mga idol !

denciok200
AAA Battery
AAA Battery

Posts : 8
Join date : 2013-01-15

Back to top Go down

Re: Philips 21PT2011/71R model Pa help po Vert section

Post by ultrasonic™ on Tue Jan 15, 2013 3:46 pm


mhirap mnghula wla kasing exact part location.. di kya FR inductor coil yan or fusible resist from dual B+ caps to B+ coil ng FBT ?
L01.2A chassis ba to sis?

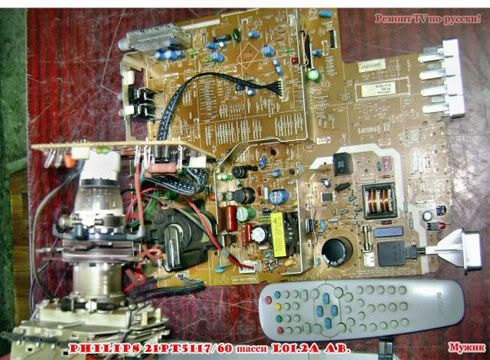

http://aelexian.4rumer.com/t244-philips-tv-chassis-l012a-ab
