PIC and EEPROM Programmer

Post by PIC on Tue Dec 04, 2012 11:18 am

Project Summary

In this project we are building a JDM programmer that can handle PIC12, PIC16 and PIC18 family microcontrollers and some popular 24C family EEPROMs.



Project Description

The programmer also provides ICSP feature that allows In-Circuit Serial Programming. So if you desire, you will not have to carry your MCU each time when you reprogram it. The circuit is connected to the PC via serial port and no external power supply is needed. On the other hand, if you want to use it with a laptop that do not provide RS232 connection, using the circuit with a USB to RS232 converter may not give a proper result.

EEPROM:
24C01A, 24C02,24C04,24C08, 24C16, 24C32, 24C64/65, AT24C128, AT24C256, AT24C512, M24C128, M24C256, 24C515, PCF8572 or 8572 = 24C01, PCF8582 or 8582 = 24C02, PCF8592 or 8592 = 24C04, SDA2506, SDA2526, SDA2546, SDA2586, SDA3506, SDA3516, SDA3526, 4C016 == 24C01, GRS-003 == 24C02, GRN-004 == 24C04, GRN-008 == 24C04, GRX-006 == 24C04, GRX-007 == 24C04, KKZ06F == 24C01, BAW658049 == 24C02, BAW57452 == 24C02, M8571 == 24C02, X24C0

Microchip PIC:
12C508, 12C508A, 12C509, 12C509A, 12CE518, 12CE519, 12C671, 12C672, 12CE673, 12CE674, 12F629, 12F675, 16C433, 16C61, 16C62A, 16C62B, 16C63, 16C63A, 16C64A, 16C65A, 16C65B, 16C66, 16C67, 16C71, 16C72, 16C72A, 16C73A, 16C73B, 16C74A, 16C74B, 16C76, 16C77, 16F73, 16F74, 16F76, 16F77, 16C84, 16F83, 16F84, 16F84A, 16C505, 16C620, 16C620A, 16C621, 16C621A, 16C622, 16C622A, 16CE623, 16CE624, 16CE625, 16F627, 16F628, 16F628A, 16F630, 16F676, 16C710, 16C711, 16C712, 16C715, 16C716, 16C717, 16C745, 16C765, 16C765, 16C770, 16C771, 16C773, 16C774, 16C781, 16C782, 16F690, 16F818, 16F819, 16F870, 16F871, 16F872, 16F873, 16F874, 16F876, 16F877, 16F873A, 16F874A, 16F876A, 16F877A18F242, 18F248, 18F252, 18F258, 18F442, 18F448, 18F452, 18F458, 18F1320, 18F2330, 18F432

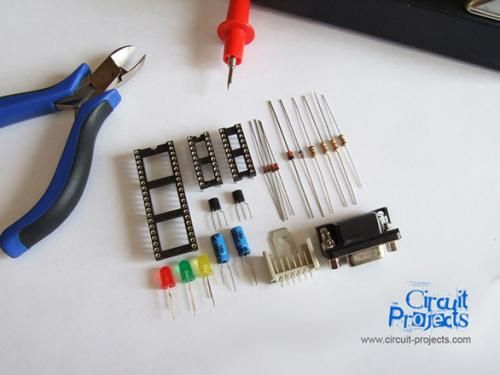

As you see the circuitry contains a few components listed below.

T1, T2 : BC337 Transistor
D1, D4, D5, D6 : 1N4148 Diode
D3 : 6V2 Zener Diode
D2 : 5V1 Zener Diode
R3, R4 : 1K8 1/4W Resistor
R1 : 10K 1/4W Resistor
R2 : 1K5 1/4W Resistor
X1 : DB9 PCB Mount Female Connector
C1, C2 : 100uF 16V Electrolytic Capacitor
SV1 and SV4 : 40 Pin Machine Tooled IC Socket
SV2, SV3 : 20 Pin Machine Tooled IC Socket
SV5 (ICSP) : 6 Pin Header Connector9
L1, L2, L3 : LED (L1: GREEN, L2: RED, L3: YELLOW)

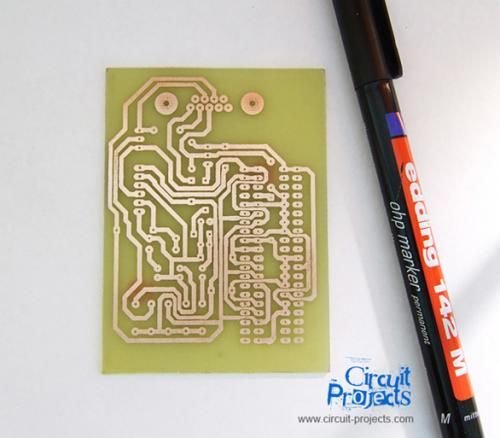

The PCB file is provided in pdf format. You can apply it to the board by using the ironing method.



Assembling the components is straightforward. The only trick is shown in the photo. Before soldering the 40 pin socket, you must cut the plastic bridges between the sides. Another issue, don’t forget to solder the diode (D6) and the jumper under the sockets first.



Here is the final. If you don’t miss any short-circuits, you will see the red LED will bright up when you connect the programmer to the serial port. Now it is ready to use. You may use ICPROG and WinPIC to start programming your PICs or EEPROMs.

LED Indications; Yellow:Clock , Red:Power , Green:Program



Placement is shown in the figure below.

Don’t forget! Wrong placement may defect your IC, programmer or computer.

You may use a ZIF socket instead according to your needs.



PDF download

source: www.circuit-projects.com

PIC
AA Battery
AA Battery

Posts : 85
Join date : 2010-12-17
Age : 26
Location : Bohol

Back to top Go down

Re: PIC and EEPROM Programmer

Post by james on Fri Dec 28, 2012 9:12 pm

Parang ito yung ginawa ko. :face:

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: PIC and EEPROM Programmer

Post by ultrasonic™ on Sat Dec 29, 2012 11:17 am

iyan nga gnawa natin sis js (^_^

btw pwde kaya epost etong GUI nya dito? (^_^

winpicpgm1650

@sis pek tnx for posting

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: PIC and EEPROM Programmer

Post by Digitap on Sat Dec 29, 2012 1:36 pm

mga sir maliit ang pcb layout niyo sa actual sizing ng mga parts. tiyak magkakaproblema ang gagawa

ito po ang akin
PIC and EEPROM Programmer

Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: PIC and EEPROM Programmer

Post by ultrasonic™ on Wed Jan 02, 2013 2:28 pm

^ oie nows ko lng npnsin ang post mu princess... tnx +1

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: PIC and EEPROM Programmer

Post by james on Tue Feb 05, 2013 7:50 pm

Meron ba nyan yung pang usb na version?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: PIC and EEPROM Programmer

Post by DJFEL on Tue Mar 05, 2013 3:07 pm

sino naka gawa usb dito...abang nalang..

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: PIC and EEPROM Programmer

Post by PIEZO on Sun Mar 31, 2013 10:12 pm

DJFEL wrote:sino naka gawa usb dito...abang nalang..

try the Open Programmer v0.8.x
http://aelexian.4rumer.com/t706-open-programmer-v-08x-usb-version-for-eeproms

_________________
2rd member of STTM
former 3rd member

PIEZO
Admin
Admin

Posts : 140
Join date : 2010-08-12
Age : 34

Back to top Go down

Re: PIC and EEPROM Programmer

Post by DJFEL on Fri Sep 06, 2013 12:41 pm

paki shear nang diagram neto..parang wla diagram...

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: PIC and EEPROM Programmer

Post by Hertz on Fri Sep 06, 2013 1:08 pm


_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: PIC and EEPROM Programmer

Post by DJFEL on Fri Sep 06, 2013 1:46 pm

tnks neto herts...

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: PIC and EEPROM Programmer

Post by Hertz on Fri Sep 06, 2013 1:51 pm

walay sapayan

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: PIC and EEPROM Programmer

Post by DJFEL on Mon Sep 23, 2013 7:35 pm



sino kaya naka gawa lahat neto..

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: PIC and EEPROM Programmer

Post by james on Tue Sep 24, 2013 2:59 pm

Kaya mo yan sir.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14
