Sanyo TV ( Chassis FC1-B ) Eboard B10E2760A_AV_Z

Post by ultrasonic™ on Mon Dec 03, 2012 3:29 pm

SANYO TV

Model: CT-21AF2



Chassis FC1-B
Eboard : B10E2760A_AV_Z









Major Parts


Power Reg.: 2SC4430
EEPROM : 24LC08
System/CPU: QXXAVB692
Jungle/Chroma: QXXAVB488M
Vertical : LA7841
Sound : LA4270
HOT: 2SD2578
FBT : L40B09900
Video sw: TC4053BF
Audio sw: TC4052BF

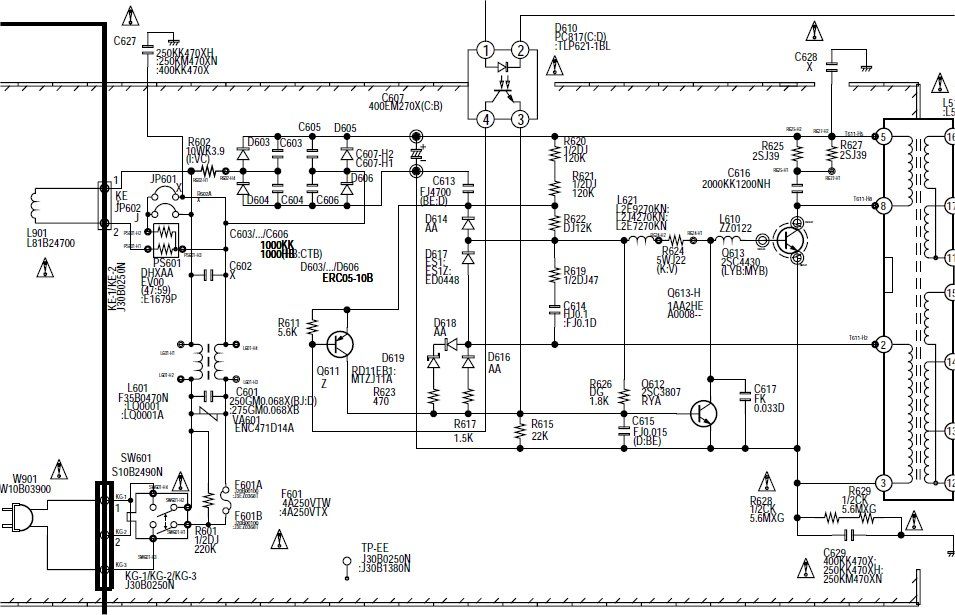

Sanyo Chassis FC1-B
