schematic and parts of 1 peso coin dispenser

Post by bjohn7908 on Sat Sep 15, 2012 9:35 pm

mga master pahingi nman ng schematic or parts of 1 peso coin dispenser. plss..
avatar
bjohn7908
AA Battery
AA Battery

Posts : 61
Join date : 2012-08-02
Location : leyte

Back to top Go down

Re: schematic and parts of 1 peso coin dispenser

Post by Digitap on Sun Sep 16, 2012 6:03 pm


coinslot
timer
water pump (solenoid)
faucet
hose
avatar
Digitap
Admin
Admin

Posts : 895
Join date : 2010-09-03
Age : 26
Location : Makati City

Back to top Go down

Re: schematic and parts of 1 peso coin dispenser

Post by bjohn7908 on Sun Sep 16, 2012 7:20 pm

ok maraming salamat master, one point po kayo
avatar
bjohn7908
AA Battery
AA Battery

Posts : 61
Join date : 2012-08-02
Location : leyte

Back to top Go down

Re: schematic and parts of 1 peso coin dispenser

Post by Digitap on Sun Sep 16, 2012 7:46 pm


salamat sa point Razz

tungkol po sa diagram subukan ko pong iguhit
meron din thread dito na related sa querry niyo

http://aelexian.4rumer.com/t227-advice-nmn-regarding-automated-water-despencer

avatar
Digitap
Admin
Admin

Posts : 895
Join date : 2010-09-03
Age : 26
Location : Makati City

Back to top Go down

Re: schematic and parts of 1 peso coin dispenser

Post by ultrasonicâ„¢ on Mon Sep 17, 2012 12:51 pm

^ naalala ko tuloy past few years na mhirap mghanap ng solenoid valve pra sa ganitong application (ATM).... pnahirapan pa kami... lalo na png low pressure type.. hahaizzz... @ts if nasa davao ka.. my available na ngyon sa E.market. 280petot sa midland electronics..


_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying
avatar
ultrasonicâ„¢
D Battery
D Battery

Posts : 4362
Join date : 2010-08-19
Age : 31
Location : Davao City

Back to top Go down

Re: schematic and parts of 1 peso coin dispenser

Post by Digitap on Mon Sep 17, 2012 7:03 pm


bj diy ba ang gustong mong diagram?
avatar
Digitap
Admin
Admin

Posts : 895
Join date : 2010-09-03
Age : 26
Location : Makati City

Back to top Go down

Re: schematic and parts of 1 peso coin dispenser

Post by bjohn7908 on Mon Sep 24, 2012 7:59 pm

hmm kahit ano po master basta madaling maiintindihan. Smile
avatar
bjohn7908
AA Battery
AA Battery

Posts : 61
Join date : 2012-08-02
Location : leyte

Back to top Go down

Re: schematic and parts of 1 peso coin dispenser

Post by Digitap on Tue Oct 02, 2012 12:21 pm

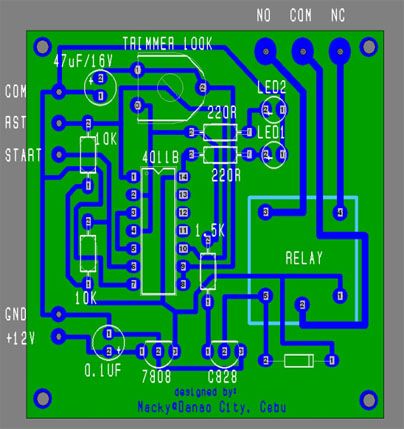

ito na lang kuya. galing pa sa elab



daan niyo sa relay ang water pump.
start, reset, com ay para sa coinslot
trimmer ang time setting.

avatar
Digitap
Admin
Admin

Posts : 895
Join date : 2010-09-03
Age : 26
Location : Makati City

Back to top Go down

Re: schematic and parts of 1 peso coin dispenser

Post by DJFEL on Mon Nov 11, 2013 12:39 pm

555 ang ginamet ko neto..
avatar
DJFEL
D Battery
D Battery

Posts : 1779
Join date : 2012-11-21
Age : 35
Location : SIUIJOR

Back to top Go down

Re: schematic and parts of 1 peso coin dispenser
