Re: FBT pin configuration

Post by Hertz on Thu Jun 30, 2016 1:48 pm

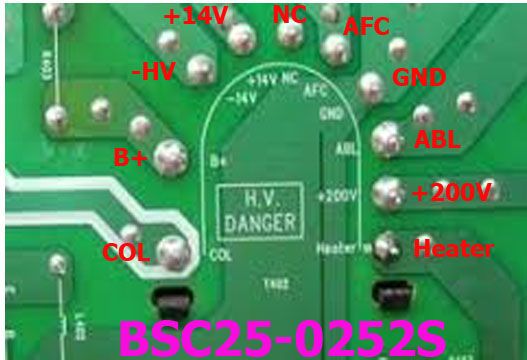

BS25C-0252S

pin1 = COL
pin2 = B+
pin3 = -14V
pin4 = +14V
pin5 = NC
pin6 = AFC
pin7 = GND
pin8 = ABL
pin9 = 200V
pin10= HEATER

_________________
3rd member of STTM
former 4th member
avatar
Hertz
Admin
Admin

Posts : 1575
Join date : 2010-08-12
Age : 38
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Thu Nov 17, 2016 2:40 pm

SANYO
ST-21SS1KS
Chasiss AC8A


image courtesy of Sis Hengilbert Lubang

B4L40B07800
B4L40B09500
BS26C-2638S


pin1 = COL
pin2 = B+
pin3 = low B
pin4 = Video
pin5 = FBP
pin6 = NC
pin7 = ABL
pin8 = NC
pin9 = HEATER
pin10= GND

_________________
6th member of STTM
former 2nd member

im always walking on the rain so that no one could see me crying
avatar
ultrasonic™
D Battery
D Battery

Posts : 4420
Join date : 2010-08-19
Age : 32
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by geof79 on Thu Jun 28, 2018 12:25 am

Need ko lng part # fbt ng sanyo ST-21SS1S. Tnx sa mgre2ply.
avatar
geof79
D Battery
D Battery

Posts : 337
Join date : 2015-05-30
Age : 39
Location : Cam. Norte

Back to top Go down

Re: FBT pin configuration

Post by geof79 on Thu Jun 28, 2018 1:37 pm

Ah i2 na pla post ni sir ultra. Chassis AC8A kc i2. Ask ko nlng kung kht alin dun sa 3 same na swak d2?
avatar
geof79
D Battery
D Battery

Posts : 337
Join date : 2015-05-30
Age : 39
Location : Cam. Norte

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Fri Jun 29, 2018 8:56 pm

swak iyan

_________________
3rd member of STTM
former 4th member
avatar
Hertz
Admin
Admin

Posts : 1575
Join date : 2010-08-12
Age : 38
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by geof79 on Fri Jun 29, 2018 9:14 pm

Slamat sir hertz.
avatar
geof79
D Battery
D Battery

Posts : 337
Join date : 2015-05-30
Age : 39
Location : Cam. Norte

Back to top Go down
