Re: FBT pin configuration

Post by Hertz on Fri Jan 31, 2014 1:18 pm

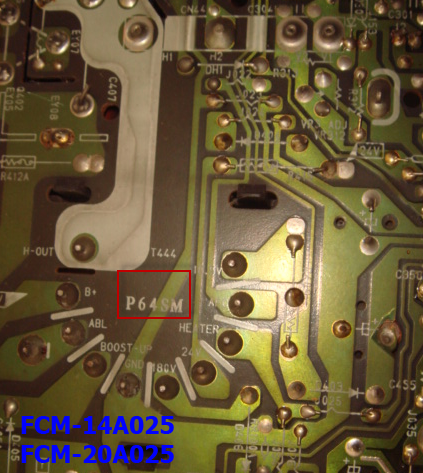

Samsung
Chassis P64SH




FCM-14A025
FCM-20A025


pin1  = 16.5
pin2  = AFC
pin3  = HEATER
pin4  = 24V
pin5  = 180V
pin6  = GND
pin7  = BOOST-UP
pin8  = ABL
pin9  = B+
pin10 = H-OUT

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Fri Jan 31, 2014 1:39 pm

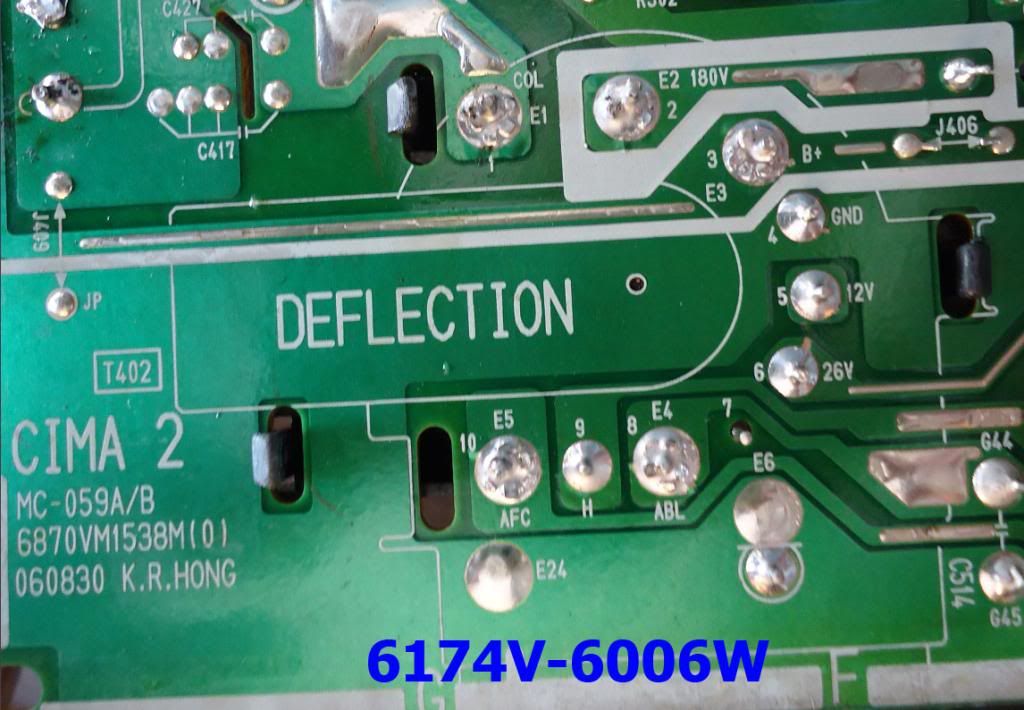

LG 21FB5RL
Chassis MC-059A/B




6174V-6006W

pin1  = COL
pin2  = 180V
pin3  = B+
pin4  = GND
pin5  = 12V
pin6  = 26V
pin7  = NC
pin8  = ABL
pin9  = H
pin10 = AFC

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Fri Jan 31, 2014 1:49 pm

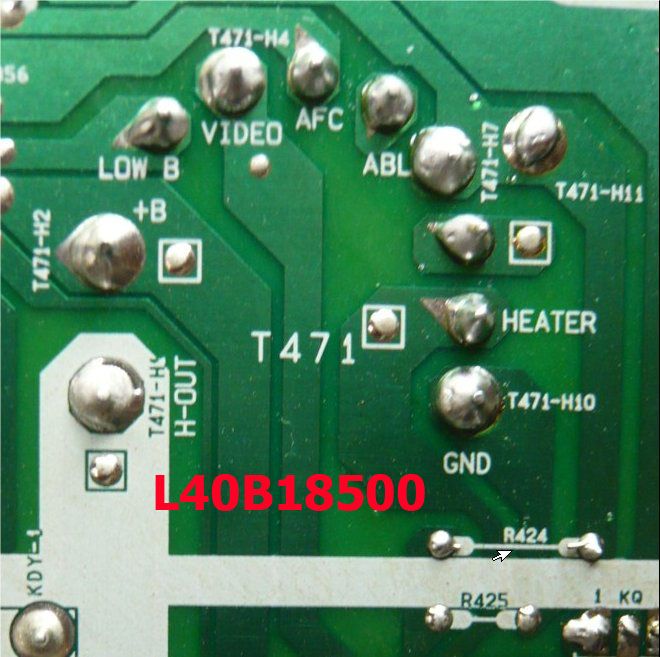

SANYO
CT21CF1

Chassis AC6-A




L40B18500


pin1  = H-OUT
pin2  = +B
pin3  = low B
pin4  = VIDEO
pin5  = AFC
pin6  = NC
pin7  = ABL
pin8  = NC
pin9  = HEATER
pin10 = GND













SANYO CE21SE1
Chassis АС6А1





BSC26-2639S


pin1  = H-OUT
pin2  = +B
pin3  = low B
pin4  = VIDEO
pin5  = AFC
pin6  = NC
pin7  = ABL
pin8  = NC
pin9  = HEATER
pin10 = GND


Last edited by Hertz on Tue Mar 04, 2014 2:38 pm; edited 1 time in total

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Tue Mar 04, 2014 2:12 pm

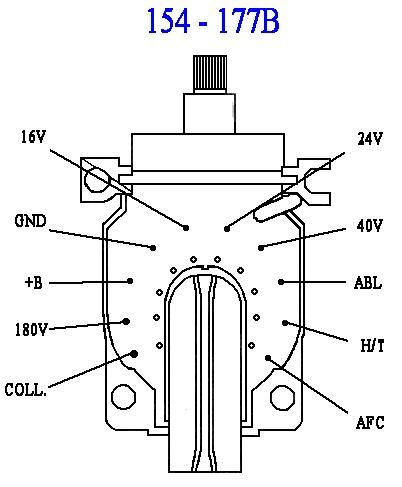

154-177B


pin1  = COL

pin2  = 180V
pin3  = +B
pin4  = GND
pin5  = 16V
pin6  = 24V
pin7  = 40V
pin8  = ABL
pin9  = H/T
pin10 = AFC

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Tue Mar 04, 2014 2:32 pm



LG CT-21Q65KE






6174V-6006E
BSC23-N02107
BSC25-3373
6174Z-6040C
HR8656
HR80033


pin1  = COL
pin2  = 185V
pin3  = B+
pin4  = GND
pin5  = -14V
pin6  = +14V
pin7  = GND
pin8  = ABL
pin9  = H/T
pin10 = AFC

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Tue Mar 04, 2014 2:44 pm

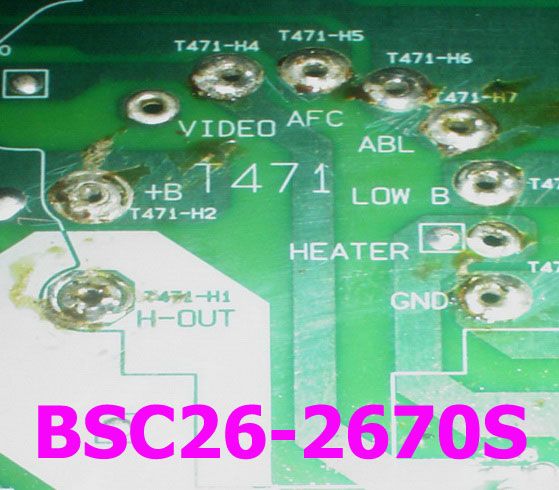

BSC26-2670S

pin1  = H-OUT
pin2  = +B
pin3  = NC
pin4  = VIDEO
pin5  = AFC
pin6  = GND
pin7  = ABL
pin8  = low B
pin9  = HEATER
pin10 = GND

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Tue Mar 04, 2014 2:51 pm

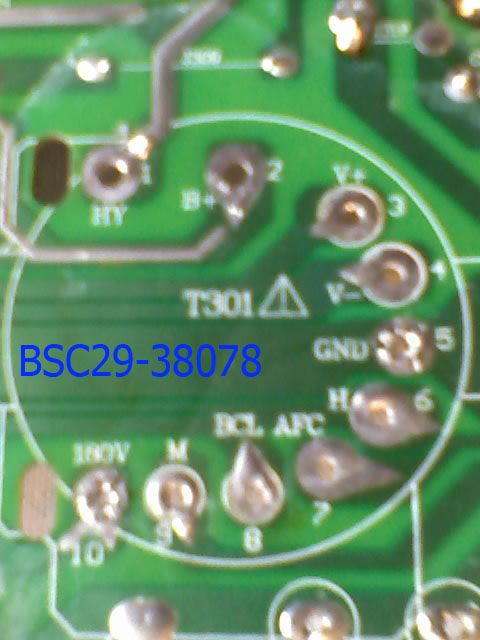

BSC29-38078


pin1  = HV
pin2  = B+
pin3  = V+
pin4  = V-
pin5  = GND
pin6  = H
pin7  = AFC
pin8  = BCL
pin9  = M
pin10 = 180V

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Tue Mar 04, 2014 3:01 pm

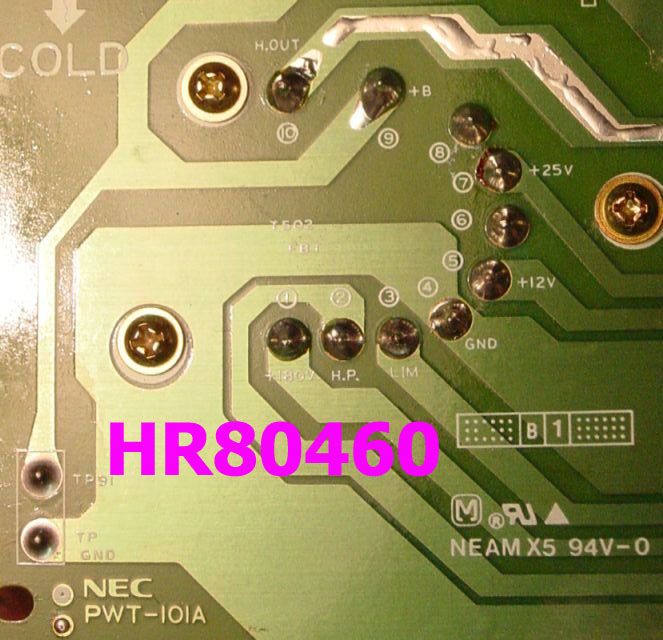

NEC CT2051SK
Chassis PWT-101A






HR80460

pin1  = 180V
pin2  = H.P
pin3  = LIM
pin4  = GND
pin5  = +12V
pin6  = N.C
pin7  = +25V
pin8  = N.C
pin9  = +B
pin10 = H-OUT

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Sat Mar 22, 2014 7:52 pm

oie tnx hertz.. +1 ka sakin

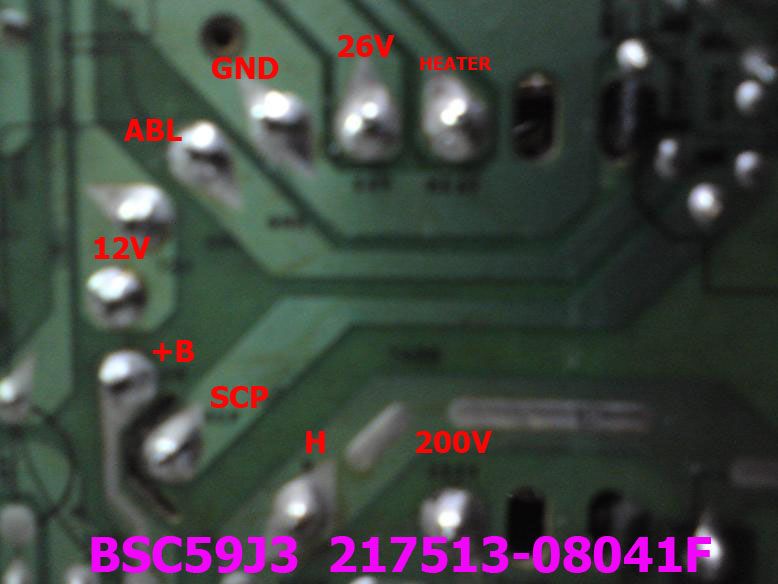

Changhong
PF21A01PH

Chassis CHQL




BSC59J3 217513-08041F


pin1  = 200V
pin2  = H / COL
pin3  = SCP
pin4  = +B
pin5  = 12V
pin6  = 12V
pin7  = ABL
pin8  = GND
pin9  = 26V
pin10 = Heater

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Wed May 14, 2014 4:56 pm

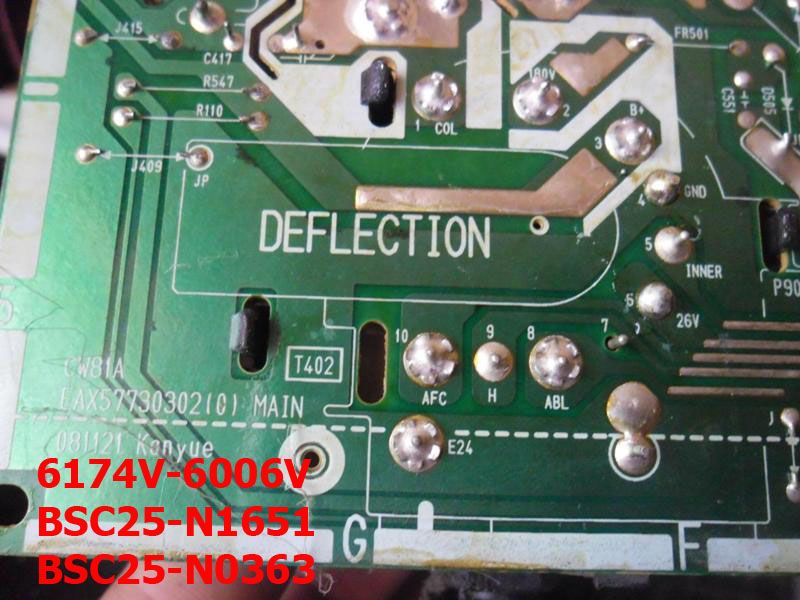

LG Ultra SLim


LG-21FS4RL
LG-21FU1LR
Chassis CW81A





6174V-6006V

BSC25-N1651

BSC25-N0363



pin1  = COL
pin2  = 180V
pin3  = B+
pin4  = GND
pin5  = INNER
pin6  = 26V
pin7  = N.C
pin8  = ABL
pin9  = H
pin10 = AFC

pin11 = D-Focus
pin12 = D-Focus




Chassis CW82B


6174V-6006V
BSC24-3366J
BSC25-N1651
BSC25-N0363



image courtesy of Sis alvinquimbo

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Sat Jun 07, 2014 1:31 pm

post na rin natin to dito....

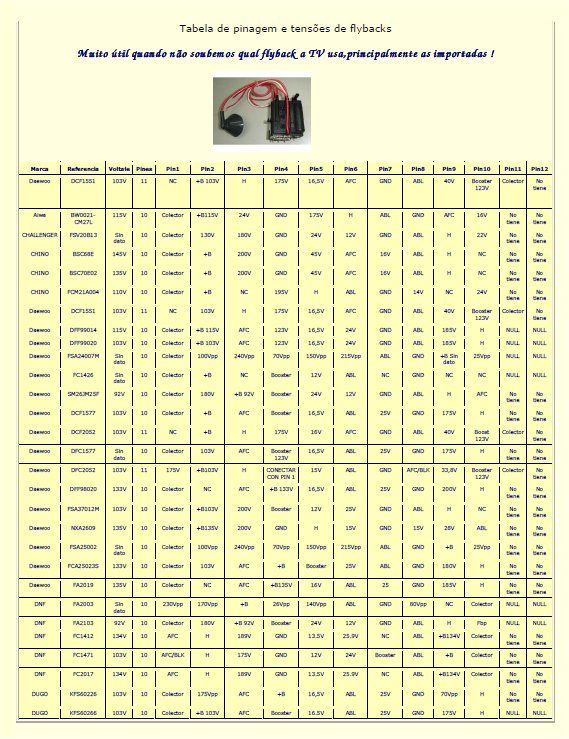

mga FBT list....   ^_^

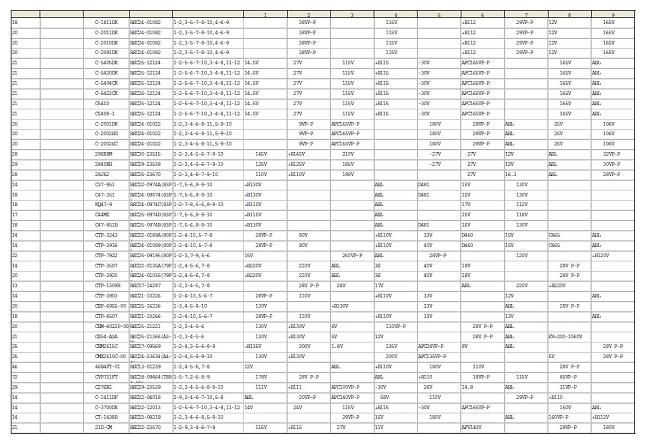

eto nmn ang mga BSCxxx Series


_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by DJFEL on Sun Jun 08, 2014 1:30 pm

nice updit..

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: FBT pin configuration

Post by Oscar on Mon Jun 09, 2014 1:18 pm

salamat nito master  Crying or Very sad

Oscar
C Battery
C Battery

Posts : 279
Join date : 2010-09-22

Back to top Go down

Re: FBT pin configuration

Post by toks_0620 on Tue Oct 21, 2014 9:29 pm

mga master wala po ba kayong pin configuration ng FBT ng sa mga philips na tv?? pahingi naman ako salamat yung para sa mga slim type..

toks_0620
AAA Battery
AAA Battery

Posts : 17
Join date : 2012-08-10
Age : 25
Location : isulan s.k

Back to top Go down

Re: FBT pin configuration

Post by Electro on Fri Oct 31, 2014 10:53 am

ito master. baka makatulong JF0501-19255 at JF0501-19276
pin1-col, pin2-B+, pin3-nc, pin4-12v, pin5-ht, pin6-nc, pin7-gnd, pin8--12v, pin9-180v, pin10-abl

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: FBT pin configuration

Post by DJFEL on Mon Nov 24, 2014 9:03 am

nice one..

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: FBT pin configuration

Post by toks_0620 on Tue Jan 20, 2015 10:00 pm

salamat poh mga master..

toks_0620
AAA Battery
AAA Battery

Posts : 17
Join date : 2012-08-10
Age : 25
Location : isulan s.k

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Thu May 21, 2015 12:46 pm

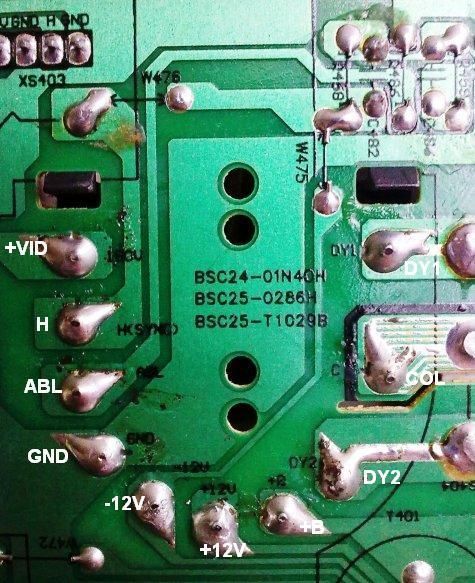

BSC24-01N40H
BSC25-0286H
BSC25-T1029B


pin1 - DY1
pin2 - C
pin3 - DY2
pin4 - B+
pin5 - +12V
pin6 - -12V
pin7 - GND
pin8 - ABL
pin9 - H
pin10- 180V

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Thu May 21, 2015 12:56 pm

LG Chassis MC-049A




BSC25-N1537
BSC28-2334
6174V-5003L
6174V-5003R



pin1 = COL
pin2 = B+
pin3 = +14V
pin4 = -14V
pin5 = 200V
pin6 = GND
pin7 = NC
pin8 = 28V
pin9 = ABL
pin10= HT


_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Fri Feb 05, 2016 5:45 pm

.

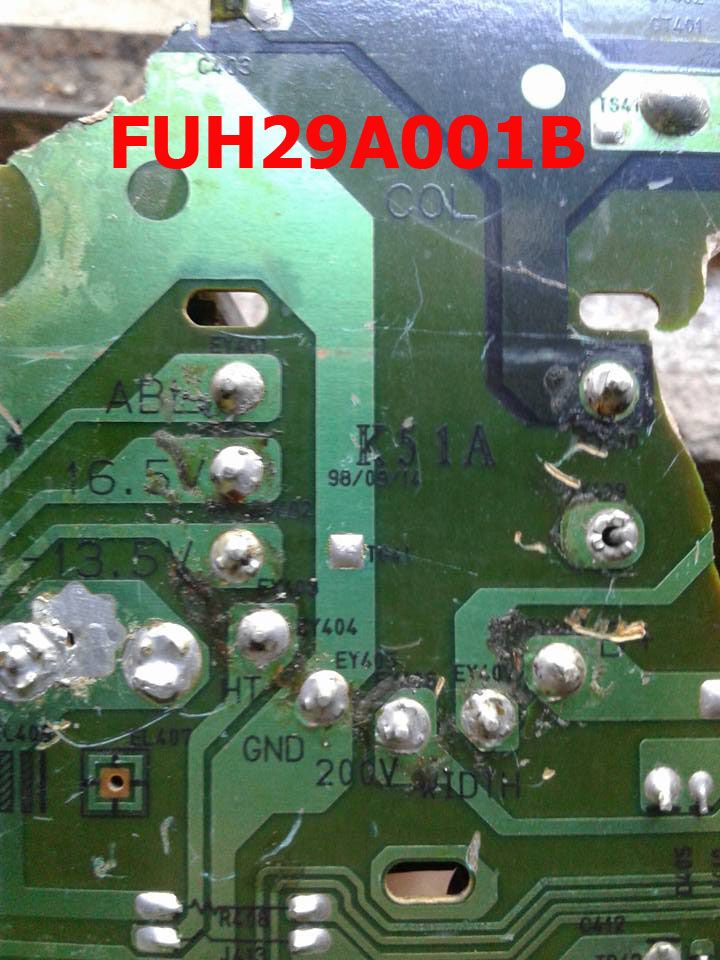

Samsung TV
Chassis K51A


image courtesy of Sis Rhon Catindig


FUH29A001B


pin1 = COL
pin2 = NC
pin3 = B+
pin4 = WIDTH
pin5 = 200V
pin6 = GND
pin7 = Heater
pin8 = -13.5V
pin9 = +16.5V
pin10=ABL

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Mon Feb 29, 2016 1:44 pm

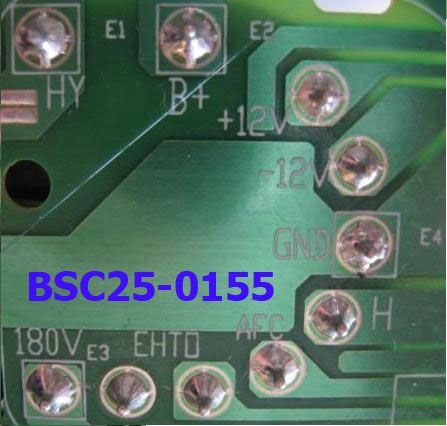

BSC25-0155

pin1 = HY / COL
pin2 = B+
pin3 = +12V
pin4 = -12V
pin5 =GND
pin6 = H
pin7 = AFC
pin8 = EHTO
pin9 = N.C

pin10=180V

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Thu May 19, 2016 5:03 pm

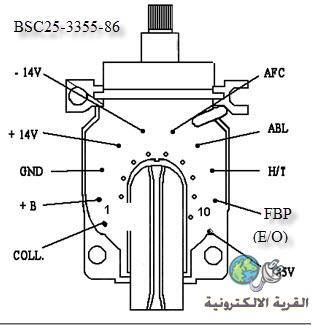

BSC25-3355-86


pin1 = COL
pin2 = B+
pin3 = GND
pin4 = +14V
pin5 = -14V
pin6 = AFC
pin7 = ABL
pin8 = H/T
pin9 =
FBP (E/O)
pin10=180V

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Thu May 19, 2016 5:12 pm

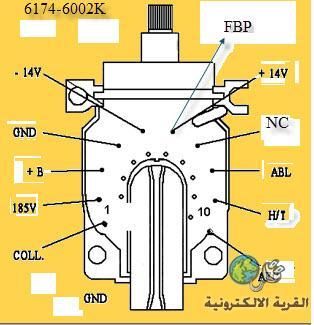

6174V-6002K

pin1 = COL
pin2 = 180V
pin3 = B+
pin4 = GND
pin5 = -14V
pin6 = +14V
pin7 = NC
pin8 = ABL
pin9 =
HT
pin10= AFC

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Thu May 19, 2016 5:28 pm

Samsung Chassis KS2A



FUH29A001
FUH29A002


pin1 = COL
pin2 = NC / 600V

pin3 = B+ / 130V
pin4 = NC
pin5 = 200V
pin6 = GND
pin7 = HEATER
pin8 = -16.5V
pin9 =
+16.5V
pin10= ABL

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Thu Jun 30, 2016 12:38 pm

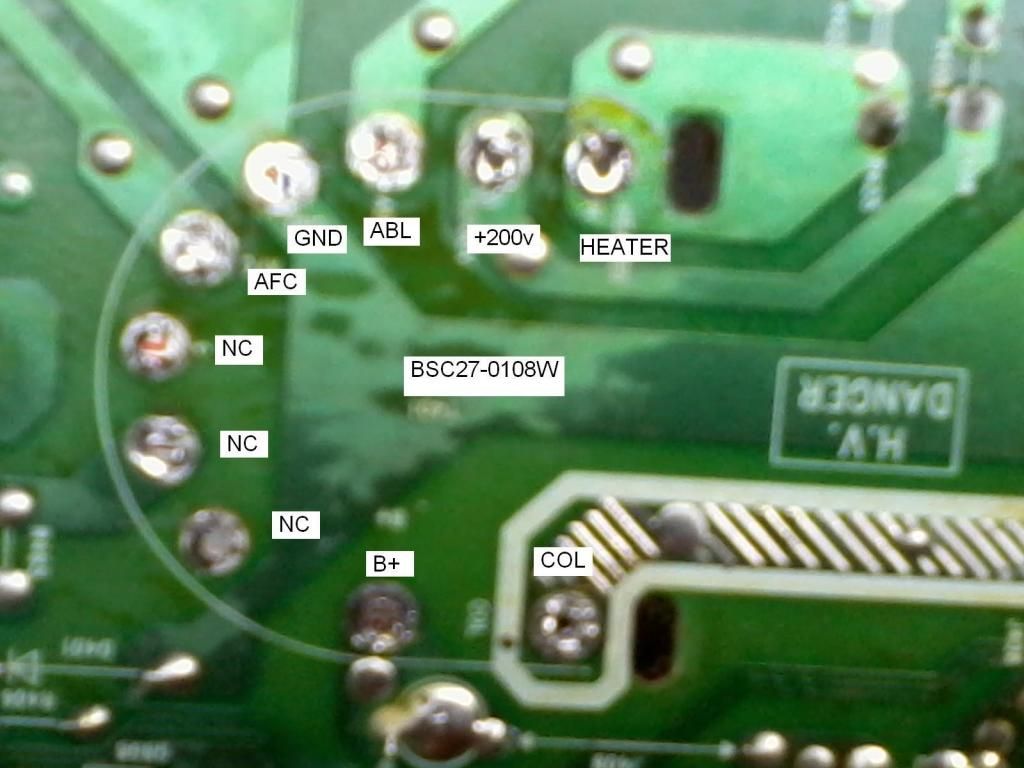

TCL 21H91US



BSC27-0108W

pin1 = COL

pin2 = B+
pin3 = NC
pin4 = NC
pin5 = NC
pin6 = AFC
pin7 = GND

pin8 = ABL
pin9 = 200V
pin10= HEATER

courtesy of Roger37 in elab


Last edited by Hertz on Thu Jun 30, 2016 1:52 pm; edited 1 time in total

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Sponsored content Today at 5:47 am


Sponsored content


Back to top Go down

Page 2 of 3 Previous  1, 2, 3  Next

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
