FBT pin configuration

Post by ultrasonic™ on Sat Aug 25, 2012 12:56 pm

post ko din ito dito..  para may guidelines din tau...
same with elab... mga datasheet pins ng flybak

simulan ko na sa LG TV's

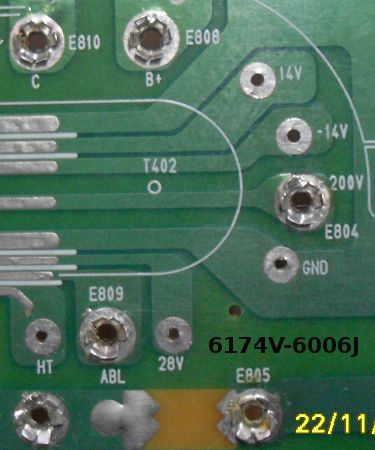

6174V-6006J

pin1  = COL
pin2  = B+
pin3  = +14V
pin4  = -14V
pin5  = 200V
pin6  = GND
pin7  = N.C
pin8  = 28V
pin9  = ABL
pin10 = HT / heater


pin11 = D-Focus
pin12 = D-Focus

share share tau  (^_^


Last edited by ultrasonic™ on Sat Aug 25, 2012 1:08 pm; edited 2 times in total

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Sat Aug 25, 2012 1:06 pm

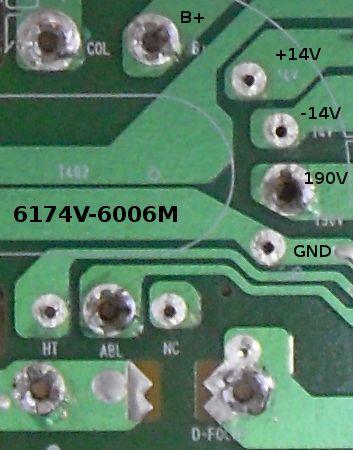

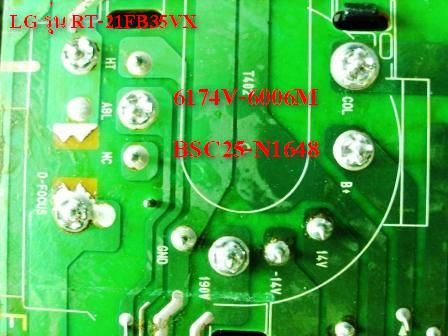

6174V-6006M

pin1  = COL
pin2  = B+
pin3  = +14V
pin4  = -14V
pin5  = 190V
pin6  = GND
pin7  = N.C
pin8  = N.C
pin9  = ABL
pin10= HT / Heater

pin11 = D-Focus
pin12 = D-Focus



BSC25-N1648

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by DJFEL on Mon Dec 03, 2012 4:00 pm

# PIN & FBT #...post ako dito f my time..

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Wed Feb 20, 2013 1:32 pm

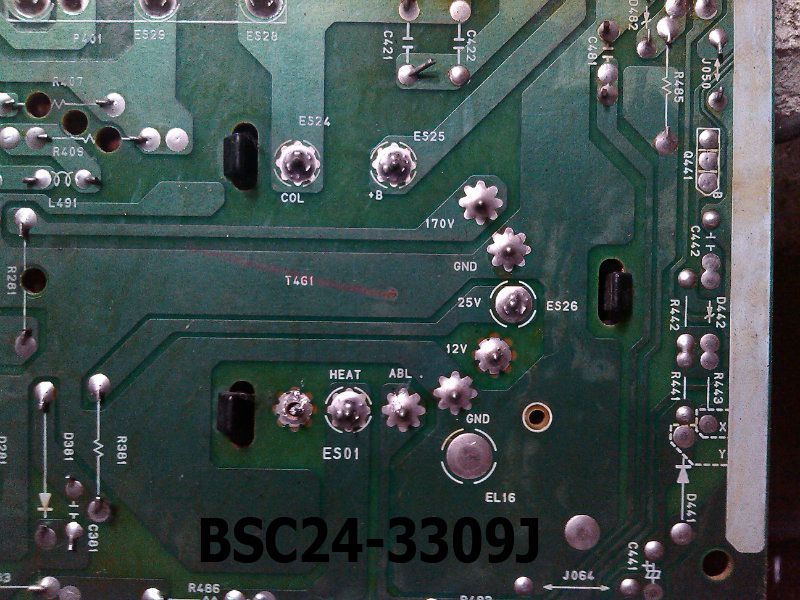

Minami MT-1401



BSC24-3309J

pin1 = COL
pin2 = B+
pin3 = 170V
pin4 = GND
pin5 = 25V
pin6 = 12V
pin7 = GND
pin8 = ABL
pin9 = Heater
pin10= NC


______________________________________________

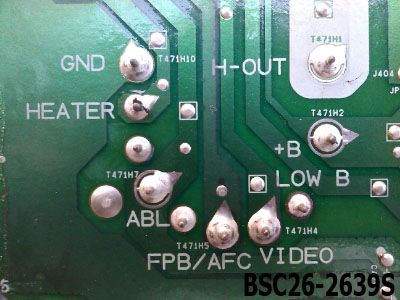

Sanyo
Chassis AC7A



BSC26-2639S

pin1 = COL
pin2 = B+
pin3 = NC
pin4 = Video
pin5 = FBP / AFC
pin6 = NC
pin7 = ABL
pin8 = NC
pin9 = Heater
pin10= GND


______________________________________________

courtesy of sis Disabled ng elab (^_^


Last edited by ultrasonic™ on Wed Feb 20, 2013 5:24 pm; edited 1 time in total

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Wed Feb 20, 2013 5:05 pm

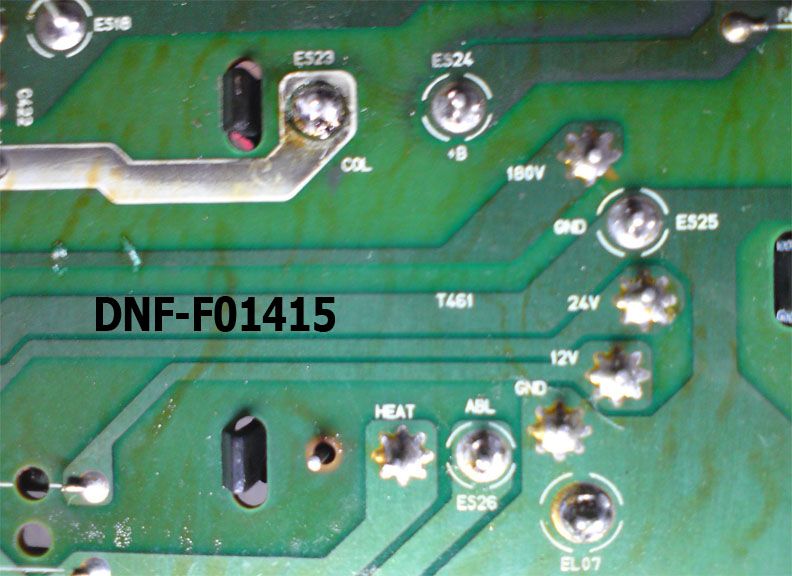

Kolin
KC-14NS3
chassis PTUM01




DNF-F01415

pin1 = COL
pin2 = B+
pin3 = 180V
pin4 = GND
pin5 = 24V
pin6 = 12V
pin7 = GND
pin8 = ABL
pin9 = Heater
pin10= NC
pin11= D/Focus

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Fri Jul 05, 2013 7:11 pm

up ko lng...
courtesy of sis Min ng Elab

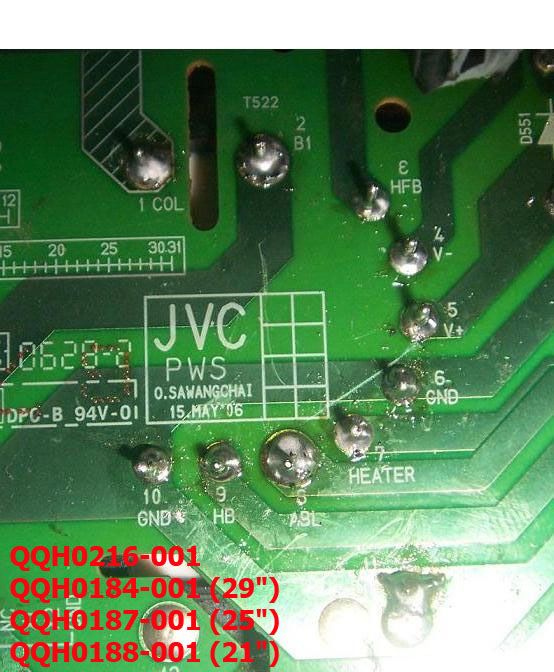

JVC





QQH0216-001

QQH0184-001 (29")
QQH0187-001 (25")
QQH0188-001 (21")




pin1 = COL
pin2 = B1
pin3 = HFB
pin4 = V-
pin5 = V+
pin6 = GND
pin7 = Heater
pin8 = ABL
pin9 = HB
pin10= GND
pin11= D/Focus


_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by plong on Fri Jul 05, 2013 7:16 pm

malaking tulong po e2 mga master thanks sis ultra...may mga bagong guidelines about FBT configuration...

plong
AA Battery
AA Battery

Posts : 51
Join date : 2011-11-09
Age : 36
Location : Camarines sur

http://jan_plong27@yahoo.com

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Tue Jul 09, 2013 7:02 pm

Sanyo
ST-14G1
Chassis AC5G



L40B17100
L40B15300


pin1  = H-out / COL
pin2  = +B
pin3  = LOW B
pin4  = VIDEO
pin5  = AFC
pin6  = GND
pin7  = ABL
pin8  = N.C
pin9  = HEATER
pin10 = GND
pin11 = D/FOCUS

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by Ahmadiloz on Mon Jul 29, 2013 5:14 am

anu po ang ibig sabihin nung ABL at AFC?scratch thinking

Ahmadiloz
C Battery
C Battery

Posts : 169
Join date : 2013-07-25
Age : 24
Location : cebu

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Mon Jul 29, 2013 4:22 pm

ABL - automatic Brightness Limiter
AFC - automatic frequency control

yan ang mga pin ng FBT na mgpoproduce ng supply para sa mga section na yan

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Mon Sep 09, 2013 7:18 pm

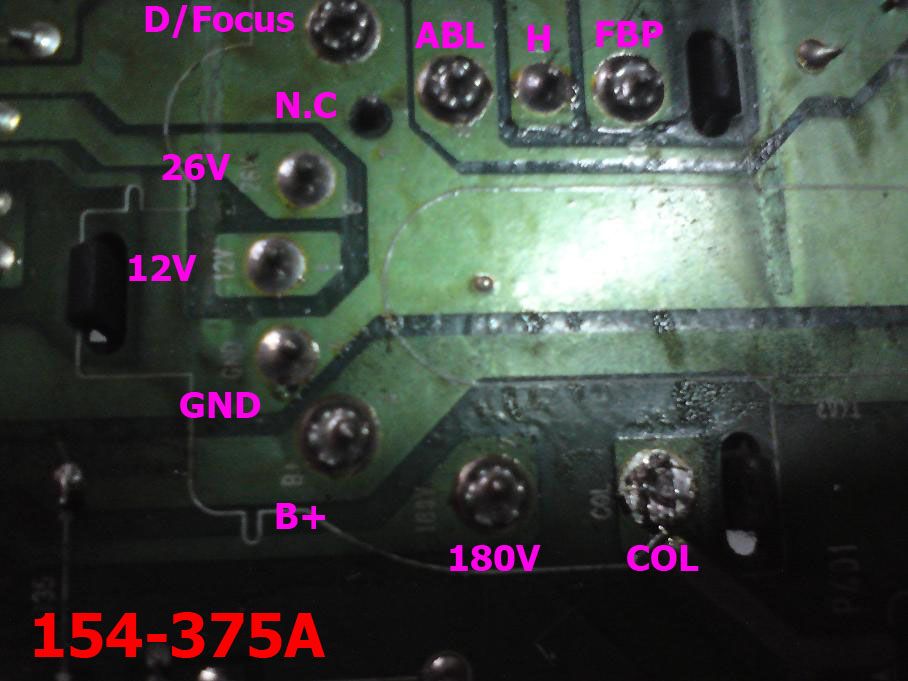

LG
Chassis NC-7DA



154-375A

pin1 = COL
pin2 = 180V
pin3 = GND
pin4 = B+
pin5 = 12V
pin6 = 26V
pin7 = N.C
pin8 = ABL
pin9 = Heater
pin10= FBP
pin11= D/Focus

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Wed Sep 11, 2013 12:10 pm

puede bang ganito ang post dito sir?


KONKA
K1418C/3




BSC25-2066S

pin1 = H out
pin2 = 180V
pin3 = B+
pin4 = GND
pin5 = AFC
pin6 = 16V
pin7 = ABL
pin8 = HT
pin9 = NC
pin10= NC

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Wed Sep 11, 2013 12:20 pm

LG
CF-21D79
Chassis MC-994A




BSC25-0561

pin1 = COL
pin2 = 180V
pin3 = B+
pin4 = GND
pin5 = NC
pin6 = 24V
pin7 = GND
pin8 = ABL
pin9 = Heater
pin10= AFC

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Thu Sep 12, 2013 11:56 am

^ ai gusto ko sana actual pin ng mga lipad likod   wanafight


jejejejeje pero ok na rin yan... +1  ka sakin

regarding nga pala sa BSC25-0561.. pwde pang replace jan ang 6174V-8008A sa ganyang chassis

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Tue Sep 24, 2013 3:24 pm

Samsung
Chassis KSBH




BSC25-0218N

pin1 - COL
pin2 - N.C
pin3 - 120V
pin4 - N.C
pin5 - 200V
pin6 - GND
pin7 - HT
pin8 - -16.5V
pin9 - +16.5V
pin10 - ABL

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Tue Sep 24, 2013 3:55 pm


MATRIX
MX-TVS1414A




BSC26-T1010

pin1 - C1
pin2 - COL
pin3 - C2
pin4 - B+
pin5 - C3
pin6 - C4
pin7 - GND
pin8 - H (sync)
pin9 - ABL
pin10 - 180V

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Fri Sep 27, 2013 7:12 pm

ultrasonic™ wrote:^ ai gusto ko sana actual pin ng mga lipad likod   wanafight


jejejejeje pero ok na rin yan... +1  ka sakin

regarding nga pala sa BSC25-0561.. pwde pang replace jan ang 6174V-8008A sa ganyang chassis
salamat sa point sir.

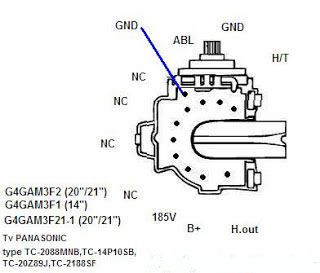

PANASONIC
TC-2088MNB
TC-14P10SB
TC-20Z89J
TC-2188SF




G4GAM3F2 (20"/21")
G4GAM3F1 (14")
G4GAM3F21-1 (20"/21")


pin1  -  H.out
pin2  -  B+
pin3  - 185v
pin4  - NC
pin5  - NC
pin6  - NC
pin7  - NC
pin8  - ABL
pin9  - GND
pin10- H/T
pin11-GND

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Fri Sep 27, 2013 7:22 pm

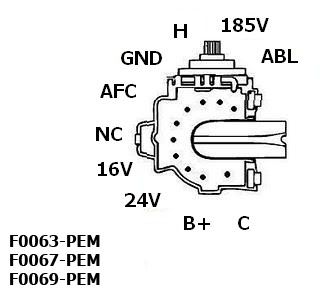

SHARP



F0063-PEM
F0067-PEM
F0069-PEM



pin1 - Col
pin2 - B+
pin3 - 24V
pin4 - 16V
pin5 - NC
pin6 - AFC
pin7 - GND
pin8 - H
pin9 - 185V
pin10-ABL

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Fri Sep 27, 2013 7:29 pm

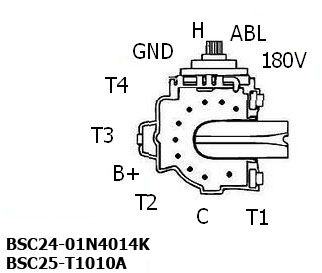

CHINA TV






BSC24-01N4014K
BSC25-T1010A

pin1 - T1
pin2 - C
pin3 - T2
pin4 - B+
pin5 -T3
pin6 -T4
pin7 - GND
pin8 - H
pin9 - ABL
pin10- 180V

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Fri Dec 06, 2013 11:35 am

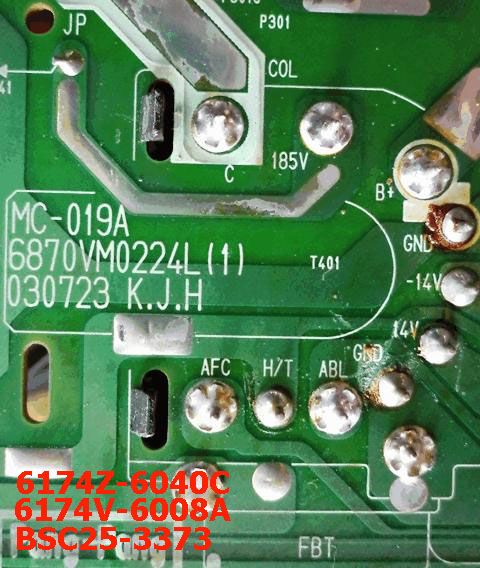

LG
Chassis MC-019A




6174Z-6040C
6174V-6008A
BSC25-3373



pin1 = COL
pin2 = 185V
pin3 = B+
pin4 = GND
pin5 = -14V
pin6 = +14V
pin7 = GND
pin8 = ABL
pin9 = H/T
pin10=AFC

pin11 = D-Focus
pin12 = D-Focus

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Fri Dec 06, 2013 12:04 pm

CT25H36EN
Chassis 007A




6174Z-6012Q

pin1 = COL
pin2 = B+
pin3 = +14V
pin4 = -14V
pin5 = 200V
pin6 = GND
pin7 = N.C
pin8 = 28V
pin9 = ABL
pin10=HT

pin11 = D-Focus
pin12 = D-Focus

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Fri Dec 06, 2013 12:12 pm

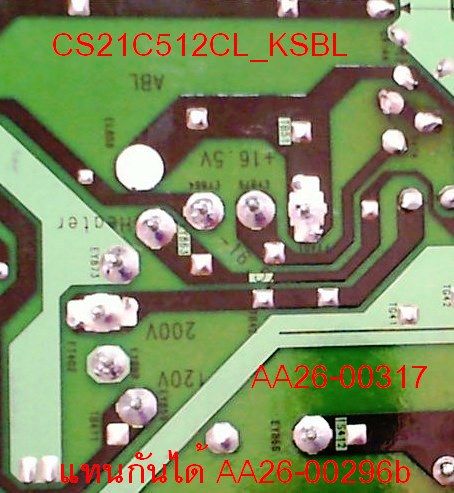

CS21C512CL
chassis KSBL





AA26-00317
AA26-00296B


pin1 = COL

pin2 = NC
pin3 = 120V
pin4 = NC
pin5 = 200V
pin6 = GND
pin7 = Heater
pin8 = -16.5V
pin9 = +16.5V
pin10=ABL

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by ultrasonic™ on Sat Dec 07, 2013 5:52 pm

oie nyc hertz.... +1 ka sakin.. keep it up
share ako ng isa



Samsung
Korean Surplus using STR5412
Chassis K-53




FCM-1411L01

pin1 = 16.5V
pin2 = F/S
pin3 = HEAT
pin4 = 24V
pin5 = 175V
pin6 = GND
pin7 = B+
pin8 = ABL
pin9 = BOOST
pin10=COL

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Sat Jan 25, 2014 2:41 pm

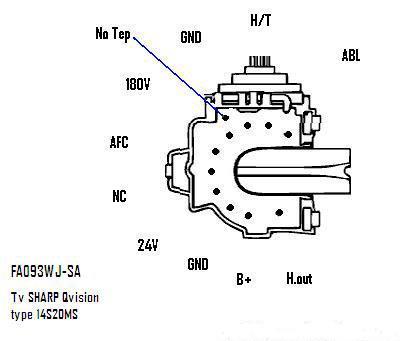

SHARP
14S20MS





FA093WJ-SA


pin1 = H out
pin2 = B+
pin3 = GND
pin4 = 24V
pin5 = NC
pin6 = AFC
pin7 = 180V
pin8 = GND
pin9 = H/T
pin10= ABL


Last edited by Hertz on Sat Jan 25, 2014 2:53 pm; edited 1 time in total

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Hertz on Sat Jan 25, 2014 2:53 pm



SHARP
14S200





FA122WJ-B
BSC26-2631S



pin1 = H out
pin2 = B+
pin3 = GND
pin4 = 24V
pin5 = NC
pin6 = AFC
pin7 = 180V
pin8 = GND
pin9 = H/T
pin10= ABL

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: FBT pin configuration

Post by Sponsored content Today at 5:48 am


Sponsored content


Back to top Go down

Page 1 of 3 1, 2, 3  Next

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
