Re: sony sterio model: hcd g100k no sound

Post by ultrasonic™ on Mon Sep 24, 2012 1:36 pm

pg tumunog yan ay nagpoprotect ang unit.. check for possible reasons na pg aactivate ng protection...

pg di nmn tumunog ay focus on amp section... lalo na ang sound ic.. "STK4152II"
check mung maiigi ang supply nya.. base nlng muna tau sa datasheet nya.. kng buo ba lhat at hndi nka mute
check mu na din ang mga resistor nato kasi lagi yang nsisira


sunod mu nmn ang tranny mlapit sa ic


_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by mannydioneda on Mon Sep 24, 2012 10:06 pm

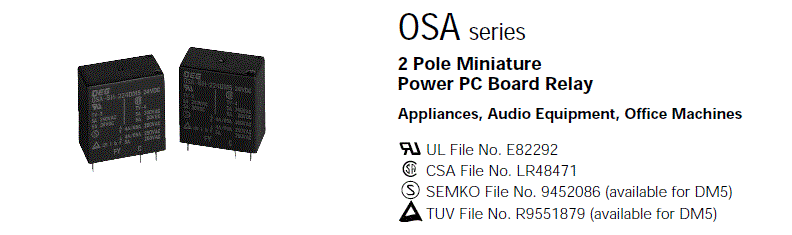

master ganito yung relay ko.. 6 pin lang..

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by ultrasonic™ on Tue Sep 25, 2012 12:02 pm

ah dual spst lng pala yan sis.. pwde ng di na tnggalin sa board iyang relay mu kng mgba bypass lang... ipag short mu lng ang mgkbilang side. "red lines sa sample picx"



uu nga pla sis.. safety precaution tau lagi.. wag munang ikabit ang spkr. monitor muna sa ac voltmeter ang output ng amplfier sect mu. set mu sa ac 50v (red) ang multitester. dpat nag vivibrate ang pointer "gumagalaw" interms na normal ang running nya... pg super steady nmn.. both ac & dc voltmter. wag na wag mung ikakabit ang spkr baka masunog.. bka kasi my DC out ang Amplifier section mu.. kya di gumagana ang relay na bnabanggit natin sa taas "ngpoprotect"...

pa ot: psenxa na sa drawing (^_^

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by mannydioneda on Tue Sep 25, 2012 1:08 pm

master saan ko susukatin yung output ng amplifier sect? pasensya na talagang nag-aaral pa lang first time ko to...thanks

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by ultrasonic™ on Tue Sep 25, 2012 1:39 pm

pwde sa mismung terminal wire clip ng speaker


bastat na e-jumper na ang relay

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by arkin on Tue Sep 25, 2012 4:37 pm

sugestion lng:tap mo nlng diritso yong + wire ng spekr sa amp side.[hawak mode lng Very Happy ]posible kc msunog yong speker mo f defective ang amp mo. aware pra mas mdli mong mkuha yong wire ng speker incase nag hum,indication na sira ang amp. pointout

arkin
D Battery
D Battery

Posts : 425
Join date : 2011-12-02

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by mannydioneda on Tue Sep 25, 2012 7:14 pm



na short ko na yung relay master..

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by mannydioneda on Tue Sep 25, 2012 7:16 pm



wala akong nasukat na voltage sa speaker..

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by danny on Sat Sep 29, 2012 12:49 pm

sorry sa lahat
i was very busy this past few weeks
bigay nyo sa akin ang email add nyo para ma email ko
sa inyo ang mapa

again, sensiya na talga

danny
D Battery
D Battery

Posts : 397
Join date : 2012-04-16
Location : Seattle, Washington

http://www.washingtonelec.com

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by mannydioneda on Mon Oct 01, 2012 9:24 am

Sir Danny na i PM ko na email add ko..Thanks

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by ultrasonic™ on Mon Oct 01, 2012 7:37 pm

mannydioneda wrote:

wala akong nasukat na voltage sa speaker..

my audio signal bang pumapasok sa input ng stk ?
set mu sa fm ang unit o much better gumamit muna ng external radio/mp3 png audio source...
pg wla pa rin at buo lhat ng supply
mukhang my tama na ang stk


pa ot: sori din. na bz ako lately
@sir danny pa send din sa email ko slmat

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by mannydioneda on Mon Oct 01, 2012 8:36 pm

sir ultra paano ba gumamit ng radio/mp3 pang audio source? pasensya na po..

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by danny on Tue Oct 02, 2012 10:36 am

email sent

danny
D Battery
D Battery

Posts : 397
Join date : 2012-04-16
Location : Seattle, Washington

http://www.washingtonelec.com

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by danny on Tue Oct 02, 2012 10:38 am




pa ot: sori din. na bz ako lately
@sir danny pa send din sa email ko slmat
[/quote]

ano email mo sir ultra

danny
D Battery
D Battery

Posts : 397
Join date : 2012-04-16
Location : Seattle, Washington

http://www.washingtonelec.com

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by ultrasonic™ on Tue Oct 02, 2012 11:12 am

ultrasonicz_baja@yahoo.com nlng sir danny Banana dancing

@sis manny sbukan mung ipgshort nlng muna ang pin1 at pin18 ng stk at jan mu ilagay ang output ng external fm radio/mp3 mu.


_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by 01110011 on Wed Oct 03, 2012 7:06 pm

pwede mo din hawakan yung pins 1 at 18, pag may ugong na malakas, signal yun na ok pa yung amp Smile

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by danny on Fri Oct 05, 2012 2:09 pm

ano na update dito

danny
D Battery
D Battery

Posts : 397
Join date : 2012-04-16
Location : Seattle, Washington

http://www.washingtonelec.com

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by mannydioneda on Sat Oct 06, 2012 4:51 pm

may inaasikaso lang sa ospital sir danny pasensya na. Sa monday ko na mabalikan siguro..thanks

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by danny on Sun Oct 07, 2012 2:22 pm

ok no problem
sumisilip silip din naman ako dito
pag nde ako busy sa bahay Very Happy

danny
D Battery
D Battery

Posts : 397
Join date : 2012-04-16
Location : Seattle, Washington

http://www.washingtonelec.com

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by mannydioneda on Mon Oct 08, 2012 9:08 am

mga master gud am, hinawakan ko yung pin 1 at 18 na naka short yung relay wala ugong, tinanggal ko pag short sa relay at hawak mode din sa pin 1 at 18 ng stk wala din ugong.. eh baka nga sira na nga ang stk ko.

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by 01110011 on Mon Oct 08, 2012 12:31 pm

for sure sira yan, check mo yung traces ng board, baka may putol

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by ultrasonic™ on Mon Oct 08, 2012 12:44 pm



hmmmpppffff kng buo ang dual supply at ok lhat ng peripheral parts. at wlang problema sa pcb. sound ic na nga ang hatol ko jan.

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by arkin on Mon Oct 08, 2012 6:32 pm

agree ky ultra..pro,ntatandaan ko dti my gnito rin problema na incounter ko.wla ding audio pghinawakan ang input,pro hindi stk ang problema..dko lng mtandaan.try lng mgreplace..

arkin
D Battery
D Battery

Posts : 425
Join date : 2011-12-02

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by danny on Tue Oct 09, 2012 3:55 pm

wala ka bang ecap na sira?
tanong ko lang, bakit kailangan short mo pa ang relay?
naka protect ba ang unit? may dc offset ba?
sori huh nde na ako nag back read

danny
D Battery
D Battery

Posts : 397
Join date : 2012-04-16
Location : Seattle, Washington

http://www.washingtonelec.com

Back to top Go down

Re: sony sterio model: hcd g100k no sound

Post by mannydioneda on Wed Oct 10, 2012 9:30 am

I doble check ko nalang Sir Danny kung walang ecap na sira. hindi ko sure kung nag protect ang unit, pero kahit hindi naka short ganun din wala din.

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down
