papano po gayahin ang nasa game show

View previous topic View next topic Go down

papano po gayahin ang nasa game show

Post by jam on Tue Aug 14, 2012 5:20 pm

mga kuya at ate. patulong po ulit sa project namin. gawa daw kami ng circuit na gaya sa mga gameshow. apat po ang players paunahan sila ng pagpindot. kong sino po ang makakauna, iilaw ang ilaw niya at tutunog ang buzzer. madali lang po ba iyon?

jam
AA Battery
AA Battery

Posts : 95
Join date : 2011-03-10

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by ultrasonic™ on Tue Aug 14, 2012 5:27 pm


anong buzzer at bulb ang gagamitin niyo?

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by jam on Tue Aug 14, 2012 5:31 pm


malalaki siguro po kuya. dapat po daw kasi matibay. pagnatapos daw po kasi ng project namin. gagamitin daw nila sa program sa darating na fetisval.

jam
AA Battery
AA Battery

Posts : 95
Join date : 2011-03-10

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by jam on Tue Aug 14, 2012 5:40 pm


kuya Nandyan ka pa ba

jam
AA Battery
AA Battery

Posts : 95
Join date : 2011-03-10

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by ultrasonic™ on Wed Aug 15, 2012 11:18 am


sori jam. na bz ako khapon kya nwala ako sa airy..
speaking of festival, ang bilis ng araw mlapit na nmn ang happiness ng mga estudyante (^_^

blikan ko ito mamaya.
guhit ko muna..

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by ultrasonic™ on Wed Aug 15, 2012 5:12 pm

eto jam.. pgtyagaan mu nlng...
pasenxa na wla akng talent sa drawing



sw1 = n.o push button (player1)
sw2 = n.o push button (player2)
sw3 = n.o push button (player3)
sw4 = n.o push button (player4)
sw5 = n.c push button (reset)
k1-k4 = DPDT relay 12V
R1- R4 = 10K
scr1-scr4 = XL1225 or any scr number basta available sa area mo.
b1-b4 = bulb or buzzer

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by jam on Thu Aug 16, 2012 11:46 am

salamat po dito kuya. bilhin pa po muna namin ang mga parts.

jam
AA Battery
AA Battery

Posts : 95
Join date : 2011-03-10

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by jam on Sat Aug 18, 2012 10:58 am


mga kuya at ate. pano po ikabit iyong mga k ?

jam
AA Battery
AA Battery

Posts : 95
Join date : 2011-03-10

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by jam on Sat Aug 18, 2012 10:59 am


dami niya po kasing mga paa

jam
AA Battery
AA Battery

Posts : 95
Join date : 2011-03-10

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by Digitap on Sat Aug 18, 2012 1:05 pm

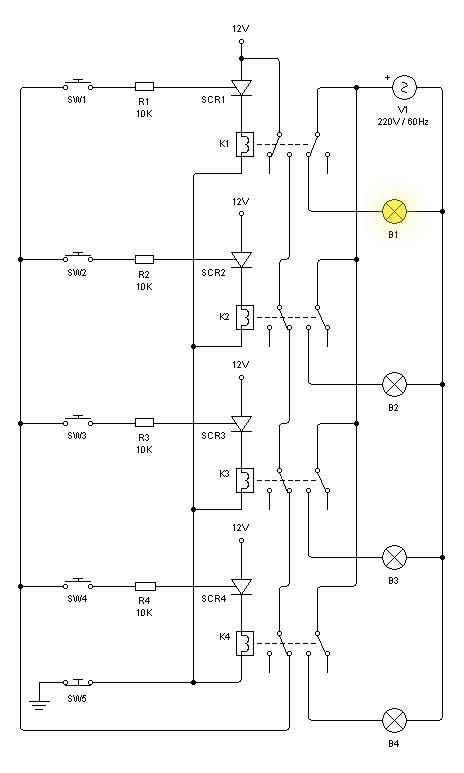

ultrasonic™ wrote:eto jam.. pgtyagaan mu nlng...
pasenxa na wla akng talent sa drawing

http://i1094.photobucket.com/albums/i453/aelexianempire/gameshowbuzzer2.jpg?t=1345018806

sw1 = n.o push button (player1)
sw2 = n.o push button (player2)
sw3 = n.o push button (player3)
sw4 = n.o push button (player4)
sw5 = n.c push button (reset)
k1-k4 = DPDT relay 12V
R1- R4 = 10K
scr1-scr4 = XL1225 or any scr number basta available sa area mo.
b1-b4 = bulb or buzzer

tongue ang pangit nga ng drawing silent



GSC


jam wrote:
dami niya po kasing mga paa

check mo kong pareho sila ng pins




Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by jam on Mon Aug 20, 2012 9:13 pm


naiintindihan ko na ate. salamat sayo.

jam
AA Battery
AA Battery

Posts : 95
Join date : 2011-03-10

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by jam on Mon Aug 20, 2012 9:16 pm

may tanong po ako ulit ate. bakit iba iyong symbol ng k1?
nalilito tuloy ako. iba kasi ang diagram ni kuya ultra at sayo

jam
AA Battery
AA Battery

Posts : 95
Join date : 2011-03-10

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by ultrasonic™ on Thu Aug 23, 2012 1:50 pm

hahahaha gnwan tlga ng circuit sa soft application
+1 sau princess.

jam wrote:may tanong po ako ulit ate. bakit iba iyong symbol ng k1?
nalilito tuloy ako. iba kasi ang diagram ni kuya ultra at sayo

disregard mu nlng yan jam.. kinunan yata yan during ngsisimulate si princess.
after na yan ng nkapag press na ang player1 (sw1)..

tama ba ang deduction ko princess? investigate

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by PIEZO on Fri Aug 24, 2012 7:24 pm

let jam simulate by herself. what's the purpose of GSC compilation posted by princess? if you will not use it geek

anyway don't leave the gate as floating state

_________________
2rd member of STTM
former 3rd member

PIEZO
Admin
Admin

Posts : 140
Join date : 2010-08-12
Age : 34

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by ultrasonic™ on Sat Aug 25, 2012 1:29 pm

PIEZO wrote:let jam simulate by herself. what's the purpose of GSC compilation posted by princess? if you will not use it geek

di ko agad yan npansin.. my .cwz file pala si princess. (^_^

PIEZO wrote:
anyway don't leave the gate as floating state

uu nga noh... needed ngang i pull down...
@jam lagyan mu nlng ng resistor. 39K pwde na..
@princess pa edit ng ckt mu..



ito ang my pull down resist na..
paunahan ng pagpindot (^_^ .cwz

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by jam on Wed Aug 29, 2012 5:23 pm


mga kuya at ate ano po ang pwede pamalit ng XL1225?

jam
AA Battery
AA Battery

Posts : 95
Join date : 2011-03-10

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by ultrasonic™ on Thu Aug 30, 2012 11:54 am

try mung mngsalvage ng sirang box ng Christmas lights.. mraming xl1225 or pcr203 ba yun? hhmmppff di ko na maalala basta samthing like that (^_^


or eto nlng pra mas familiar sa market...
2N5063, 2N5064, 2N6564 at 2N6565 na laging gamit ni princess lol!

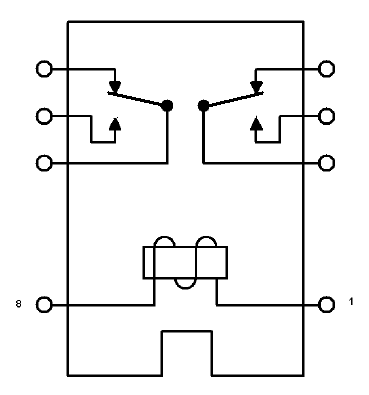

ung nasa left side.. yan ang pin config... "disregard the part #"


_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by jam on Fri Aug 31, 2012 7:03 pm


salamat po kuya

jam
AA Battery
AA Battery

Posts : 95
Join date : 2011-03-10

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by Digitap on Sun Sep 23, 2012 6:48 pm


jam kumusta ang project mo?

Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: papano po gayahin ang nasa game show

Post by Sponsored content Today at 11:30 am


Sponsored content


Back to top Go down
