Goldstar TV ( Chassis PC04 )

Post by ultrasonic™ on Mon Jul 30, 2012 7:05 pm

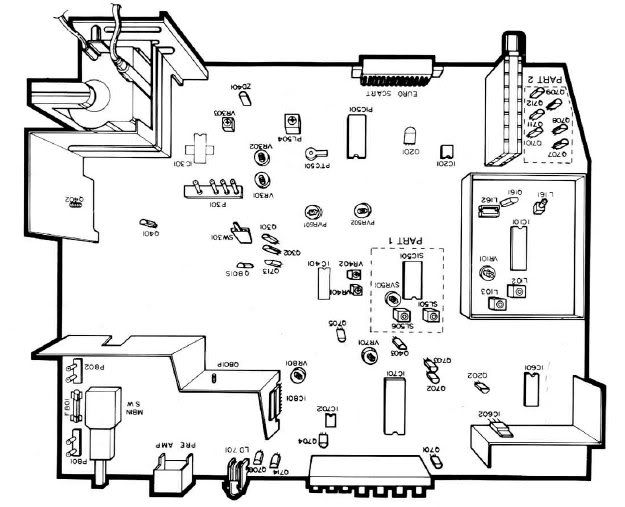

Chassis PC04










Partlist:


Q Reg.: KDS1555

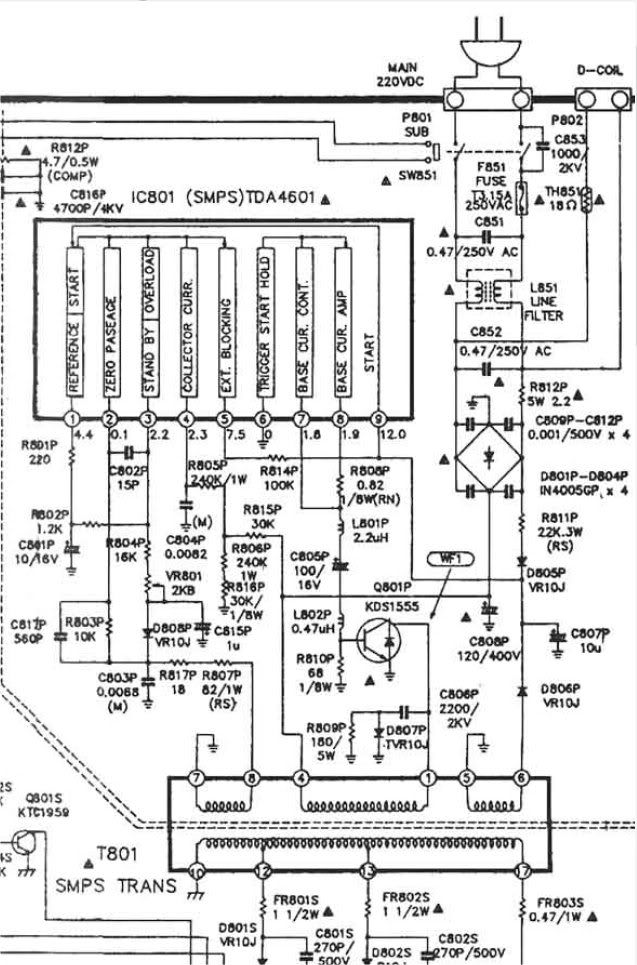

PWM: TDA4601
EEPROM : PCD8572
System: PCA84C640P/030
Jungle/Chrome/Separator: TDA1940, TDA3560A, AN5633K
AV SW.: TEA2014
Vertical : TDA1170N
HOT: KSD1555
FBT : 154-064F, 154-177J, 154-194B
TUNER: CER1A7078
Sound:  TDA2006






http://elektrotanya.com/goldstar_chassis_pc04.pdf/download.html
