Sino po marunong gumawa ng PCB layout dito bayad ako load.

View previous topic View next topic Go down

Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by Blaze25 on Fri Jul 13, 2012 2:35 pm

Mga sir pagawa sana ako ng PCB layout for audio ic An214 magbabayad po ako ng load kung sino makagawa agad ngayon.

reply po sa may gusto mag volunter para ma i pm ko sa iyo ang schematics diagram ng ipagawa ko,need kasi isa lang mangakong gumawa kasi wala ako pambayad sa inyong lahat sa load Very Happy


Last edited by Blaze25 on Fri Jul 13, 2012 2:37 pm; edited 2 times in total (Reason for editing : tittle)

Blaze25
AAA Battery
AAA Battery

Posts : 16
Join date : 2012-06-18
Age : 42
Location : Carmen North Cotabato

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by Blaze25 on Fri Jul 13, 2012 3:08 pm

Load po bayad mga sir...

Blaze25
AAA Battery
AAA Battery

Posts : 16
Join date : 2012-06-18
Age : 42
Location : Carmen North Cotabato

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by james on Sun Jul 15, 2012 10:49 pm

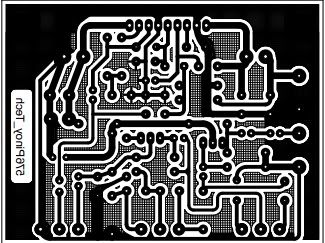

hmmm ok na ba ito?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by Digitap on Tue Jul 17, 2012 10:24 am

may ganitong thread din sa elab
http://www.elab.ph/forum/index.php?topic=35015.0









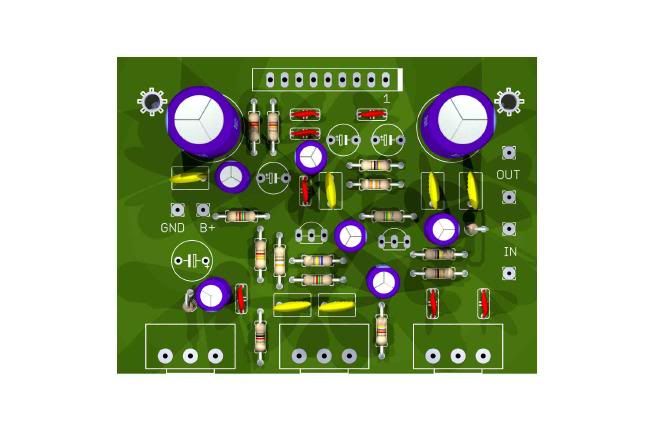

http://i1094.photobucket.com/albums/i453/aelexianempire/x249s8.jpg?t=1342488146

AN214Q_Amplifier_Pinoy_Tech_elab

Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by ultrasonic™ on Wed Jul 18, 2012 2:02 pm

galing tlga ni sis pinoy tech pag dating sa pcb layouting

pa ot:

buti ka pa nkaka-online sa elab

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4120
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by danny on Wed Jul 18, 2012 2:24 pm

Very Happy oo nga

danny
D Battery
D Battery

Posts : 397
Join date : 2012-04-16
Location : Seattle, Washington

http://www.washingtonelec.com

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by ultrasonic™ on Wed Jul 18, 2012 2:43 pm

^ sir danny pahiram ng elab account mu ? (^_^

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4120
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by arkin on Thu Jul 19, 2012 5:12 pm

paabang muna sa resulta..feedback ka f ok yong circuit,f hindi my sugestion ako sa modi..[pauna lng:mahina to..] Very Happy

arkin
D Battery
D Battery

Posts : 426
Join date : 2011-12-02

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by danny on Sat Jul 21, 2012 2:14 pm

ultrasonic™ wrote:^ sir danny pahiram ng elab account mu ? (^_^

o bakit naman
ano nangyari sa account mo Very Happy

danny
D Battery
D Battery

Posts : 397
Join date : 2012-04-16
Location : Seattle, Washington

http://www.washingtonelec.com

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by 01110011 on Sat Jul 21, 2012 5:02 pm

gaga talaga yung mga bakla sa elab, sina mayor at si kagawad siguro may pakana sa problema mu ati ultra

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by Digitap on Sat Jul 21, 2012 6:08 pm

danny wrote:
ultrasonic™ wrote:^ sir danny pahiram ng elab account mu ? (^_^

o bakit naman
ano nangyari sa account mo Very Happy

banned na daw siya sir Razz

Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by ultrasonic™ on Mon Jul 23, 2012 3:06 pm

^ tigilan mu ko princess Mad

danny wrote:
ultrasonic™ wrote:^ sir danny pahiram ng elab account mu ? (^_^

o bakit naman
ano nangyari sa account mo Very Happy

di ako mkapasok eh.. invalid username at password nklagay. binan na nga yata tlga ako ni ninang.. (T_T

di ako mkagawa ng panibagong account. strictly one user account per ip add daw, btw sis danny.. moderator na ba si mayor ?
di kya xa ang ng-ban sa akin?

nku ot nku... sori ts


_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4120
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by 01110011 on Sun Jul 29, 2012 12:05 pm

hindi pa po elected si mayorbaklaray, sabi ni tita na wala daw moderators ang chitchat ;D

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by ultrasonic™ on Mon Jul 30, 2012 9:00 pm

^ hahaha buti nga sa baklang yun (^_^

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4120
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by bjohn7908 on Tue Aug 28, 2012 3:34 pm

mga master pwede mka hingi ng mga lists sa mga pyesa nito, lalo na sa mga capacitor kung ilang mga volts? e ca canvas ko sana kung mga mag ang magagasto ko dito.

bjohn7908
AA Battery
AA Battery

Posts : 61
Join date : 2012-08-02
Location : leyte

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by makoy on Fri Sep 14, 2012 12:13 pm

ilan ang power nang amplifier nayan?

makoy
AAA Battery
AAA Battery

Posts : 15
Join date : 2012-09-13
Location : bohol

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by 01110011 on Fri Sep 14, 2012 6:54 pm

5 watts Banana dancing

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: Sino po marunong gumawa ng PCB layout dito bayad ako load.

Post by Digitap on Wed Sep 19, 2012 7:08 pm

bjohn7908 wrote:mga master pwede mka hingi ng mga lists sa mga pyesa nito, lalo na sa mga capacitor kung ilang mga volts? e ca canvas ko sana kung mga mag ang magagasto ko dito.

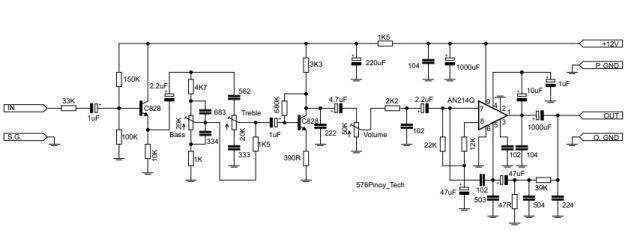

kuya nasa diagram po ang mga parts
