ALTAR CANDLE using AC source.

Post by mitch on Tue Jul 10, 2012 4:56 pm

paki post po circuit ng Altar Candle using 2bulbs. kahit anong design..tnx advance.. reading

mitch
AAA Battery
AAA Battery

Posts : 20
Join date : 2011-12-01
Age : 35
Location : Negros

Back to top Go down

Re: ALTAR CANDLE using AC source.

Post by ultrasonic™ on Mon Jul 16, 2012 7:14 pm

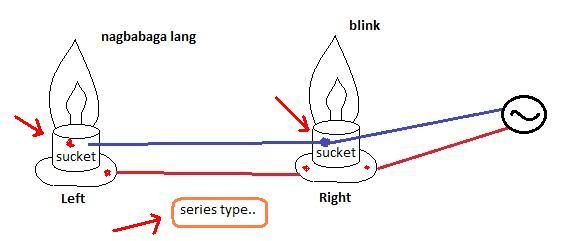

parang ganito ba ang tinutukoy mu sis ?



ganyan din yung bulb namin sa altar..color red ang kulay.. parang my apoy sa loob.. direct 220v na xa.. di xa coil type

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: ALTAR CANDLE using AC source.

Post by mitch on Tue Jul 17, 2012 12:46 pm

Yp ganyan po pero yung circuit po hanap ko.kasi dalawang bulb ang gamit.nkita ko lng parang may diode nkalagay sa sucket. di ko mkita ang value.series type po xa(parang right left).yung isa mahina ang light(parang nagbabaga lng) kng ipalit ko sa kabila malakas nmn ang ilaw.

mitch
AAA Battery
AAA Battery

Posts : 20
Join date : 2011-12-01
Age : 35
Location : Negros

Back to top Go down

Re: ALTAR CANDLE using AC source.

Post by ultrasonic™ on Wed Jul 18, 2012 1:19 pm

ala akng diagram nyan sis.. at saka di ko din alam ang concept sa ganyang mga bulb.. nacu-curious din ako jan... bkit umiilaw at ngpi-flicker? saan kya tayo mkakahanap nyan ng mgpg-aralan

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: ALTAR CANDLE using AC source.

Post by mitch on Wed Jul 18, 2012 10:27 pm

ibig ko po sabihin, pag pinagpalit ko ang bulb sa left to right magblink ang right pro sa left sya na rin ang magbabaga lng.bago din po dalawang buld. ano po problema.???kng left sucket palitan ko stil nagbabag.. pls po pa help..o any suggestion nlng..

mitch
AAA Battery
AAA Battery

Posts : 20
Join date : 2011-12-01
Age : 35
Location : Negros

Back to top Go down

Re: ALTAR CANDLE using AC source.

Post by ultrasonic™ on Thu Jul 19, 2012 12:49 pm

bka cause yan ng parang diode na tinutukoy mung nasa receptacle/socket... kaya iba ang behavior ng isang bulb na nasa parteng my "look a like diode"

kng wla nmng effect ang diode na nabanggit at saka kng pareho sila ng klase ng bulb.. dpat di ganyan yan. except siguro kng loose connection..
pero palaisipan parin kasi nka series kau...

btw bakit ayaw nyung i parallel ang set-up nyu ?
ng mwala sa duda ang voltage drop (^_^

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: ALTAR CANDLE using AC source.

Post by mitch on Thu Jul 19, 2012 1:10 pm

yun nga sana gawin ko kaso wla na akong ibang lalagyan ng kc outlet nmin dalawa lng isa sa lights at isa sa water dispenser..salamat po sa advice.pero pag may alam kayo o sa nka basa, 2bulb circuit na magblink paki post po d2..salamat advance.. tongue

mitch
AAA Battery
AAA Battery

Posts : 20
Join date : 2011-12-01
Age : 35
Location : Negros

Back to top Go down

Re: ALTAR CANDLE using AC source.

Post by ultrasonic™ on Thu Jul 19, 2012 4:21 pm

ah.. kng gusto mu lng pala pablinkingin ang dlwang 220v bulb... ay di pwpwede ang circuit mu sa taas lalot in form of series na wlang dinadagdag sa ckt. except kng my flasher kau..kng pansin nyu ang mga christmas light na ngbiblink na wlang gamit na kahit anung electronic board ay dahil my isang flasher/blinker bulb na nkakabit sa series line nya..

na kng papansinin ay naiiba xa sa ibang bulb.
red-tipped flasher - http://yulelights.com/page2/ge_mini_bulbs.jpg


ang maisasuggest ko lng sa ngyon kng wla kang flasher ay mg-electronic flasher board ka nlng
pwde na ang ganitong ckt.



Component Parts:

R1_________ 100K
R2,R5______ 1K
R3,R6______ 470R
R4_________ 12K
C1_________ 1000µF 25V
D1-D4______ 1N4007
D5_________ SCR P0102D
Q1_________ BC327
Q2_________ BC337
SK1________ Female Mains socket
How the circuit works:
The device formed by Q1, Q2 and related resistors triggers the SCR. The
flashing frequency is provided by R1, R2 and C1. To change flashing
frequency value, just set C1 value from 100 to 2200µF, don’t modify R1
and R2.
Best performances are obtained with C1=470 or 1000µF and R4=12K or 10K.
Due to low consumption of normal 10 or 20 lamp series-loops, very small
and cheap SCR devices can be used, e.g. C106D1 or TICP106D.

Source: redcircuits.com

_____________________

o pwde din ang ganito

http://circuitdiagram.net/220v-200w-lamp-flasher.html

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: ALTAR CANDLE using AC source.

Post by mitch on Fri Jul 20, 2012 11:01 am

ah ok salamat po..baka sana yung simple at mdyo di magastos.mdyo mahirap po kc budget ngayon..

mitch
AAA Battery
AAA Battery

Posts : 20
Join date : 2011-12-01
Age : 35
Location : Negros

Back to top Go down

Re: ALTAR CANDLE using AC source.

Post by arkin on Fri Jul 20, 2012 1:16 pm

nblink nman talaga yong bulb na gnamit,design na talaga yan Very Happy outlet problema mo,d plitan mo ng outlet mo!kong gusto mong magblink yong ordinary bulb,maglagay ka ng starter,in series connection.take note mitch:nkaparalel yong pix na post mo. Razz

arkin
D Battery
D Battery

Posts : 430
Join date : 2011-12-02

Back to top Go down

Re: ALTAR CANDLE using AC source.

Post by arkin on Fri Jul 20, 2012 1:25 pm

phabol nga pla..yong diode ang naghahati ng boltahe.ganyang konsepto gamit ko sa soldering iron ko,pra d mdaling masunog ang filament.

arkin
D Battery
D Battery

Posts : 430
Join date : 2011-12-02

Back to top Go down

Re: ALTAR CANDLE using AC source.

Post by mitch on Fri Jul 20, 2012 6:29 pm

salamat po paki post po sa arkin sa design.

mitch
AAA Battery
AAA Battery

Posts : 20
Join date : 2011-12-01
Age : 35
Location : Negros

Back to top Go down

Re: ALTAR CANDLE using AC source.

Post by Digitap on Sat Jul 21, 2012 6:06 pm



Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: ALTAR CANDLE using AC source.

Post by arkin on Sun Jul 22, 2012 11:30 am

ganyan nga! congratulation

arkin
D Battery
D Battery

Posts : 430
Join date : 2011-12-02

Back to top Go down

Re: ALTAR CANDLE using AC source.

Post by ultrasonic™ on Mon Jul 23, 2012 1:16 pm

arkin wrote:nblink nman talaga yong bulb na gnamit,design na talaga yan Very Happy
outlet problema mo,d plitan mo ng outlet mo!kong gusto mong magblink
yong ordinary bulb,maglagay ka ng starter,in series connection.take note
mitch:nkaparalel yong pix na post mo. Razz

yan din ang npansin ko sa diagram nya sis arkin. pero pilit ko pa rin iniintindi na series nlng kasi dio kasi nkaattach mismu sa receptacle ang mga wire nya.. ito tuloy pumasok sa isip ko... my nilagay din kasi xang series na word.,..





misinterpret na pla ako (^_^

on topic:

tama si arkin. pwde nga ang florescent/glow starter. it can create flickering..
yan din ang gamit ko minsan sa mga water fountains. ung diodes nmn ang gamit ko pang dimming effect sa mga bulbs.

meron din flasher box na gnagamit sa mga native parol/lantern di ko lng alam ang exact name ng parts. di ko tuloy magoogle. siniseries din xa sa line at mgbiblink na...
