SONY TV ( Chassis GP-1A ) [ SCC-D26B ]

Post by Hertz on Sat Jun 02, 2012 7:58 pm

Sony

KV-1984MT, KV-2192M3, KV-2194MT, KV-2553MT, KV-2565MT, KV-2584MT, KV-2585MT, KV-2964MT, KV-2965MT, KV-2965MTJ


Chassis SCC-D26B / GP-1A
RM-687C



Micom - PCA84C640P/016
Memory - 24C02P
SMPS - STR-50115
TR Chopper - 1-448-935-12
Video - CXA1213AS
Secam - CXA1214P
Sound - TDA2007A
VIF/SIF - CX20015A
Switch - LA7016
Vertical - µPC1488H
Tuner - BT-EG201 1-465-216-11
Tube - A51JUH10X
FBT - 1-439-423-3 (HR7245)
HOT - 2SD1878
RGB Amp. - 2SC3271
IC remote - BU3780F, BU5810F, M50461B

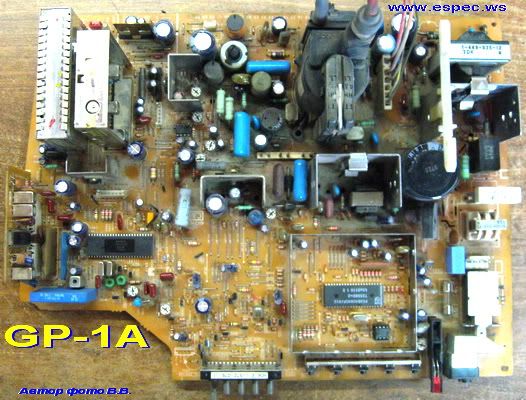

Sony SCC-D26B / GP-1A


Last edited by Hertz on Tue Aug 04, 2015 2:42 pm; edited 1 time in total

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: SONY TV ( Chassis GP-1A ) [ SCC-D26B ]

Post by ultrasonic™ on Mon Feb 02, 2015 1:30 pm

ay akala ko wala pa nito dito... na upload ko tuloy....
pa insert nlng nito Sir Hertz..



Sony

Chassis GP-1A



Partlist:

Reg: STR-50115, STR-S5941
EEPROM: 24C02P
System Con: PCA84C640P/016, PCA84C840P/037
Jungle: CXA1213AS, CXA1213S
Secam : CXA1214P
RGB: 2SC3271
Sound :TDA2007A
VIF/SIF : CX20015A
AV SW: LA7016
Vert: µPC1488H, µPC1498H
HOT:  2SD1878, 2SC4927
FBT : 1-439-423-31 NX-M1601 (HR7245)
Tuner: BT-EG201 1-465-216-11

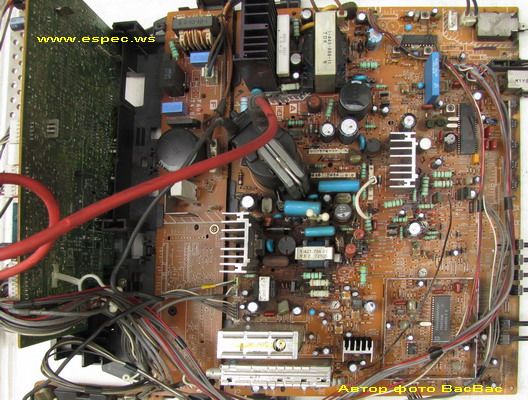

SONY Chassis GP-1A
