Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by ultrasonic™ on Fri Mar 23, 2012 10:04 am


ah di pala ang ngsasaturate/gumagana ang power reg

@TS tumuon nlng muna sa power supply
@jeff anu pala ang winding arangement ng SMPT ?

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by mannydioneda on Fri Mar 23, 2012 6:47 pm

salamat master ultra... Very Happy

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by Electro on Mon Mar 26, 2012 1:30 pm


dalawang magkahiwalay na coil siya master. pin1 at 2 ay magkadugtong. pin3 at pin4 naman ay magkadugtong din

Electro
D Battery
D Battery

Posts : 1433
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by mannydioneda on Sun Apr 01, 2012 5:12 pm

mga master salamat sa mga tulong nyo sa pag troubleshoot, marami akong natutunan, kaya lang kinuha na muna ng may-ari ang kanyang TV dahil kapos sa badyet. Sana huwag kayong magsawang tumulong.. Salamat uli. Banana dancing

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by Electro on Tue Apr 03, 2012 7:35 pm


ok lang iyan master

Electro
D Battery
D Battery

Posts : 1433
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by mannydioneda on Fri May 11, 2012 8:38 pm

Kumusta mga master! gagawin ko ulit ito (14pt1582/71r) hingin ko ulit ang inyong tulong... simulan ko dun sa mc44603ap paano ba ito malalaman kung sira?

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by danny on Sat May 12, 2012 1:45 pm

nakakuha ka na ba ng schematic

danny
D Battery
D Battery

Posts : 397
Join date : 2012-04-16
Location : Seattle, Washington

http://www.washingtonelec.com

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by mannydioneda on Sat May 12, 2012 8:26 pm

Oo Sir Danny, yung bigay ni Master Ultra..

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by danny on Mon May 14, 2012 3:16 pm

ok Smile

danny
D Battery
D Battery

Posts : 397
Join date : 2012-04-16
Location : Seattle, Washington

http://www.washingtonelec.com

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by ultrasonic™ on Mon May 14, 2012 5:21 pm


always do the basic..
voltage checking sa mga output test point... pa wlang makuha... backward ang pagtroubleshooting

check supply pin ng mga parts.. pg meron reading at sakto.. mlamang sira na yun..

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by Oscar on Tue May 15, 2012 5:49 pm


master palitan na lang ang mc44603 baka sira na.

Oscar
C Battery
C Battery

Posts : 279
Join date : 2010-09-22

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by mannydioneda on Tue May 15, 2012 10:22 pm

salamat mga master sige update ko kayo...

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by mannydioneda on Fri May 18, 2012 9:44 pm

pinalitan ko na yung mc44603ap ganun parin eh..

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by mannydioneda on Fri May 18, 2012 9:47 pm

tapos mag voltage check sana ako, yung main capacitor na short ko sa test prod pumutok na damage ata board...dumami ata problema ko... Razz

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by Electro on Sat May 26, 2012 12:17 pm


master manny palitan lang ulit ang mga nag open fuse o baka may resistor lang na mababa ang resistance ang bumigay.

Electro
D Battery
D Battery

Posts : 1433
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by mannydioneda on Wed May 30, 2012 8:57 pm

okay naman ang fuse master, may 115v sa dalawang pin sa primary, sa secondary walang output...

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by Hertz on Sat Jun 02, 2012 3:19 pm

baka hindi gumagana ang pwm.

test mo ang bawat paang may nakalabel

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1458
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by mannydioneda on Sun Jun 03, 2012 1:36 pm

thanks master hertz test ko bukas... Very Happy

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by mannydioneda on Tue Jun 05, 2012 9:09 am

master na check ko na yung mc44603, walang boltahe sa pin 1. dapat merong masukat na 14v hindi ba?

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by Hertz on Tue Jun 05, 2012 1:27 pm

dapat nga meron iyan lagi.

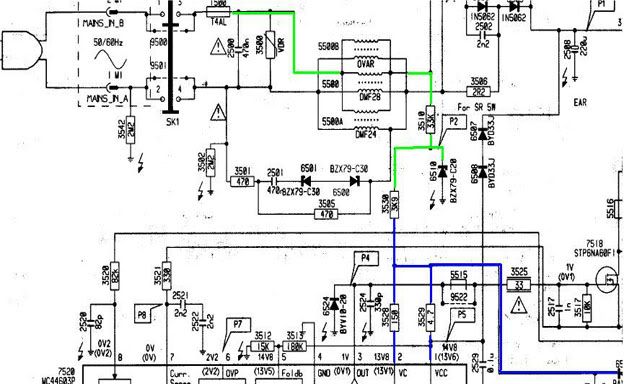

http://i1094.photobucket.com/albums/i453/aelexianempire/no14vonmc44603ap.jpg?t=1338869225

kong walang 14v sa pin1.
test mo ang P2 kong may 16v. if none - maaaring open ang 3510=33kΩ o shorted ang 6510=BZX79-C20

if yes - continue for P5. kong sakaling walang 14V
check 3529 at 3530. malamang open ang isa sa kanila.
kong good test naman ang dalawang iyan. sira ang pwm ic

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1458
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by mannydioneda on Tue Jun 05, 2012 8:45 pm

thanks master update ulit ako..

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by mannydioneda on Wed Jun 06, 2012 2:14 pm

master walang boltahe sa lahat ng pin ng mc44603ap, na check ko na ang 3510 ay good, ganun din ang 3529 at 3530 good din. Baka nga sira na yun pwm ic. Palitan ko nalang then update ulit ako. Thanks..

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by Hertz on Thu Jun 07, 2012 12:23 pm

hindi mo nasabi ang condition ng 6510. saan ka nga pala naglalagay ng ground? dapat doon ka sa - ng main capacitor 2508 at wag sa secondary. wag ka munang magpalit ng pwm hanggat hindi mo pa napapalabas ang mga standby voltage. may diagram ka na diba? test mo ang mga test point guide [P1-P12] post mo dito. tulungan kitang i eliminate kong saan ang may problema

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1458
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by ultrasonic™ on Fri Jun 08, 2012 6:11 pm

^ agreed at mkikiabang... sis ts. kng wla pa ring supply pwde mu alisin ang driver/pwm ic sa board at sukatan ang copper clad
pg lumitaw yan,.... shorted ang pwm

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Philips, Model: 14PT1582/71R Schematic Diagram

Post by mannydioneda on Sat Jun 16, 2012 8:10 am

Salamat mga master, test ko ulit mamaya at i post ko..

mannydioneda
AA Battery
AA Battery

Posts : 129
Join date : 2012-02-24
Age : 50
Location : Calamba City

Back to top Go down
