BOOSTER AMPLIFIER (MONO) using MJ2955

Page 3 of 12 Previous  1, 2, 3, 4 ... 10, 11, 12  Next

View previous topic View next topic Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by 01110011 on Wed Sep 07, 2011 8:49 pm

ma pinost si sir ulta na amp somewhere sa 4rum na ito yu an7161 ang gamit

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by 01110011 on Wed Sep 07, 2011 8:50 pm

sory po sa double post hehe

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by earl on Tue Sep 13, 2011 9:35 am

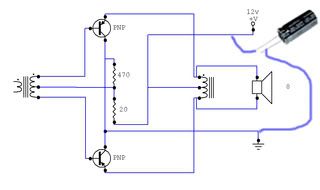

mga bossing, meron bang capacitor tong mono? kasi wala sa diagram...... gagawa kasi ako ilalagay ko sa tryckel.......
thanks

earl
AAA Battery
AAA Battery

Posts : 1
Join date : 2011-09-13

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by vhonnah on Fri Sep 16, 2011 9:43 pm

mga bossing sino ho ba sa inyo ang merong 24 volts na design nito. subukan ko lang sanang eedit itong 12volts 50watts kong booster amp kung ano ang pinag iba nila. Tanx po in advance.. God bless

vhonnah
AAA Battery
AAA Battery

Posts : 4
Join date : 2011-07-22

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by Hertz on Sat Sep 17, 2011 12:21 pm

earl wrote:mga bossing, meron bang capacitor tong mono? kasi wala sa diagram...... gagawa kasi ako ilalagay ko sa tryckel.......
thanks

parallel niyo lang sa power supply ang capacitor.



vhonnah wrote:mga bossing sino ho ba sa inyo ang merong 24 volts na design nito. subukan ko lang sanang eedit itong 12volts 50watts kong booster amp kung ano ang pinag iba nila. Tanx po in advance.. God bless

computation ang kailangan

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1457
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

booster amp using mj255 transistor

Post by eysi on Sun Oct 02, 2011 3:18 pm

to whom it may concern:

I just want to know the turns of the two power transformer used in the circuit because you know guys I had a project that hasn't finished and I am trying to finish it but I can't because I can't find transformer such those.
That's why I'd rather to make my own If someone can tell me How many turns are those.
Thank you and more power.

eysi
AAA Battery
AAA Battery

Posts : 2
Join date : 2011-10-02

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by popcorn on Tue Oct 04, 2011 3:02 pm

Boss naa ba ka circuit unsaon pag timpla sa booster para mosagitsit ug mo bass pag au? tnx

popcorn
AAA Battery
AAA Battery

Posts : 17
Join date : 2011-10-04
Location : cebu

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by ultrasonic™ on Thu Oct 06, 2011 7:09 pm

popcorn wrote:Boss naa ba ka circuit unsaon pag timpla sa booster para mosagitsit ug mo bass pag au? tnx

try mu daan sa crossover

eysi wrote:to whom it may concern:

I just want to know the turns of the two power transformer used in the circuit because you know guys I had a project that hasn't finished and I am trying to finish it but I can't because I can't find transformer such those.
That's why I'd rather to make my own If someone can tell me How many turns are those.
Thank you and more power.

:0453: waiting mode sa iba. di ko kasi maalala ang formula

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Booster Output Trnsformer data

Post by vhonnah on Fri Oct 07, 2011 8:54 pm

[url=][/url]

vhonnah
AAA Battery
AAA Battery

Posts : 4
Join date : 2011-07-22

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by vhonnah on Fri Oct 07, 2011 9:06 pm

"Sensya na mga bro ang liit ng penost ko,eto malaki na


http://img821.imageshack.us/img821/5503/boosteroutputxformer.jpg

vhonnah
AAA Battery
AAA Battery

Posts : 4
Join date : 2011-07-22

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by ultrasonic™ on Mon Oct 10, 2011 2:07 pm



^^ tnx dito sis.. very useful

+1 point ka sa akin..
enidit ko na din para magkasya dito (^_^),V,,

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by eysi on Mon Oct 10, 2011 9:14 pm

To:Vhonnah

Thank you for the formula..

More power and God Bless.

eysi
AAA Battery
AAA Battery

Posts : 2
Join date : 2011-10-02

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by 01110011 on Thu Oct 13, 2011 4:52 pm

sir naa ka formula pila ka turns ang 500 watts


01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by vhonnah on Fri Oct 14, 2011 8:11 pm

sensya sis wla akong 500 watts na formula, nakuha ko lang yan sa lumang libro ni marconi pagarigan, almost 20 years na yan sakin enidit o lang kasi sira na yung libro ko sa katagalan. meron pa ako isang furmula sa paggawa ng power x'former kasama rin yan sa libro kaya lang di ko pa nakita. post ko nalang susunod kung makita ko na.

vhonnah
AAA Battery
AAA Battery

Posts : 4
Join date : 2011-07-22

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by 01110011 on Sat Oct 15, 2011 9:23 am

ah ok try ko lang mag experiment lol! aware

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by 01110011 on Sat Oct 15, 2011 9:24 am

thanks po pala sa formula +1 for Smile u

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by Steel Rain on Mon Oct 17, 2011 7:47 am

pwede bang mag parallel ng 4 transistors,bali 8 lahat ang total sa dlwang junction,sa 100W audio booster?

if 150W audio booster ang balak kung gawin,dapat bang baguhin ang value ng dalwang rsistor?


Steel Rain
AAA Battery
AAA Battery

Posts : 14
Join date : 2011-10-17

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by 01110011 on Mon Oct 17, 2011 3:41 pm

hindi nah, lagay ka ng mas maraming pairs of trannies para hindi maxadong uminit

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by jimsky143 on Fri Nov 11, 2011 6:30 pm

mga sir unsa d i part list anang bass ug treble para ani nga booster?

jimsky143
AAA Battery
AAA Battery

Posts : 13
Join date : 2011-11-07
Location : bohol

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by 01110011 on Fri Nov 11, 2011 8:22 pm

· Electrolytic Capacitors
o 3 – 47 µF, 16 V
o 3 - 4.7 µF, 16 V
o 2 – 100 µF, 16 V
o 1 - 1000 µF, 16 V
· 1 Ceramic Capacitor (102)
· Mylar Capacitors
o 4 - .01 µF
o 3 - .1 µF
o 1 – 222 µF
· Resistors
o 2 – 1 KΩ ( ¼ watt)
o 2 – 1.5 KΩ (¼ watt)
o 1 – 1 MΩ (¼ watt)
o 1 – 10 K Ω (¼ watt)
o 1 – 10 Ω (¼ watt)
o 1 – 560 KΩ (¼ watt)
o 1 – 560 KΩ (¼ watt)
o 1 – 3.3 KΩ (¼ watt)
o 3 - 100 KΩ (¼ watt) potentiometer for bass treb and volume
· 1 - 828 Transistor
· 1 - IC AN-7161
· Heat Sink
kung stereo x2 ang mga parts at dual gang ang pot

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by 01110011 on Mon Nov 14, 2011 8:18 pm



eto po yung pcb

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by jimsky143 on Tue Nov 15, 2011 5:57 pm

sir naa paba nay schematic diagram?
ug naa paba kay lain dha nga dali ug sayun ra himuon?
naa nay booster nako diri gbaligya rani sa akua,gusto nako butangan ug tone cntrol...

lahi lagi ang partlist ani nga booster ky 300 ug 20 ohms 5W ug 4700uF ang cap. pero stereo..nya AC na murag 10A man cguro supply ani. butangan unta nako ug tone kay ang ngdrive ani kay amp sa PC TDA2822.
salamat daan sa makasuggest

jimsky143
AAA Battery
AAA Battery

Posts : 13
Join date : 2011-11-07
Location : bohol

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by 01110011 on Tue Nov 15, 2011 7:10 pm

ok ra na kc ang booster puwede ka mag mods pwede sad templahan (as we call it here) ang 2822 ky hinay ra kaayu ug output mao nga dili kusog iimo booster ,naa schematic somewher in this forum .

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by 01110011 on Tue Nov 15, 2011 7:11 pm

fifteenwatts wrote:

eto po yung pcb
naa ni sya tone control mau nga daghan ug parts pero mono ra

01110011
C Battery
C Battery

Posts : 184
Join date : 2011-07-23
Age : 24
Location : cebu city

Back to top Go down

Re: BOOSTER AMPLIFIER (MONO) using MJ2955

Post by jimsky143 on Wed Nov 16, 2011 11:19 am

sir ang schematic ani naa?

jimsky143
AAA Battery
AAA Battery

Posts : 13
Join date : 2011-11-07
Location : bohol

Back to top Go down
