SPEED CONTROLLER CIRCUIT FOR AC MOTOR

Post by ultrasonicâ„¢ on Thu Aug 19, 2010 11:01 pm

this circuit serves as a motor controller circuit to easily controlling or varying the RPM & Phase control of a AC motor.

source: directly 220VAC
Load: approx. 1hp AC motor (600w-1kw)

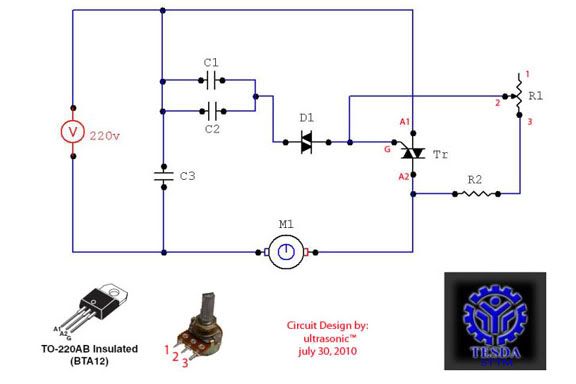

CIRCUIT DIAGRAM:


COMPONENT PARTLIST:

C1 = 2G332J or 0.0033uf Mylar
C2 = 2G563J or 0.056uf Mylar
C3 = 0.22uf K 275VAC Polyester type Caps.
R1 = 510 ohm J 1W Wire-wound Resistor
R2 = 470K Potentiometer
D1 = DB3 C312 Diac
Tr = BTA12 600B Triac

M1 = AC motor

Note: Heat Sink is needed


- ultrasonicâ„¢ -


related topics:

LAMP DIMMER
500W LIGHT DIMMER


ultrasonicâ„¢
D Battery
D Battery

Posts: 3707
Join date: 2010-08-19
Age: 28
Location: Davao City

Back to top Go down

Re: SPEED CONTROLLER CIRCUIT FOR AC MOTOR

Post by Ewan on Mon Mar 26, 2012 6:30 am

I can not do electronics nor do I understand it.
I need this circuit but I need to drive a router of 1200W

Whats components need to change for this?

Ewan
AAA Battery
AAA Battery

Posts: 1
Join date: 2012-03-26

Back to top Go down

Re: SPEED CONTROLLER CIRCUIT FOR AC MOTOR

Post by volter on Thu Jun 07, 2012 6:05 pm


you need to change the driver into higher one
