NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Page 2 of 3 Previous  1, 2, 3  Next

View previous topic View next topic Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by daltanics on Thu Jun 06, 2013 2:19 am

master ultrasonic,sensya na jessnics pala pala filename ,download mo lang ganon parin password,para ma simulate mo na sa proteus.

daltanics
AA Battery
AA Battery

Posts : 118
Join date : 2011-10-30
Age : 36
Location : davao city

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by ultrasonic™ on Thu Jun 06, 2013 11:29 am

di ko mhanap ang link sis...

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by james on Thu Jun 06, 2013 12:50 pm

Mukhang may pagkakaabalahan dito.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by daltanics on Fri Jun 07, 2013 2:06 pm

ultrasonic™ wrote:di ko mhanap ang link sis...
JESSNICS.rar master ultra,diri nalang pasensya na dili kaayo ko kabalo mag upload diri .e open lang mao ra gehapon password.paki try nalang kung ok ni sya na hex file pero sakin nag play mani sya.thanks

daltanics
AA Battery
AA Battery

Posts : 118
Join date : 2011-10-30
Age : 36
Location : davao city

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by ultrasonic™ on Fri Jun 07, 2013 4:41 pm

na DL ko na sis (^_^

try ko muna para mpag-aralan (^_^

+1

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by daltanics on Fri Jun 07, 2013 8:09 pm

thanks sa points master ultrasonic pag aralan mo lang tapos post mo lang kung ano update,econtinue korin dito sa ang pag gawa nyan.

daltanics
AA Battery
AA Battery

Posts : 118
Join date : 2011-10-30
Age : 36
Location : davao city

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by ultrasonic™ on Sat Jun 08, 2013 3:32 pm

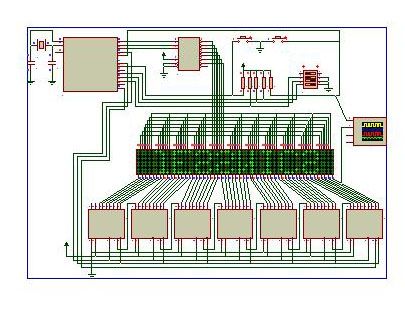

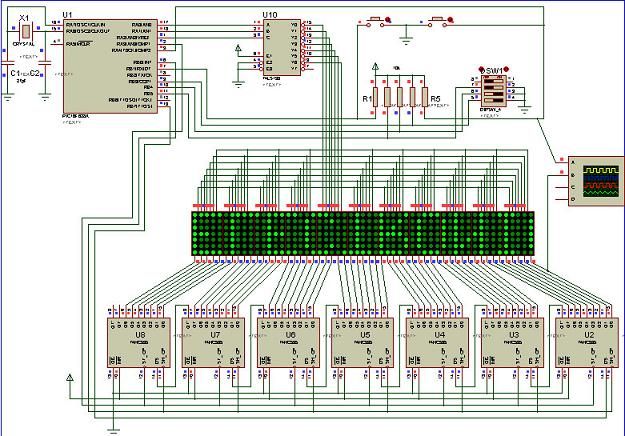

ayoz gumana ang file na bigay mo sis... +1 ulit
welcome to jessnics electronics ang lumalabas sa simulation...





baliktad ang display nya pero pwde na ring pg-aralan (^_^

btw ang probz ko nlng ay pano gawin ang source code..tiyak madugo to Crying or Very sad

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by james on Sat Jun 08, 2013 7:43 pm

Paano gawin yan mga sir?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by daltanics on Sun Jun 09, 2013 1:43 am

good job you did it... master ultrasonic baliktad mo connection ng colum, or rows para mabasa yong future name ng shop ko.PARA MA EDIT MO E OPEN MO HEX FILE SA PIC PROG OR ICPROG TAPOS EDIT MO LETTERS SA EEPROM ADDRESS NYA,SANA MAGAWAN NYO NG PCB.THANKS SA
POINTS MASTER ULTRASONIC.

daltanics
AA Battery
AA Battery

Posts : 118
Join date : 2011-10-30
Age : 36
Location : davao city

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by james on Sun Jun 09, 2013 1:53 pm

Paturo naman kung paano gumawa nyan noob sa simulation eh mga masters.

Ano mga kailangan?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by ultrasonic™ on Mon Jun 10, 2013 3:27 pm

daltanics wrote:good job you did it... master ultrasonic baliktad mo connection ng colum, or rows para mabasa yong future name ng shop ko.PARA MA EDIT MO E OPEN MO HEX FILE SA PIC PROG OR ICPROG TAPOS EDIT MO LETTERS SA EEPROM ADDRESS NYA,SANA MAGAWAN NYO NG PCB.THANKS SA
POINTS MASTER ULTRASONIC.

pwde na kaya.. e mirror ko nlng (^_^



btw... regarding sa pag edit ng hex data parameter sa winPic Prog



my secret ba to paano basahin..ang dami kasi eh... (T_T

james wrote:Paturo naman kung paano gumawa nyan noob sa simulation eh mga masters.

Ano mga kailangan?

DL ka lng ng Proteus sis sa 4shared.. pwde na ang 7.7 sp2 version.. ung my kasaling susi na pangbasag at english patcher... then install mo un... at basagin

para mkapagstart ka ng simulations... DL mo ung proteus .DSN file na enapload ni princess sa pg.2
pic16f628a 5x7 LED DISPLAY (Daltanics)

then open mo ung files... bubukas yan sa proteus soft app...
sunod mo nmn ung .Hex file ni sis daltanics....click mo lng ang pic16f628a sa schem at ebrowse ang hex file.. tapos play mo na...


_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by james on Mon Jun 10, 2013 11:21 pm

Salamat po mga sir. Subukan kung gawin ayun sa mga tinuro ninyo.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by daltanics on Wed Jun 12, 2013 2:02 am


ito ang genamit ko sa pag write sa 16f628a ,kahit 16f84 sya pero parehas lang ang pin nila sa 16f628a,di kaya dito nagka problema.kaya di gumana sa actual?

daltanics
AA Battery
AA Battery

Posts : 118
Join date : 2011-10-30
Age : 36
Location : davao city

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by Digitap on Wed Jun 12, 2013 12:50 pm

kuya daltanics, baka may problema sa hardware. successful po ba ang pag write niya? ang alam ko kasi. puede po ang programmer na yan sa 628a

ultrasonic™ wrote:
btw... regarding sa pag edit ng hex data parameter sa winPic Prog
my secret ba to paano basahin..ang dami kasi eh... (T_T

check mo PM ko sir
or puede mong pulutan ng aral ang code nato sa Proton basic Language

Code:
Device=16F628A
XTAL=4
ALL_DIGITAL=true
Output PORTB
Output PORTA
Symbol SER = PORTB.0 ' Serial data Pin
Symbol SRCLK = PORTB.1 ' Serial data Clock Pin
Symbol SRClr = PORTB.2 ' Serial data Clear
Symbol Latch = PORTB.3 ' Columns, Latch
High SRClr ' Turn off the serial register clear
Dim serial_buffer[120] As Byte
STR serial_buffer = "Moving Message Display and many other Microcontroller Project can be downloaded free from www.PICinf.blogspot.com" , 0
Symbol selectline PORTA
Dim row As Byte
Dim character_counter As Byte
Dim general_index As Byte
dim charcter as byte
dim scrolling as byte
dim ch_index as byte
dim start_ch_idx as byte
dim end_ch_idx as byte
for general_index =0 to 120
if serial_buffer[general_index]>0 then serial_buffer[general_index] =serial_buffer[general_index]-32
next general_index
' setup for positive pulses:
lATCH = 0 : SRCLK = 0 : SER = 0
start_ch_idx =0
end_ch_idx = 120
Loop:
For row =0 To 6
ch_index = start_ch_idx
for character_counter = 0 to 9
GoSub Get_Pattern
inc ch_index
if ch_index = end_ch_idx then ch_index =0
next character_counter
PulsOut Latch,4
selectline = row
DelayUS 250
'selectline = 7
for character_counter = 0 to 7
SHOut SER,SRCLK,lsbfirst,[0]
next character_counter
PulsOut Latch,4
Next row
inc scrolling
if scrolling = 10 then
scrolling = 0
Inc start_ch_idx
If start_ch_idx = end_ch_idx Then start_ch_idx = 0
endif
GoTo Loop
End
Get_Pattern:

charcter = LRead LABEL+((serial_buffer[ch_index]) * 8) + row
charcter = ~charcter
' out a clock pulse and one bit on data pin
'out the low 5 bits of pattern

If charcter.4 = 1 Then SER = 1
SRCLK = 1 : SRCLK = 0: SER = 0
If charcter.3 = 1 Then SER = 1
SRCLK = 1 : SRCLK = 0: SER = 0
If charcter.2 = 1 Then SER = 1
SRCLK = 1 : SRCLK = 0: SER = 0
If charcter.1 = 1 Then SER = 1
SRCLK = 1 : SRCLK = 0: SER = 0
If charcter.0 = 1 Then SER = 1
SRCLK = 1 : SRCLK = 0: SER = 0
SRCLK = 1 : SRCLK = 0: SER = 0
Return

LABEL:
LDATA $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF 'Space
LDATA $FB,$FB,$FB,$FB,$FB,$FF,$FB,$FF '!
LDATA $F5,$F5,$F5,$FF,$FF,$FF,$FF,$FF '"
LDATA $F5,$F5,$E0,$F5,$E0,$F5,$F5,$FF '#
LDATA $FB,$F0,$EB,$F1,$FA,$E1,$FB,$FF '$
LDATA $E3,$EA,$E5,$FB,$F4,$EA,$F8,$FF '%
LDATA $F7,$EB,$EB,$F7,$EA,$ED,$F2,$FF '&
LDATA $F9,$F9,$FD,$FB,$FF,$FF,$FF,$FF ''
LDATA $FD,$FB,$F7,$F7,$F7,$FB,$FD,$FF '(
LDATA $F7,$FB,$FD,$FD,$FD,$FB,$F7,$FF ')
LDATA $FB,$EA,$F1,$FB,$F1,$EA,$FB,$FF '*
LDATA $FF,$FB,$FB,$E0,$FB,$FB,$FF,$FF '+
LDATA $FF,$FF,$FF,$F3,$F3,$FB,$F7,$FF ',
LDATA $FF,$FF,$FF,$F1,$FF,$FF,$FF,$FF '-
LDATA $FF,$FF,$FF,$FF,$FF,$F3,$F3,$FF '.
LDATA $FF,$FE,$FD,$FB,$F7,$EF,$FF,$FF '/
LDATA $F1,$EE,$EC,$EA,$E6,$EE,$F1,$FF '0
LDATA $FB,$F3,$FB,$FB,$FB,$FB,$F1,$FF '1
LDATA $F1,$EE,$FE,$F1,$EF,$EF,$E0,$FF '2
LDATA $F1,$EE,$FE,$F9,$FE,$EE,$F1,$FF '3
LDATA $FD,$F9,$F5,$ED,$E0,$FD,$FD,$FF '4
LDATA $E0,$EF,$E1,$FE,$FE,$FE,$E1,$FF '5
LDATA $F9,$F7,$EF,$E1,$EE,$EE,$F1,$FF '6
LDATA $E0,$FE,$FD,$FB,$F7,$F7,$F7,$FF '7
LDATA $F1,$EE,$EE,$F1,$EE,$EE,$F1,$FF '8
LDATA $F1,$EE,$EE,$F0,$FE,$FD,$F3,$FF '9
LDATA $FF,$F3,$F3,$FF,$F3,$F3,$FF,$FF ':
LDATA $F3,$FB,$F3,$F3,$FF,$F3,$F3,$FF ';
LDATA $FD,$FB,$F7,$EF,$F7,$FB,$FD,$FF ' < '''

LDATA $FF,$FF,$F1,$FF,$F1,$FF,$FF,$FF ' =
LDATA $F7,$FB,$FD,$FE,$FD,$FB,$F7,$FF  '  >
LDATA $F1,$EE,$FE,$FD,$FB,$FF,$FB,$FF '?
LDATA $F1,$EE,$FE,$F2,$EA,$EA,$F1,$FF '@
LDATA $FB,$F5,$EE,$EE,$E0,$EE,$EE,$FF 'A
LDATA $E1,$F6,$F6,$F1,$F6,$F6,$E1,$FF 'B
LDATA $F1,$EE,$EF,$EF,$EF,$EE,$F1,$FF 'C
LDATA $E1,$F6,$F6,$F6,$F6,$F6,$E1,$FF 'D
LDATA $E0,$EF,$EF,$E3,$EF,$EF,$E0,$FF 'E
LDATA $E0,$EF,$EF,$E3,$EF,$EF,$EF,$FF 'F
LDATA $F1,$EE,$EF,$E8,$EE,$EE,$F1,$FF 'G
LDATA $EE,$EE,$EE,$E0,$EE,$EE,$EE,$FF 'H
LDATA $F1,$FB,$FB,$FB,$FB,$FB,$F1,$FF 'I
LDATA $F8,$FD,$FD,$FD,$FD,$FD,$F3,$FF 'J
LDATA $EE,$ED,$EB,$E7,$EB,$ED,$EE,$FF 'K
LDATA $EF,$EF,$EF,$EF,$EF,$EF,$E0,$FF 'L
LDATA $EE,$E4,$EA,$EA,$EE,$EE,$EE,$FF 'M
LDATA $EE,$E6,$EA,$EC,$EE,$EE,$EE,$FF 'N
LDATA $F1,$EE,$EE,$EE,$EE,$EE,$F1,$FF 'O
LDATA $E1,$EE,$EE,$E1,$EF,$EF,$EF,$FF 'P
LDATA $F1,$EE,$EE,$EE,$EA,$ED,$F2,$FF 'Q
LDATA $E1,$EE,$EE,$E1,$EB,$ED,$EE,$FF 'R
LDATA $F1,$EE,$EF,$F1,$FE,$EE,$F1,$FF 'S
LDATA $E0,$FB,$FB,$FB,$FB,$FB,$FB,$FF 'T
LDATA $EE,$EE,$EE,$EE,$EE,$EE,$F1,$FF 'U
LDATA $EE,$EE,$EE,$F5,$F5,$FB,$FB,$FF 'V
LDATA $EE,$EE,$EE,$EA,$EA,$E4,$EE,$FF 'W
LDATA $EE,$EE,$F5,$FB,$F5,$EE,$EE,$FF 'X
LDATA $EE,$EE,$F5,$FB,$FB,$FB,$FB,$FF 'Y
LDATA $E0,$FE,$FD,$FB,$F7,$EF,$E0,$FF 'Z
LDATA $F1,$F7,$F7,$F7,$F7,$F7,$F1,$FF '[
LDATA $FF,$EF,$F7,$FB,$FD,$FE,$FF,$FF 'backslash
LDATA $F1,$FD,$FD,$FD,$FD,$FD,$F1,$FF '[
LDATA $FB,$F5,$EE,$FF,$FF,$FF,$FF,$FF '^
LDATA $FF,$FF,$FF,$FF,$FF,$FF,$E0,$FF 'underline
LDATA $F3,$F3,$F7,$FB,$FF,$FF,$FF,$FF ''
LDATA $FF,$FF,$F1,$FE,$F0,$EE,$F1,$FF 'a
LDATA $EF,$EF,$E9,$E6,$EE,$E6,$E9,$FF 'b
LDATA $FF,$FF,$F8,$F7,$F7,$F7,$F8,$FF 'c
LDATA $FE,$FE,$F2,$EC,$EE,$EC,$F2,$FF 'd
LDATA $FF,$FF,$F1,$EE,$E0,$EF,$F1,$FF 'e
LDATA $F9,$F6,$F7,$E1,$F7,$F7,$F7,$FF 'f
LDATA $FF,$FF,$F0,$EE,$F0,$FE,$F1,$FF 'g
LDATA $EF,$EF,$E9,$E6,$EE,$EE,$EE,$FF 'h
LDATA $FB,$FF,$F3,$FB,$FB,$FB,$F1,$FF 'i
LDATA $FD,$FF,$F9,$FD,$FD,$FD,$F3,$FF 'j
LDATA $F7,$F7,$F6,$F5,$F3,$F5,$F6,$FF 'k
LDATA $F3,$FB,$FB,$FB,$FB,$FB,$F1,$FF 'l
LDATA $FF,$FF,$E5,$EA,$EA,$EA,$EA,$FF 'm
LDATA $FF,$FF,$E9,$E6,$EE,$EE,$EE,$FF 'n
LDATA $FF,$FF,$F1,$EE,$EE,$EE,$F1,$FF 'o
LDATA $FF,$FF,$E1,$EE,$E1,$EF,$EF,$FF 'p
LDATA $FF,$FF,$F0,$EE,$F0,$FE,$FE,$FF 'q
LDATA $FF,$FF,$E9,$E6,$EF,$EF,$EF,$FF 'r
LDATA $FF,$FF,$F0,$EF,$F1,$FE,$E1,$FF 's
LDATA $FB,$FB,$F0,$FB,$FB,$FB,$FC,$FF 't
LDATA $FF,$FF,$EE,$EE,$EE,$EC,$F2,$FF 'u
LDATA $FF,$FF,$EE,$EE,$EE,$F5,$FB,$FF 'v
LDATA $FF,$FF,$EE,$EE,$EA,$EA,$F4,$FF 'w
LDATA $FF,$FF,$EE,$F5,$FB,$F5,$EE,$FF 'x
LDATA $FF,$FF,$EE,$F5,$FB,$FB,$F3,$FF 'y
LDATA $FF,$FF,$E0,$FD,$FB,$F7,$E0,$FF 'z
LDATA $F9,$F7,$F7,$E7,$F7,$F7,$F9,$FF '{
LDATA $FB,$FB,$FB,$FF,$FB,$FB,$FB,$FF '|
LDATA $F3,$FD,$FD,$FC,$FD,$FD,$F3,$FF '}
LDATA $F5,$EA,$FF,$FF,$FF,$FF,$FF,$FF '~
LDATA $F5,$EA,$F5,$EA,$F5,$EA,$F5H 'DEL

na gamit ang circuit nato


Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by Digitap on Wed Jun 12, 2013 12:56 pm

sorry po pala. kuya daltanics. di ko pa natatapos ang pcb niyo. na busy po kasi. pero malapit na po ako matapos

Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by james on Wed Jun 12, 2013 2:02 pm

Sir ultrasonic san ko ba madodownload yung sabi mong design file ba yun ni maam princess? Di ko kasi makita.

Maam patulong po.

Input: Sir admin gamitin mo yung pic eeprom programmer ni maam princess sa pagload ng firmware. Subok mo lang.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by ultrasonic™ on Fri Jun 14, 2013 4:37 pm

@sis james eto ang direct link
Code:
http://www.4shared.com/rar/-uCINYk2/pic16f628a_5x7_LED_DISPLAY__Da.html

@princess mas lalo mo ata akng ginulo... di ko masxadong ma getz... pero tnx.. aaralin ko na rin yan at ang mga pm mo. tamang tama my bigay ng Proton compiler si sis kasam sa akin sa elab (^_^

@sis daltanics  san ka my error? bka maencounter ko yan sa susunod

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by james on Fri Jun 14, 2013 5:34 pm

Maraming salamat sir ultrasonic.


Problema natabunan na yata yung iba kong file dito scratch

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by daltanics on Mon Jun 17, 2013 1:37 am


ultrasonic™ wrote:
daltanics wrote:good job you did it... master ultrasonic baliktad mo connection ng colum, or rows para mabasa yong future name ng shop ko.PARA MA EDIT MO E OPEN MO HEX FILE SA PIC PROG OR ICPROG  TAPOS EDIT MO LETTERS SA EEPROM ADDRESS NYA,SANA MAGAWAN NYO NG PCB.THANKS SA
POINTS MASTER ULTRASONIC.

pwde na kaya.. e mirror ko nlng  (^_^



btw... regarding sa pag edit ng hex data parameter sa winPic Prog



my secret ba to paano basahin..ang dami kasi eh...   (T_T

james wrote:Paturo naman kung paano gumawa nyan noob sa simulation eh mga masters.

Ano mga kailangan?

DL ka lng ng Proteus sis sa 4shared.. pwde na ang 7.7 sp2 version.. ung my kasaling susi na pangbasag at english patcher... then install mo un... at basagin

para mkapagstart ka ng simulations...  DL mo ung proteus .DSN file na enapload ni princess sa pg.2
pic16f628a 5x7 LED DISPLAY (Daltanics)

then open mo ung files... bubukas yan sa proteus soft app...
sunod mo nmn ung .Hex file ni sis daltanics....click mo lng ang pic16f628a sa schem at ebrowse ang hex file.. tapos play mo na...


ito genamit ko sa pag edit sa display.tama kaya ito miss beautiful?@master ultrasonic subukan mo ito kung may time ka,,,thanks

daltanics
AA Battery
AA Battery

Posts : 118
Join date : 2011-10-30
Age : 36
Location : davao city

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by james on Mon Jun 17, 2013 1:06 pm

Thanks nabuksan ko na.

Di nga lang ako marunong pa ng pro t e us. Isang click ko sa screen nawawala yung design. Kaasar.

Tapos sinubukan kong palitan yung message di na gumagana kapag niload ko yung modified.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by ultrasonic™ on Tue Jun 18, 2013 7:18 pm

ah almost same ng approach sa pm... tnx... sis daltanics... +1
iba lang ang pnagamit na GUI... gus2 ko ding gumawa nito sa actual...  sana magawan na natin ng pcb design

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by DJFEL on Wed Jun 19, 2013 9:41 pm

sub mona neto...pake pm ren yong lahat nang diagram neto para pang aralan ko eto..para gawa ako pcb neto..

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by james on Thu Jun 20, 2013 4:22 pm

Up wala yata mga masters dito.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by james on Wed Jun 26, 2013 6:26 pm

Kumusta na mga kapatid? Any update sa pagkulikot ninyo?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by ultrasonic™ on Thu Jun 27, 2013 2:42 pm

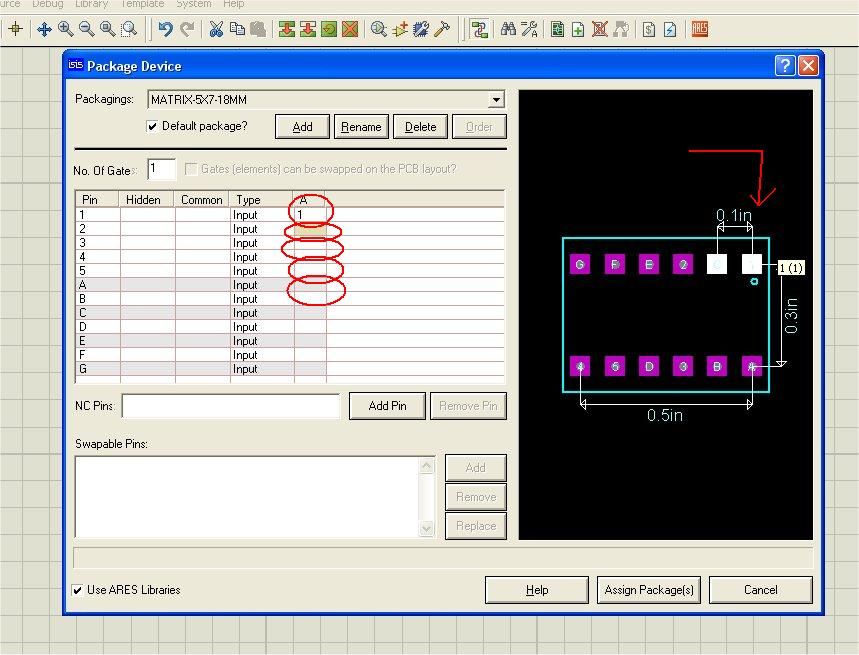

dahil sa tagal ni princess... i tried na gawan ng pcb eh kaso.. di ako masxadong bihasa sa prot*us. ang isa pa sa probz ko.. about sa 5x7 dot matrix... kong ano exact pinning arrangement nitong 18mm or 50mm... limot ko na ang pin config... dumagdag pag nawala ang mga hard copies ko dhil sa flashflood.. stranded tuloy ako sa pcb... (T_T



btw.. kng sino.. nkakaalam. can u gave me a helping hand (^_^

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: NEED HELP FOR MY PROJECT 5X7 LED DISPLAY USING PIC 16F628A

Post by Sponsored content Today at 6:17 am


Sponsored content


Back to top Go down

Page 2 of 3 Previous  1, 2, 3  Next

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
