Goldstar TV ( Chassis NC-6HA ) Eboard: 6870VM0033A(2)

Post by ultrasonic™ on Tue Nov 08, 2011 12:22 pm

Model Series:

CN-14/20D90
CN-14/20D99
CN-14/20D90G
CN-14/20D99G


Chassis NC-6HA
Eboard: 6870VM0033A(2)
961224 R.B.P






http://i1094.photobucket.com/albums/i453/aelexianempire/TV chassis board/GoldstarChassisNC-6HA_zpsb4eaeac0.jpg

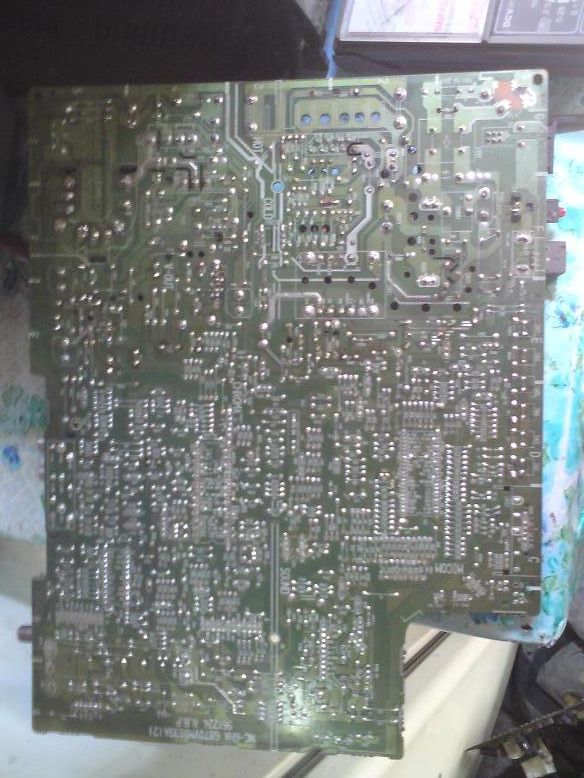

http://i1094.photobucket.com/albums/i453/aelexianempire/TV chassis board/GoldstarChassisNC-6HAboard_zpsdc451f61.jpg


Partlist:

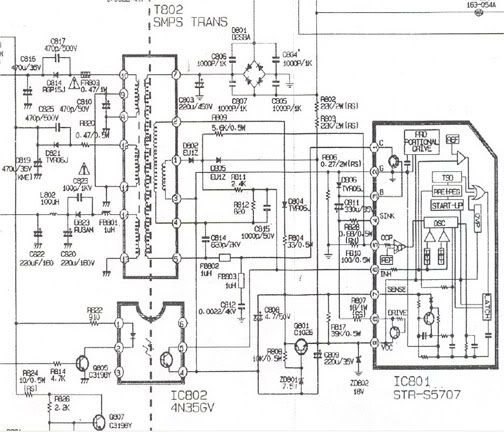

Power Reg.: STR-S5707
EEPROM : AT24C02
System: UPC1862
Jungle: LA7670
AV SW.: GL3812
A SW: GL3230
Vertical : LA7840
HOT: D2499
FBT : 154-394A





Chassis NC-6HA
passcode: my id number

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Goldstar TV ( Chassis NC-6HA ) Eboard: 6870VM0033A(2)

Post by nolds on Tue Feb 28, 2012 1:15 pm

any body can give me the service mode of old model lg tv with chasis nc -6ha

nolds
AAA Battery
AAA Battery

Posts : 20
Join date : 2012-02-28
Age : 47

Back to top Go down

Re: Goldstar TV ( Chassis NC-6HA ) Eboard: 6870VM0033A(2)

Post by ultrasonic™ on Sat May 24, 2014 4:21 pm

pa insert nito mga admin.. tia   ^_^

Code:


http://i1094.photobucket.com/albums/i453/aelexianempire/ultra/GoldstarChassisNC-6HA_zps5acbf579.jpg


http://i1094.photobucket.com/albums/i453/aelexianempire/TV chassis board/GoldstarChassisNC-6HA_zpsb4eaeac0.jpg



http://i1094.photobucket.com/albums/i453/aelexianempire/ultra/GoldstarChassisNC-6HAboard_zpsb4088165.jpg

http://i1094.photobucket.com/albums/i453/aelexianempire/TV chassis board/GoldstarChassisNC-6HAboard_zpsdc451f61.jpg

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Goldstar TV ( Chassis NC-6HA ) Eboard: 6870VM0033A(2)

Post by Hertz on Sun Jul 12, 2015 9:31 pm

done
