JVC 21BA17B problem

Post by willyboy on Fri Oct 28, 2011 11:40 pm

mga brod.. patulong uli.. kasi yung JVC TV ko... sira din Laughing
pag nag on ka. red light indicator sa baba tv is on. but if you push any button, black screen pa rin, red light indicator is on, but you can hear ng tick tick, tick tick, tick tick ( parang trying to switch on and off )
then mawala yung tick sound. but if you push any button uli.. tick sound uli..

what is the possible cause kaya mga brod... patulong nman,, GOD bless !!! Laughing


willyboy
AA Battery
AA Battery

Posts : 74
Join date : 2011-10-28
Location : Muntinlupa / Bocaue Bulacan

Back to top Go down

Re: JVC 21BA17B problem

Post by Electro on Sat Oct 29, 2011 12:21 pm

mukhang may shorted kayong parts sa secondary willyboy. check mong maigi. ang horizontal output transistor mo baka shorted na. kong may zener diode ang tv mo na parang r2ks ang larawan. check mo din.

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: JVC 21BA17B problem

Post by willyboy on Sun Oct 30, 2011 9:38 am

brod..baka may schematic diagram ka nman dyan or yung mga ka brod natibn d2..need ko lang sa model na ito.. what do you think other cause kung ok naman yung transistor..

ok din yung zener diode

thanks uli sa tulong brod..

willyboy
AA Battery
AA Battery

Posts : 74
Join date : 2011-10-28
Location : Muntinlupa / Bocaue Bulacan

Back to top Go down

Re: JVC 21BA17B problem

Post by Hertz on Thu Nov 03, 2011 4:44 pm


willy baka shorted ang Horizontal transistor mo. na check mo na ba iyan ?

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: JVC 21BA17B problem

Post by Electro on Fri Nov 04, 2011 11:54 am


master willy ano ano ang mga piyesa sa loob ? baka may board ako dito na katulad niyan. regulator. system. jungle. baka may chassis iyan master post mo na lang

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: JVC 21BA17B problem

Post by daltanics on Sat Nov 05, 2011 1:15 am

ehang yong b+ papuntang fbt tapos sukatin ang voltage kung tama.

daltanics
AA Battery
AA Battery

Posts : 118
Join date : 2011-10-30
Age : 36
Location : davao city

Back to top Go down

Re: JVC 21BA17B problem

Post by willyboy on Sun Nov 06, 2011 11:06 am

mga brod.. yung ticking on and off sa relay nawala.. kaso napunta naman yung tick sound sa FLYBACK.. wahhhhhh..lumipat lang,, paano kaya yun.. ok nman mga diode at transistor upon component testing..

yung board model e ito po :GG10041-001DH

willyboy
AA Battery
AA Battery

Posts : 74
Join date : 2011-10-28
Location : Muntinlupa / Bocaue Bulacan

Back to top Go down

Re: JVC 21BA17B problem

Post by willyboy on Sun Nov 06, 2011 11:25 am

NGA PLA MG BROD. PINALITAN KO NA ANG MGA PARTS NA ITO .
1.120RDA1
2.050RDA1
3.SE115

mga ecaps sa paligid nito..

them ng ticking of sound lumipat sa Flyback

willyboy
AA Battery
AA Battery

Posts : 74
Join date : 2011-10-28
Location : Muntinlupa / Bocaue Bulacan

Back to top Go down

Re: JVC 21BA17B problem

Post by Electro on Mon Nov 07, 2011 3:38 pm


subukan niyo palitan ang mga matataas na value na capacitor master sa horizontal malapit sa flybak. lalo na ang mga 1K6V. pag hindi nawala baka flybak na po iyan

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: JVC 21BA17B problem

Post by totoy on Tue Nov 08, 2011 2:40 pm

try u palitan ang ecaps sa primary and secndary section of power supply and on horizontal section.

totoy
AAA Battery
AAA Battery

Posts : 14
Join date : 2011-03-08
Age : 30
Location : cavite

Back to top Go down

Re: JVC 21BA17B problem

Post by daltanics on Tue Nov 08, 2011 3:28 pm

epost mo ddito kung ilan ang voltage sa secondary.baka naka protect yan or kulang yong voltage.check feed back sa photo coupler.

daltanics
AA Battery
AA Battery

Posts : 118
Join date : 2011-10-30
Age : 36
Location : davao city

Back to top Go down

Re: JVC 21BA17B problem

Post by ultrasonic™ on Thu Nov 10, 2011 4:01 pm


@TS ilan ang B+ mu sis ?

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4157
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: JVC 21BA17B problem

Post by willyboy on Wed Jan 04, 2012 12:37 am

mga brod..im back..nafree lang uli..nag change na ako ng mga capacitor sa tabi ng Flyback at yung horizontal tansistor nito pinalitan ko na rin ( yung katabi ng flyback)

pero ganun pa din...

when you turn on TV ( red light indicator is on )
but when you switch on channel. mag tick tick tick sound lang sya

pa assist nman uli mga..brod

sensya na ha.. di kasi ako tv tech..electromechanical line ko,, salamat po


willyboy
AA Battery
AA Battery

Posts : 74
Join date : 2011-10-28
Location : Muntinlupa / Bocaue Bulacan

Back to top Go down

Re: JVC 21BA17B problem

Post by willyboy on Wed Jan 04, 2012 11:48 am

mga brod..pasensya uli. pa ask lang..i have these color pink resistor
at mga 8pcs cla..
itong pink resistor na ito ay may printed kung ilang ohms sila or Kiloohms..

ang ask ko lang,i do have digital tester with sound. yung iba pag test ko with sound eh may tunog.. yung iba wala..

but if i switch on nman sa OHMS tester, lahat may reading..at tama sa printed ohms nito sa body.

ask kolang..kasi expert kayo d2. bakit yung iba eh may sound continuity at yung iba wala..aling ba dun angtama??

yung may sound??? or bka shorted yun
o yung wala?does it mean pag walang sound eh okyun.??

sensya mga tol..di ko linya tv repair pero talagang gustoko matuto nito..

salamat

willyboy
AA Battery
AA Battery

Posts : 74
Join date : 2011-10-28
Location : Muntinlupa / Bocaue Bulacan

Back to top Go down

Re: JVC 21BA17B problem

Post by willyboy on Wed Jan 04, 2012 11:53 am

mga brod.. wirewound resistor yata tawagdun Laughing

willyboy
AA Battery
AA Battery

Posts : 74
Join date : 2011-10-28
Location : Muntinlupa / Bocaue Bulacan

Back to top Go down

Re: JVC 21BA17B problem

Post by Electro on Wed Jan 04, 2012 2:48 pm

pink ang kulay. baka hindi na resistor yan master willy. ano pala nakalagay sa board? nagsisimula pa rin ba sa lett er R ang nasa board> r231. r324 parang ganun. sana maipost mo ang image niya dito para mas makita namin.

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: JVC 21BA17B problem

Post by Electro on Wed Jan 04, 2012 2:55 pm

ay master willy. baka hindi sila pareho ng value may color coded kasi ang mga resistor. http://www.ealnet.com/m-eal/resistor/resistor.htm
iyong mga mababa ang value gaya ng mga 1ohm. 5ohm 10ohm ay tutunog na iyan sa tester. ganyan ang tester ko na wheeler


Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: JVC 21BA17B problem

Post by willyboy on Wed Jan 04, 2012 3:05 pm

ganun ba? bakit kaya ganun pa rin.napalitan ko nalahat capacitor sa primary atsecondary pati na rin satabi ng flyback..pati horizontal IC bago na rin..

pag on.,.led light on
thenpag pindotmo sa mga chanelor volume..you can hear tick sound..
3x tick sound

then wala nman display..nakailawparin yung on led light

hirap kasi akomagkuha ng voltahe eh..

any idea?

willyboy
AA Battery
AA Battery

Posts : 74
Join date : 2011-10-28
Location : Muntinlupa / Bocaue Bulacan

Back to top Go down

Re: JVC 21BA17B problem

Post by Electro on Wed Jan 04, 2012 4:07 pm


master willy baka mababa o mataas ang b+ mo. check mo at ipost dito. pwede kasi sapat na dahilan na iyon para magka on ang protection ng tv

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: JVC 21BA17B problem

Post by willyboy on Wed Jan 04, 2012 4:33 pm

brod..anu password ng mga diagram saforum. nag download kasi ako..kaso RARpassword protection eh

willyboy
AA Battery
AA Battery

Posts : 74
Join date : 2011-10-28
Location : Muntinlupa / Bocaue Bulacan

Back to top Go down

Re: JVC 21BA17B problem

Post by Electro on Wed Jan 04, 2012 4:57 pm


sttm ang kadalasan nilalagay na password ng mga master dito

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: JVC 21BA17B problem

Post by willyboy on Wed Jan 04, 2012 5:14 pm

salamat bossing...naopen ko na

willyboy
AA Battery
AA Battery

Posts : 74
Join date : 2011-10-28
Location : Muntinlupa / Bocaue Bulacan

Back to top Go down

Re: JVC 21BA17B problem

Post by willyboy on Thu Jan 05, 2012 9:05 pm

boss..patulong..paano kumuha ng B+ pasensya bossing ha... baguhan ako sa TV.. at challenging talaga ito

willyboy
AA Battery
AA Battery

Posts : 74
Join date : 2011-10-28
Location : Muntinlupa / Bocaue Bulacan

Back to top Go down

Re: JVC 21BA17B problem

Post by ultrasonic™ on Fri Jan 06, 2012 2:18 pm

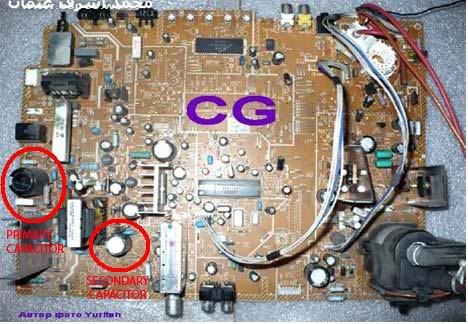

hanapin mu lng ang secondary filter capacitor, yan ang mgsisilbi mung test point

pra di maligaw hanapin mu lng ang pumapangalawa sa pnakamalaking capacitor sa board... na mlapit sa chopper transformer at may value na my working voltage na 160V or 250V. kdalasan value nyan ay 100uf, 220uf &etc.

eto sample pics JVC board din. CG chassis nga lng...

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4157
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: JVC 21BA17B problem

Post by Electro on Sat Jan 07, 2012 4:05 pm



master willy sundan mo lang si master ultrasonic™. pwede din sa pin ng flybak magsukat

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City
