DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by ultrasonic™ on Mon Oct 24, 2011 3:03 pm

.

Support 24C01, 24C02, 24C04, 24C08, 24C16 I²C Bus EEPROM

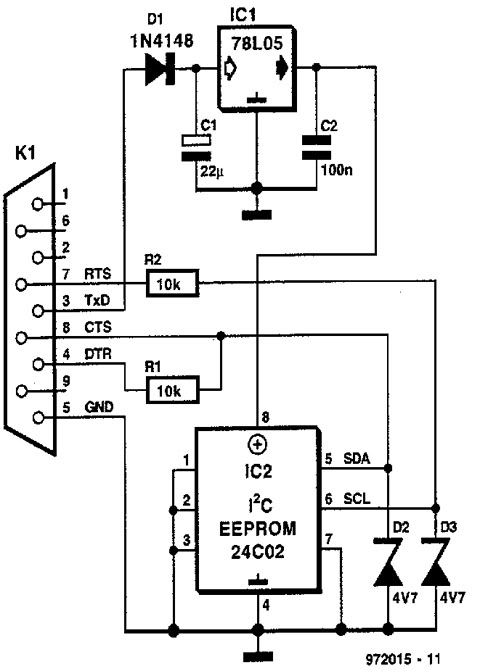

Schematic Diagram

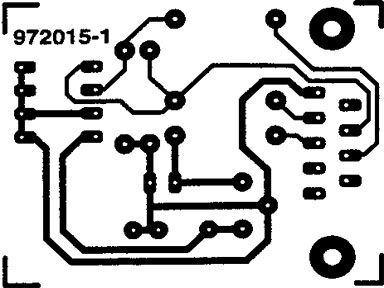

PCB Layout

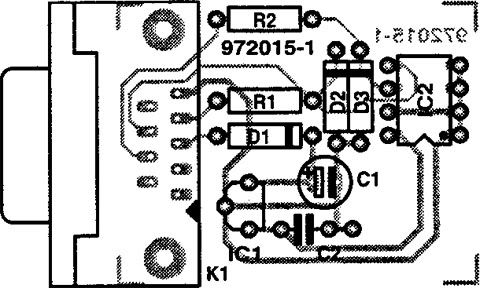

Component Placement Guide

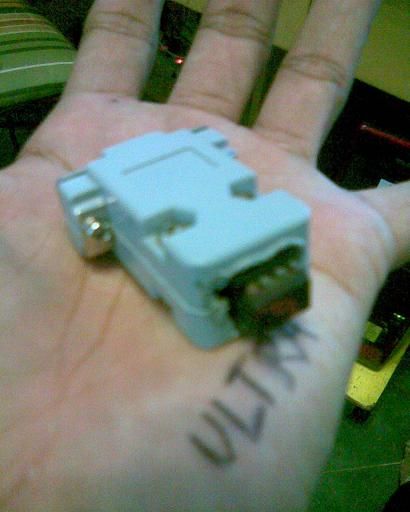

Finish Product



Accessories


http://www.lancos.com/prog.html
Download PonyProg
TV EEPROM DUMP

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by peter on Thu Oct 27, 2011 8:57 pm

thanks master ultra

i'm pete your sister hehehe

peter
AAA Battery
AAA Battery

Posts : 45
Join date : 2011-10-09
Location : pasig

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by rolando cerezo on Thu Oct 27, 2011 9:47 pm

sir ultra pa PM naman po ng passcode dito sa TV EEPROM DUMP

rolando cerezo
AAA Battery
AAA Battery

Posts : 36
Join date : 2011-08-30
Age : 47

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by Electro on Sat Oct 29, 2011 1:12 pm

makagawan na rin nito. salamat mga master

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by ultrasonic™ on Thu Nov 10, 2011 1:05 pm

peter wrote:thanks master ultra

i'm pete your sister hehehe

oie ikaw pala yan sis pete.. welcome dito..
puro pasaway ang member dito

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by peter on Fri Nov 11, 2011 4:47 pm

hehehe thanks sis


peter
AAA Battery
AAA Battery

Posts : 45
Join date : 2011-10-09
Location : pasig

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by mighty12 on Mon Jan 30, 2012 12:58 am

sis Ultra salamat po dito, try ko pong gawin ito.... Pero gusto lang din po itanong my way po ba na magamit ito sa USB? kasi walang serial port ang laptop ko.

mighty12
AAA Battery
AAA Battery

Posts : 2
Join date : 2012-01-30

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by ultrasonic™ on Mon Jan 30, 2012 4:38 pm


^ naku kng through usb port na..ibang version na yun... try kng mangalkal nyan

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by mighty12 on Wed Feb 01, 2012 11:37 pm

ah ganun po ba, try ko muna tong serial port. Salamat Master

mighty12
AAA Battery
AAA Battery

Posts : 2
Join date : 2012-01-30

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by james on Fri Aug 03, 2012 7:05 pm

meron na po bang usb version?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by triac on Sun Sep 02, 2012 7:45 pm

sir ultra laptop ko gamit,di po ba ito pwede?USB versio na ba ang kailangan ko?

triac
D Battery
D Battery

Posts : 683
Join date : 2011-04-28

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by ultrasonic™ on Mon Sep 03, 2012 4:05 pm

^ di ako sure ha... meron kasing lappy na ayaw tlga.. pero try mung bumili ng usb-rs232 converter.. khit ung sa cdr-kong lng..


_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by triac on Tue Sep 04, 2012 9:49 am

sir ultra pwede makahingi nito?at ano ang password?thanks po..

triac
D Battery
D Battery

Posts : 683
Join date : 2011-04-28

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by ultrasonic™ on Tue Sep 04, 2012 11:32 am


passcode = xxxx ung standard dito

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by triac on Wed Sep 05, 2012 9:45 am

sir ultra d ko pa alam kung ano ang standard password dito.. Very Happy

triac
D Battery
D Battery

Posts : 683
Join date : 2011-04-28

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by ultrasonic™ on Wed Oct 31, 2012 4:22 pm

mrami kasing mga tanong sa akin sa PM na di ko masxadong ma entertain.. psenxa na mga sis.. medjo super bz lng sa work kya di ko msxadong naaasikaso ang request nyu...

ok dito ko nlng ipopost para mabasa ng mrami
pg nagawa nyu na ang serial eeprom programmer kit nyu... gaya nito





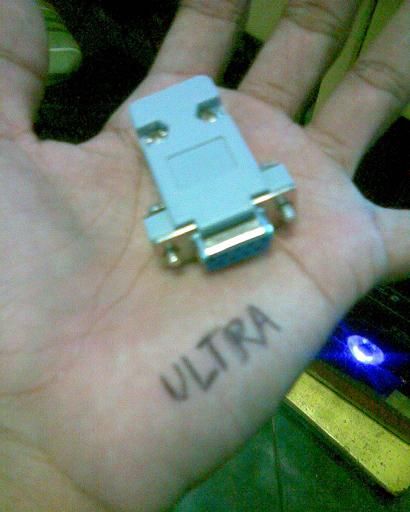

ready na ito for testing.. but before that
pg wla pa kaung PonyProg na nka-install sa computer.. you must to install it manually.. needed nyu ang installer nya (.exe). you can download it on their - lancos site na free lng...

btw needed nyu ang PonyProg kasi yan ang mgsisilbi nyung Software Driver ng Programmer kit nyu.. kng ihahambing natin sa Computer ng pgbuburn process ng CD media.. ang Ponyprog ay ang NERO at ang DVD/CD-rom player nyu naman ang Programmer kit nyu...

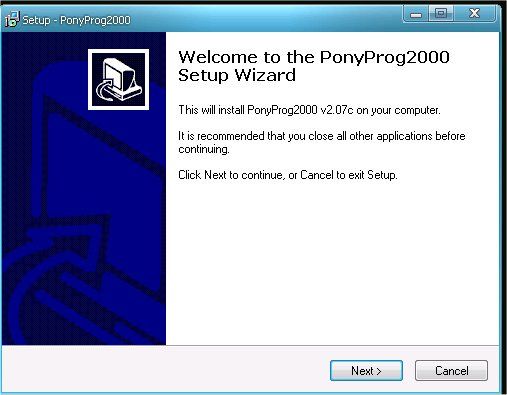

balik ulit tau.. pg na download nyu na ang installer.. click nyu lng ang setup.exe file



then follow the screen instruction.
click next

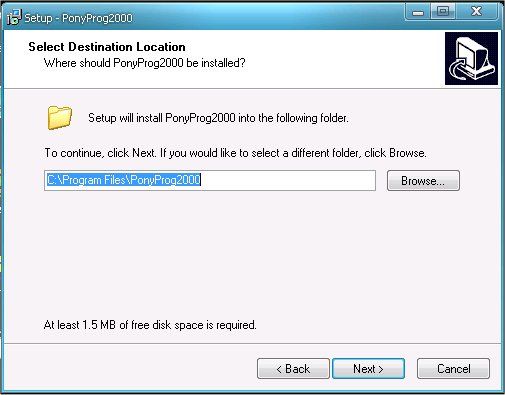

accept the terms & agreement at optional kng sa default C ba e e install nyu





then install at finish....
kng successful iyong pg-install nyu ng PonyProg ay dapat lalabas na ang application icon nyu sa Programs folder. [start menu>Programs>PonyProg]

for some optional reasons. nang di na mhirapan. you can drag the icon on desktop para mas madaling mkita or right click nyu ang icon, tapoz create more shortcuts..

on this tym pwde na kaung mgsimula. pwde nyu ng isasak iyong serial programmer nyu sa DB9 o likod ng computer nyu..
o actually pwde rin namang kanina nyu pa sinaksak yun (^_^ its also a optional lol!

then pg gusto nyu ng mag open ng Pony.. click nyu lng ang icon..

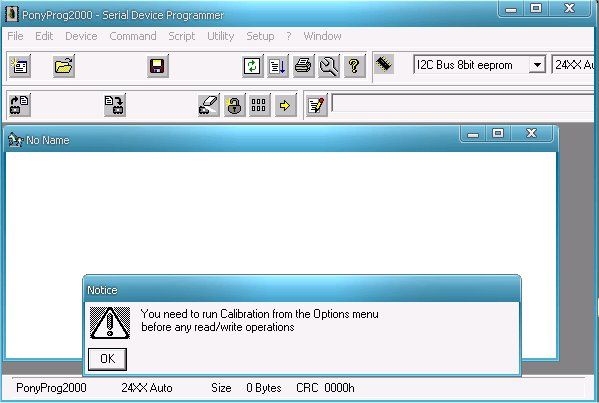

kng 1st time itong na open.. magpapa calibrate pa yan...
much better kng disable nyu muna ang sound para di ka magulat sa susunod na pg open nang di ka na maiisahan ng kabayong kmukha ni vice (^_^



then ok


this time kailangan nyu tlgang e calibrate
sundan nyu lng ito

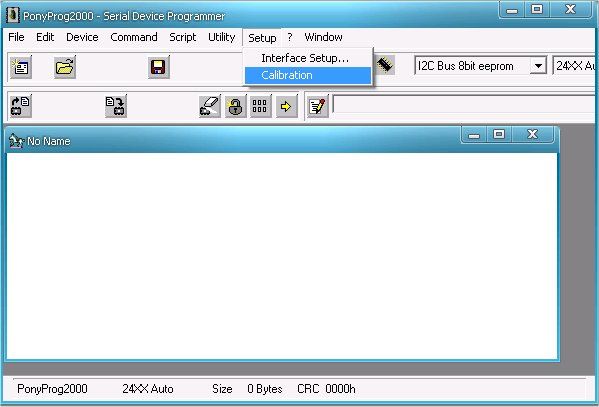

click mo setup
press mo calibration select yes "when asking bus timing"



wait for few seconds.. hnggang lumabas ang calibration ok



pgtapos na kau jan.. press mo uli ang setup

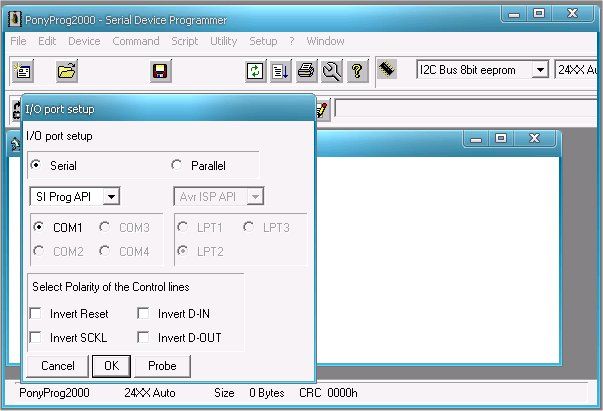

press mo interface setup. select mo ang (serial)
(SI prog API) at (com1). then finish na kau.. hayaan lng nka uncheck lhat ng polarity



ready na kau mag read at write ng EEPROM (^_^

post ko na rin dito ang video ni master woots ng mpulutan din natin ng aral

at ang summary compilation

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by ultrasonic™ on Wed Oct 31, 2012 6:20 pm

after na ito na matapos ung procedure sa itaas
ok simulan na natin gamitin ang Serial programmer...

assume na nkasaksak na ung S.programmer nyu sa DB9 ng computer nyu at may EEPROM ic (24Cxx) na ring nkalagay...

1. unahin nating aralin ang COPYING/SAVING DATA DUMP
kng gusto nyung kopyahin ang lamang ng EEPROM ic na galing sa working board ng TV/circuits. ito ang sundan nyu..

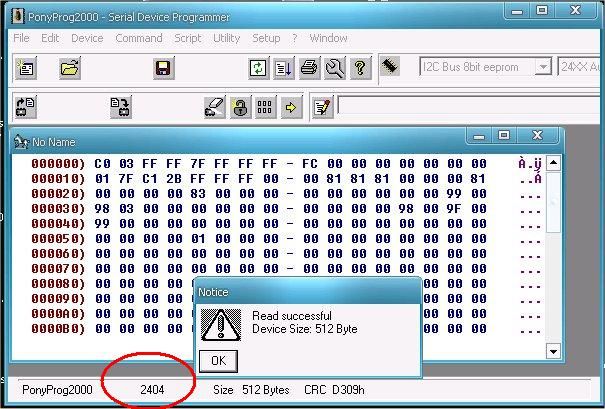

click nyu lng ang Read icon

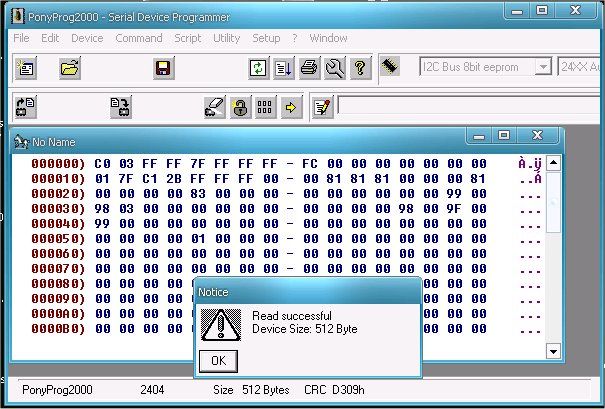

wait for few seconds until it will read fully hnggang my lalabas na read successful...




puro full of different numbers & letters ang lalabas kng may laman ang eeprom.. full of FF letters naman kng Blanko ito..



tapoz click ok...
then to save the dump file.. click mo lang ang diskette/save icon & lagyan nyu ng File name..



choose a desired location kng saan e se save. na madaling tandaan

tapos click nyu na ang Save..
that's the tym na my back up files na kau (^_^
congrats

_________________________________________________________

assume pa rin na nkasaksak na ung S.programmer nyu sa DB9 ng computer nyu at may EEPROM ic (24Cxx) na ring nkalagay...

2. WRITE / PROGRAMMING the EEPROM naman tayo
kng gusto nyu nmang mgwrite ng data o mgreprogram sa EEPROM
ito naman ang sundan nyu...


click nyu pa rin ang read icon, to be sure lng na nadedetect ang EEPROM na pglalagyan nyu...



wait pa rin ng few seconds until it will read fully hnggang my lalabas na read successful... pansinin kng tama ba ang eeprom mo

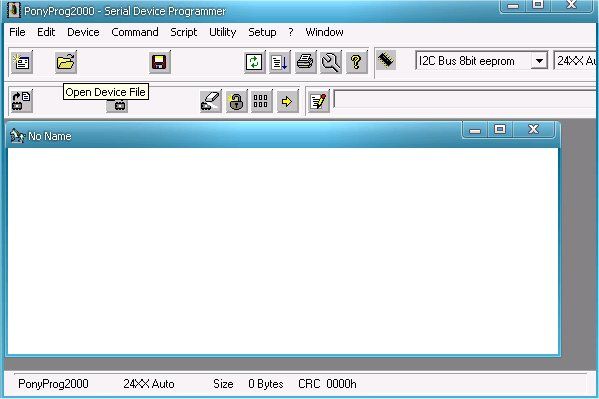

then click nyu ang folder/open icon



piliin ang files na e-wiwrite nyu sa EEPROM ic. e.g: LG CP-21T20A



tapos click ang open.. pansinin ulit ang number ng EEPROM.. pag tugma eto kanina ay pwede nyu ng e write device..

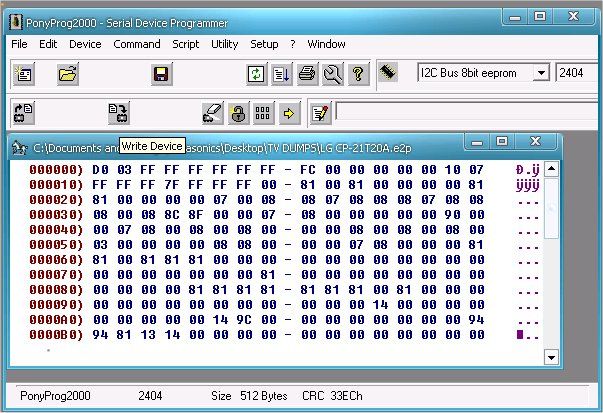

click nyu lng write at piliin ang yes pghihingi nang overwrite

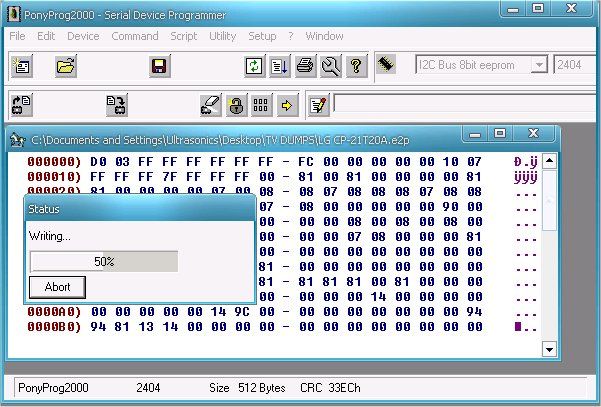

mgsisimula na yang mgwrite process..



wait for few seconds.. then boom..

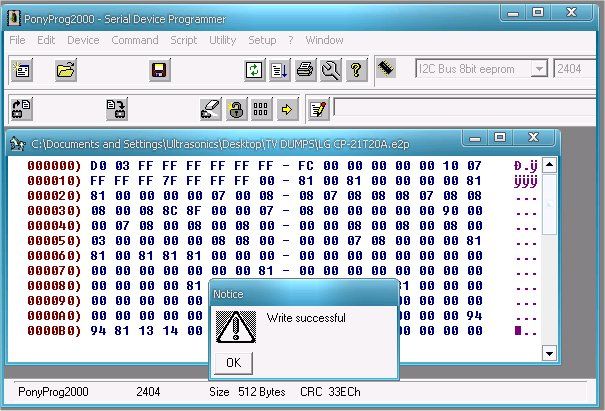

tapoz na lalot my mglabas na write successful..
to check/verify kng ok nga ba ang pagburn/pgprogram nyu sa eeprom
ay recommend kng tanggalin ang Programmer at eclose ang Pony..
insert ulit at open/run the pony.. then check nyu ang laman kng na esave nga ba.. pg pareho ay congrats


_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by james on Fri Nov 02, 2012 10:57 pm

Pwede po bang makahingi ng tutorial mo sir admin?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by Electro on Wed Nov 21, 2012 1:46 pm

+1 sayo master ultrasonic™

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by jeb2610 on Sat Jan 12, 2013 11:09 pm

master pwede paki indicate po ung mga specification ng mga component at material na gagamitin sa eeprom diy project na ito pra di ako mahirapan pag bili sa deeco thanks po

jeb2610
AAA Battery
AAA Battery

Posts : 14
Join date : 2012-11-12
Age : 40

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by triac on Fri Feb 01, 2013 9:26 am

sir ultra at mga sis,saan po ba nakaharap ang flat surface ng IC na 7805 sa RS232 O sa electrolytic capacitor?salamat po..

triac
D Battery
D Battery

Posts : 683
Join date : 2011-04-28

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by zandertech on Sat Feb 09, 2013 11:39 pm

sis ultra meron ba tayong serial version din for dvd eeproms nmn? thanks

zandertech
C Battery
C Battery

Posts : 297
Join date : 2011-09-29
Location : bulacan

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by DJFEL on Mon Mar 04, 2013 4:04 pm

pa ripost to..hinde na ma open sa 4shred..

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by electroman on Sun Mar 24, 2013 9:13 pm

sir ultra ask ko lng, saan nman kukuha ng data pra ipasok sa eefrom..?

electroman
AAA Battery
AAA Battery

Posts : 9
Join date : 2013-03-22

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by Hertz on Tue Dec 10, 2013 11:14 am

let me answer this. download niyo sa internet o back up kayo galing sa mismong working unit.

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: DIY EEPROM Programmer Kit (Serial Version) by Seph & Pete ng Elab

Post by Sponsored content Today at 6:14 pm


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
