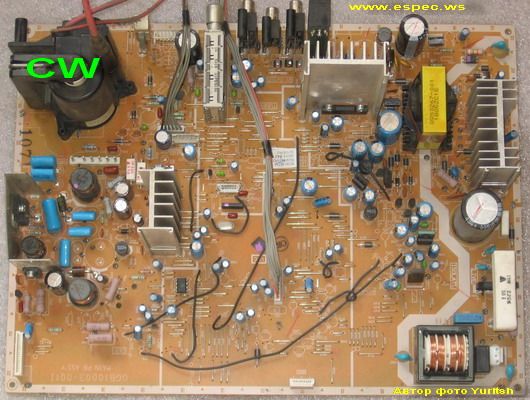

JVC TV ( Chassis CW ) E.board: GGB10010-001E

Post by ultrasonic™ on Tue Sep 27, 2011 1:34 pm

Model Series:

AV-21VT14
AV-21VT34

Chassis CW



Power Reg.: STR-W6756
EEPROM : AT24C16
UOC: TDA12027
Vertical : AN1522
RGB AMP: TDA6107AJF/N1
HOT: TT2190
FBT : QQH0188-001
Sound : AN5277
Tuner: QAU0353-001

Enter Service Menu
Press the [DISPLAY] key and the [PICTURE MODE] key on the remote control unit simultaneously.







JVC chassis CW


Last edited by ultrasonic™ on Mon Jan 23, 2012 2:08 pm; edited 1 time in total

_________________
6th member of STTM
former 2nd member

im always walking on the rain so that no one could see me crying
avatar
ultrasonic™
D Battery
D Battery

Posts : 4409
Join date : 2010-08-19
Age : 32
Location : Davao City

Back to top Go down

Re: JVC TV ( Chassis CW ) E.board: GGB10010-001E

Post by meel_2006 on Sun Oct 23, 2011 9:42 pm

sir magandang gabi po ano yong password ng file hindi ko kasi ma unrar tnx
avatar
meel_2006
AAA Battery
AAA Battery

Posts : 6
Join date : 2011-09-25

Back to top Go down

Re: JVC TV ( Chassis CW ) E.board: GGB10010-001E

Post by Hertz on Thu Nov 03, 2011 7:31 pm


parepareho lang ang mga password dito. subukan mo iyong bigay ko sayo

_________________
3rd member of STTM
former 4th member
avatar
Hertz
Admin
Admin

Posts : 1536
Join date : 2010-08-12
Age : 37
Location : Cagayan De Oro City

Back to top Go down

Re: JVC TV ( Chassis CW ) E.board: GGB10010-001E

Post by kaholito on Sat Nov 24, 2012 1:19 pm

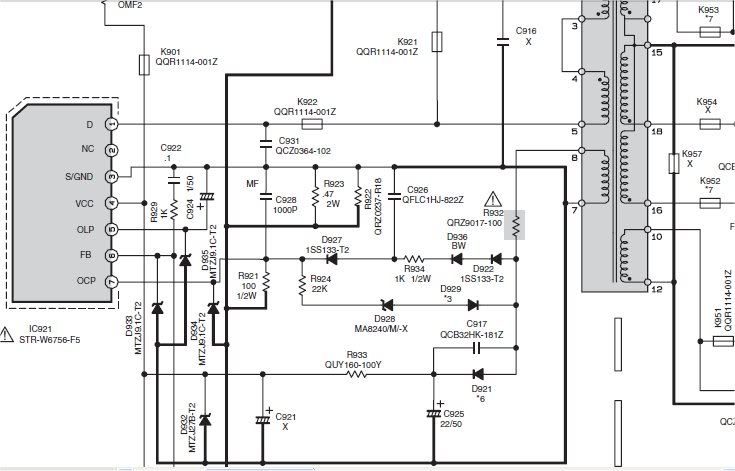

master ano po pwede pamalit sa d933 at d928.hindi nman po alam ng mga tindera ung nkalagay sa diagram kung ano klase zener ung nkasulat dun?pede po ba in4148 ang replacement nun?o zener na 19volts?
avatar
kaholito
C Battery
C Battery

Posts : 162
Join date : 2011-10-11

Back to top Go down

Re: JVC TV ( Chassis CW ) E.board: GGB10010-001E

Post by Electro on Sat Nov 24, 2012 1:49 pm

zener iyan master d933 = 9.1v, d928 = 24v
sana tama na ang sagot ko. nakakatroma Mad
avatar
Electro
D Battery
D Battery

Posts : 1475
Join date : 2010-08-26
Age : 28
Location : Calinan Davao City

Back to top Go down

Re: JVC TV ( Chassis CW ) E.board: GGB10010-001E

Post by kaholito on Sun Nov 25, 2012 2:10 pm

pano po pag nagkamali ng value?bka lalo pong lumalala ang sira.hindi po ba masama kung mataas na value ng zener ang mapalagay?
avatar
kaholito
C Battery
C Battery

Posts : 162
Join date : 2011-10-11

Back to top Go down

Re: JVC TV ( Chassis CW ) E.board: GGB10010-001E

Post by Electro on Fri Nov 30, 2012 1:33 pm

ang alam ko master pag mataas ang mailagay mong value. mataas din ang voltage na padadaluyin niya
avatar
Electro
D Battery
D Battery

Posts : 1475
Join date : 2010-08-26
Age : 28
Location : Calinan Davao City

Back to top Go down

Re: JVC TV ( Chassis CW ) E.board: GGB10010-001E

Post by daredevil on Thu Apr 23, 2015 2:42 pm

thanks so much master ultra +1 Smile
avatar
daredevil
AA Battery
AA Battery

Posts : 99
Join date : 2014-12-06

Back to top Go down

Re: JVC TV ( Chassis CW ) E.board: GGB10010-001E

Post by sherlanmamaril on Tue Sep 15, 2015 6:24 pm

pahinge naman ng password need this map talaga, ay ayun may model number meron na ata eheheh
avatar
sherlanmamaril
C Battery
C Battery

Posts : 243
Join date : 2015-07-14
Age : 22
Location : baguio city

Back to top Go down

Re: JVC TV ( Chassis CW ) E.board: GGB10010-001E

Post by Hertz on Wed Sep 16, 2015 9:29 am

standard lang ang password

_________________
3rd member of STTM
former 4th member
avatar
Hertz
Admin
Admin

Posts : 1536
Join date : 2010-08-12
Age : 37
Location : Cagayan De Oro City
