Sharp TV ( Chassis L2 ) E.board DUNTK9428WE Valeo J70M

Post by ultrasonic™ on Fri Aug 26, 2011 8:23 pm

20/21V-J70M

E.board DUNTK9428WE
Chassis L2






Q Reg.: 2SD1884

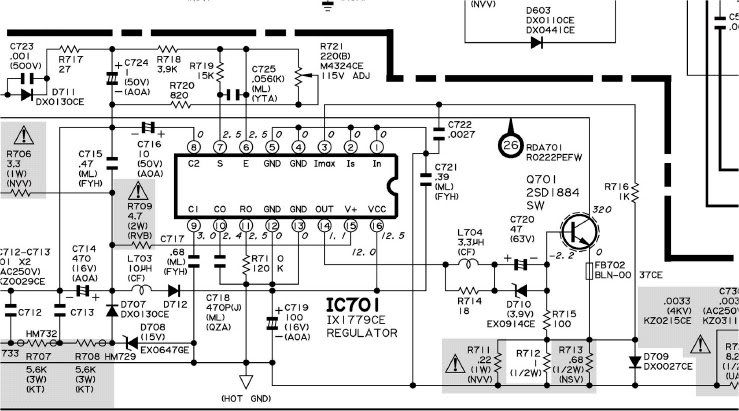

PWM: IX1779CE
EEPROM : M24C01B
System: IX2946CE
Jungle: IX2933CE
Vertical : TA8403K
HOT: 2SD2586
FBT : TRNF0147PE
Sound : TDA7056A
Tuner: VTST6UF78





Model: 20V-K80M
E.Board: DUNTK9428WE
Q Reg.: 2SD1884
PWM: TEA2261
EEPROM : M24C01B
System: IX2946CE
Jungle: IX2933CE
Vertical : TA8403K
HOT: 2SD2586
FBT : F0147PE-M
Sound : TDA7056A
Tuner: ST6UF78












Sharp Chassis L2 (20/21V-J70M)
passcode: my id number
courtesy of sis miel ng elab
