JVC TV ( Chassis CG ) E.board: CKF1674-BH1-1

Post by ultrasonic™ on Thu Aug 25, 2011 7:45 pm

AV-21Q3/D / AV-21Q3/AU
AV-21Q3/HK / AV-21QMG3
AV-21QMG3/-A / AV-21QMG3/U
AV-2115EE


Chassis CG

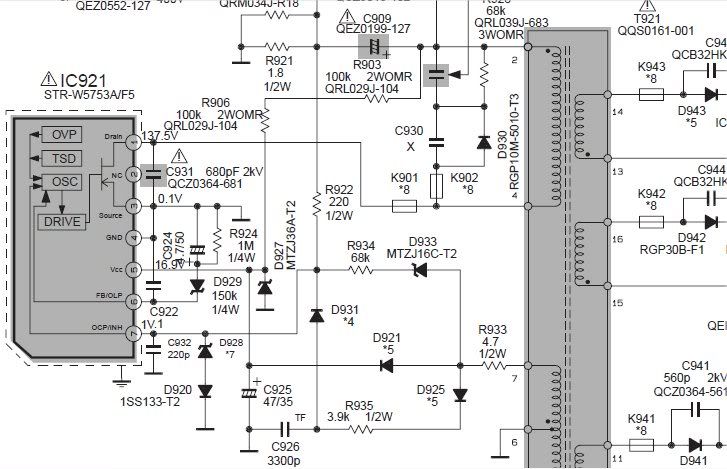

Power Reg.: STR-W5753A
EEPROM : AT24C08
System: MN1873287JK1
Jungle/Decode: NN5198K
Vertical : AN5522
VIDEO driver: TDA6107Q/N2
AV SW: MM1492AF
HOT: 2SD2627
FBT : QQH0131-001
Sound : AN5265
Tuner: QAU0282-001

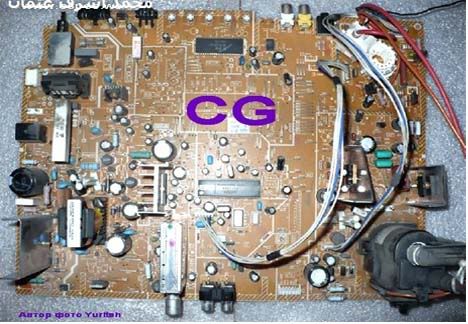

JVC chassis CG

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: JVC TV ( Chassis CG ) E.board: CKF1674-BH1-1

Post by meel_2006 on Sun Oct 23, 2011 9:45 pm

sir magandang araw po pwede bang makahingi ng password ayaw kasing ma unrar tnx po.

meel_2006
AAA Battery
AAA Battery

Posts : 6
Join date : 2011-09-25

Back to top Go down

Re: JVC TV ( Chassis CG ) E.board: CKF1674-BH1-1

Post by Hertz on Thu Nov 03, 2011 7:27 pm


@meel ako na lang ang magbibigay sayo ng susi. message ko sayo

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1457
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: JVC TV ( Chassis CG ) E.board: CKF1674-BH1-1

Post by meel_2006 on Mon Nov 07, 2011 10:23 pm

thanx mga master.

meel_2006
AAA Battery
AAA Battery

Posts : 6
Join date : 2011-09-25

Back to top Go down

Re: JVC TV ( Chassis CG ) E.board: CKF1674-BH1-1

Post by st_richard04 on Sun Feb 26, 2012 3:51 pm

mga master password naman po...

st_richard04
AAA Battery
AAA Battery

Posts : 25
Join date : 2012-01-19

Back to top Go down

Re: JVC TV ( Chassis CG ) E.board: CKF1674-BH1-1

Post by ultrasonic™ on Tue Feb 28, 2012 8:14 pm



^ check my PM

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: JVC TV ( Chassis CG ) E.board: CKF1674-BH1-1

Post by st_richard04 on Sat Mar 03, 2012 4:23 pm

thanks po..

st_richard04
AAA Battery
AAA Battery

Posts : 25
Join date : 2012-01-19

Back to top Go down

Re: JVC TV ( Chassis CG ) E.board: CKF1674-BH1-1

Post by DJFEL on Tue Dec 15, 2015 3:53 pm

pa shear nito sis..tnks..

DJFEL
D Battery
D Battery

Posts : 1722
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down
