JVC TV ( Chassis CH ) E.board: CKF1474-CH2-1

Post by Hertz on Tue Aug 23, 2011 6:16 pm

JVC

AV-21L91
AV-25L91
AV-29L91

Chassis CH








Power Reg.: STR-F6707A
EEPROM : 24C08
NICAM: MSP3415D-QG-B3X
UOC: TDA9386N12S0454
Vertical : AN5522
VIDEO driver: TDA6107Q/N2
AV SW: MM1492AF
HOT: 2SD2634
FBT : QQH0104-001 (21"), QQH0097-001 (21")
Sound : AN5277
Tuner: QAU0185-004

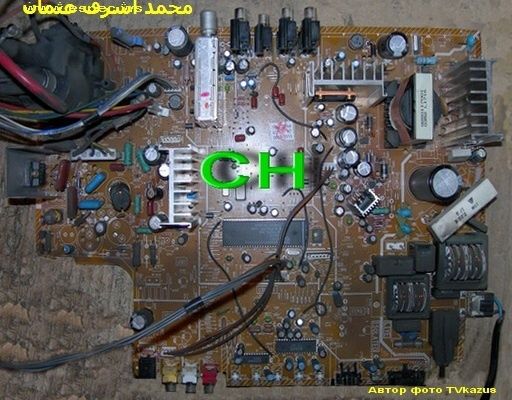

JVC TV [ Chassis CH ]
