PIC Digital LC Meter

Post by Kasamiko on Fri Aug 19, 2011 2:40 pm

PIC Digital LC Meter by RBT


For those who are into prototyping, design and repair job particular on RF circuit this is a must have gadget for you!

PIC Digital LC Meter:

This is one of the most accurate and simplest LC inductance / capacitance Meters that one can find. This LC Meter allows you to measure incredibly small inductance starting from 10nH to 1000nH, 1uH to 1000uH, 1mH to 100mH and capacitance from 0.1pF up to 900nF. LC Meter's circuit uses an auto ranging system so that you do not need to spend time selecting ranges manually. Another neat function is reset switch that will reset the initial inductance / capacitance, making sure that the final readings of the LC Meter are as accurate as possible.


LC Meter's Technical Specifications:

Voltage Supply: 6 - 16V
Accuracy: 1%
Full Automatic Ranging
Inductance Resolution: 10nH
Capacitance Resolution: 0.1pF

LC Meter's Inductance Measurement Ranges:
- 10nH - 1000nH
- 1uH - 1000uH
- 1mH - 100mH

LC Meter's Capacitance Measurement Ranges:
- 0.1pF - 1000pF
- 1nF - 900nF

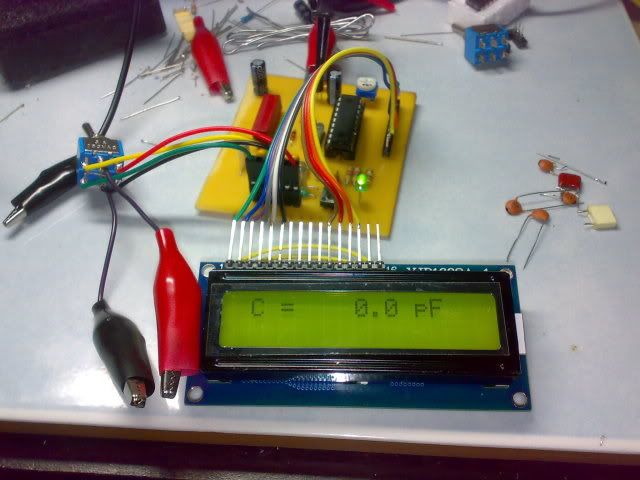

Prototype:

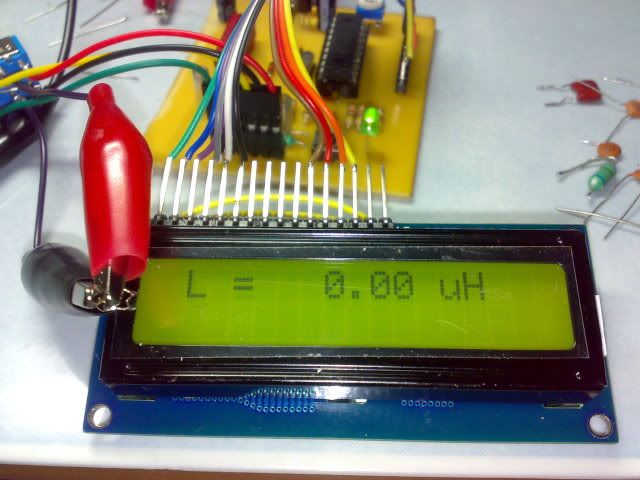

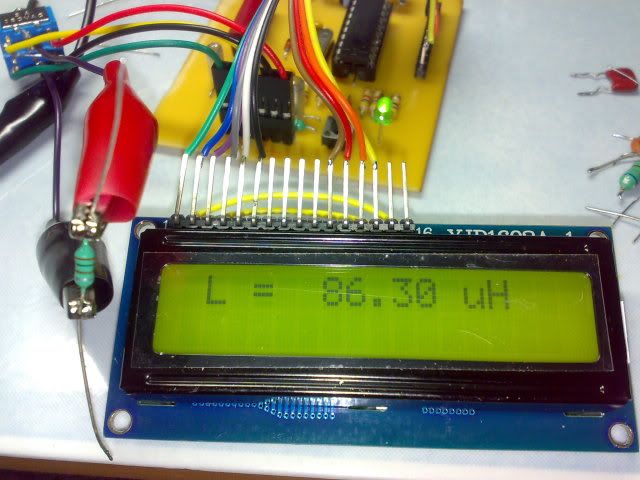

"L" or Inductance Mode:

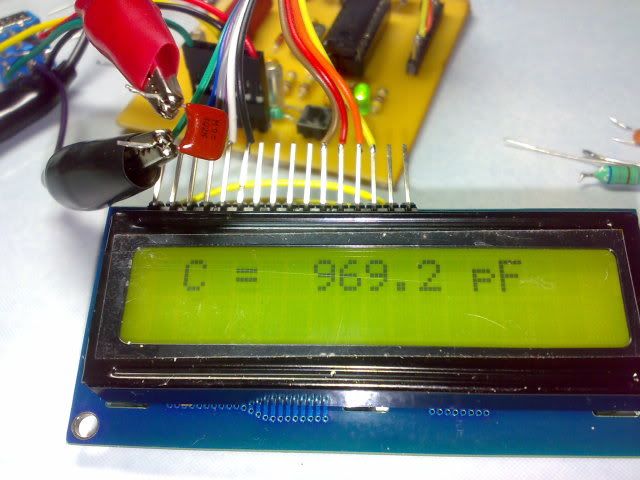

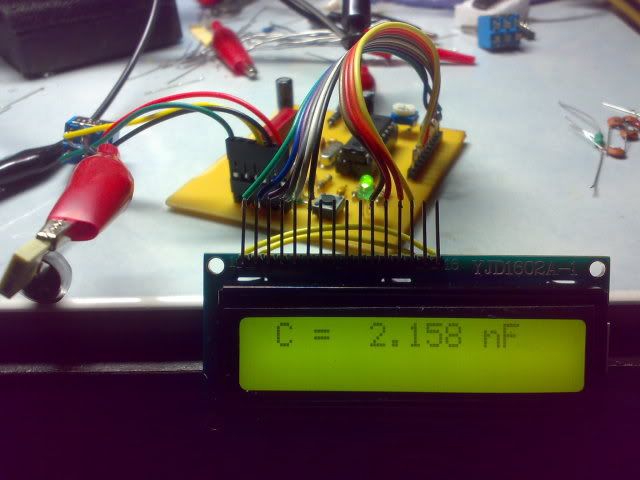

"C" or Capacitance Mode:
















`

Kasamiko
AAA Battery
AAA Battery

Posts : 19
Join date : 2011-07-23

Back to top Go down

Re: PIC Digital LC Meter

Post by ultrasonicâ„¢ on Fri Aug 19, 2011 9:34 pm



panibago sa toy list ko.. Razz

sis kasam mgkano ?
nang mapag ipunan ko

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonicâ„¢
D Battery
D Battery

Posts : 4116
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: PIC Digital LC Meter

Post by Kasamiko on Sat Aug 20, 2011 1:08 am

under development pa bakla....pinapaganda ko pa at the same time pcb modification para lumiit..Very Happy

Kasamiko
AAA Battery
AAA Battery

Posts : 19
Join date : 2011-07-23

Back to top Go down

Re: PIC Digital LC Meter

Post by Hertz on Tue Aug 23, 2011 8:16 pm

bakla ? scratch

@kasamiko thumbs up ganda nang pagkakagawa. napakalinis

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1458
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: PIC Digital LC Meter

Post by alvinquimbo on Fri Jan 09, 2015 7:40 pm

Sir kasamiko magkano ang benta mo jan..?gusto ko sana bumili ng ganyan,dagdag sa aking workbench... going to cry going to cry going to cry

alvinquimbo
D Battery
D Battery

Posts : 723
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down
