SONY TV ( Chassis BG-2S ) E.board: 1-664-963-12

Post by Hertz on Tue Aug 16, 2011 10:33 pm

Model

KV-G14L2J
KV-G21M2J


Chassis BG-2S
E.board: 1-664-963-12





Powe Regulator: STR-S6707
EEPROM : AT24C04A
System: CXP85220A-060S
Jungle: TDA8474A
Vertical : LA7830
HOT: 2SD1877S
FBT : 1-453-249-11
AV SW. : LA7910
Sound : TA8248K
Tuner: BT-AG401













courtesy of sis HG Chloe

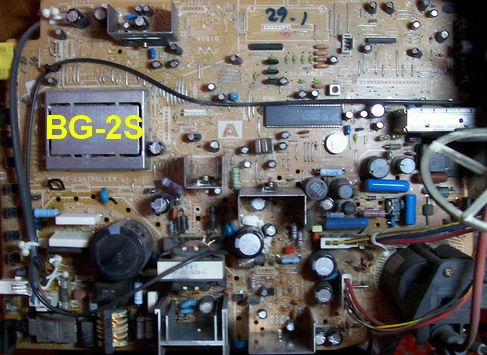

SONY TV  [Chassis BG-2S]


Last edited by Hertz on Tue Mar 01, 2016 12:05 pm; edited 4 times in total

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: SONY TV ( Chassis BG-2S ) E.board: 1-664-963-12

Post by ultrasonic™ on Thu Jun 21, 2012 1:55 pm


Hertz pasingit nito

http://i1094.photobucket.com/albums/i453/aelexianempire/SonyBG-2Sboard.jpg?t=1340253976

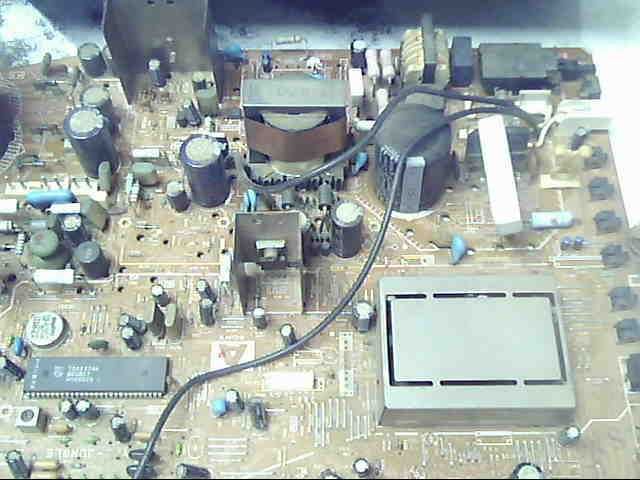

http://i1094.photobucket.com/albums/i453/aelexianempire/SonyBG-2Sboard2.jpg?t=1340253990

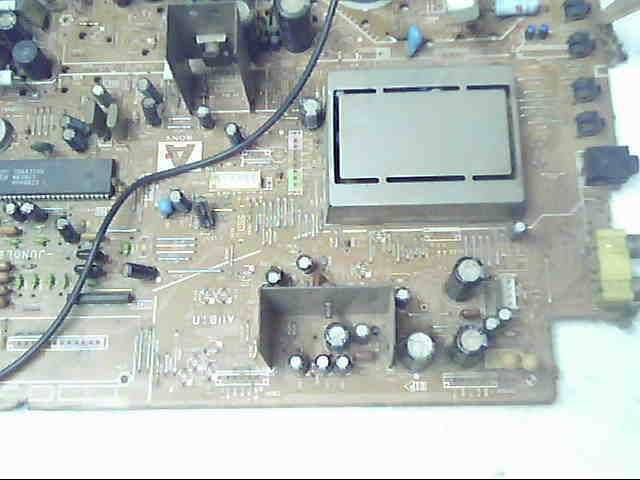

http://i1094.photobucket.com/albums/i453/aelexianempire/SonyBG-2Sboard3.jpg?t=1340254037

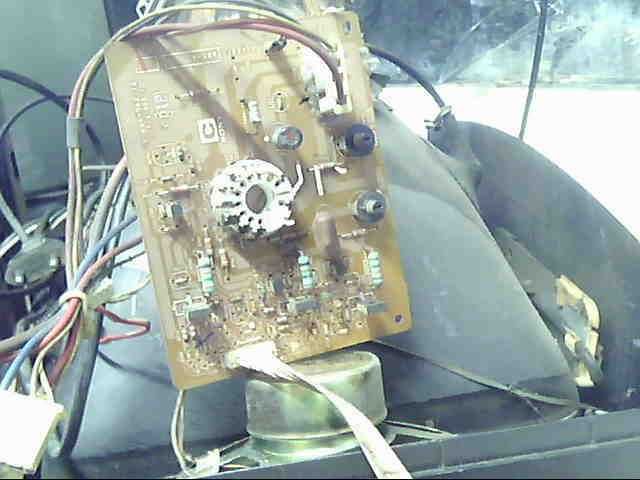

http://i1094.photobucket.com/albums/i453/aelexianempire/SonyBG-2Sboard4.jpg?t=1340254070

courtesy of sis HG Chloe ng elab

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: SONY TV ( Chassis BG-2S ) E.board: 1-664-963-12

Post by DJFEL on Sat Jul 13, 2013 7:50 pm

ano pm nito...sem ba ren sa in u sis ultra...

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: SONY TV ( Chassis BG-2S ) E.board: 1-664-963-12

Post by ultrasonic™ on Mon Jul 29, 2013 4:29 pm


standard pass ata sis dj
or id number ni hertz

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: SONY TV ( Chassis BG-2S ) E.board: 1-664-963-12

Post by Hertz on Fri Aug 02, 2013 6:17 pm

ultrasonic™ wrote:
standard pass ata sis dj
or id number ni hertz

standard lang po sir

ultrasonic™ wrote:
Hertz pasingit nito

 done
