mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

View previous topic View next topic Go down

mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by VinzBayns on Mon Jul 18, 2011 4:12 pm

pde po mkahingi ng diagram ng gnito na power supply na regulated ung my indicator lam each voltage..kng ok lng po...

-PS: dex patabang q nid au nq ni..sa wed na jd..pls pls pls..

VinzBayns
AAA Battery
AAA Battery

Posts : 8
Join date : 2011-07-18
Age : 28
Location : Davao City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by ultrasonic™ on Mon Jul 18, 2011 5:59 pm

wtf adik jampong ka ug flyf ? avatar palang ^_^

OT: if unregulated power supply pwde in-ani na configuration ang buhata

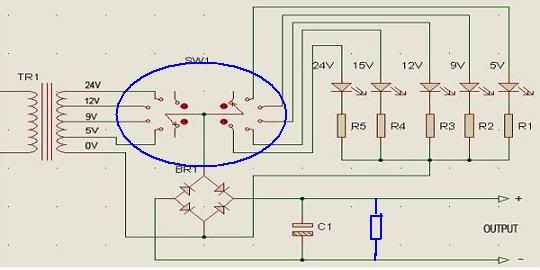

TR1 = transfo multi tap
BR1 = 4PCS diodes 1N5402
C1 = 2200uf/35V
SW1 = rotary swicth 2 pole 6 position
D1-D6 = Leds
R1-R6= ikaw na bahala ana.... ^_^ basta taas ug voltahe dapat taas kag resistance value dha.




Last edited by ultrasonic™ on Mon Jul 18, 2011 6:33 pm; edited 1 time in total

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by VinzBayns on Mon Jul 18, 2011 6:18 pm

-dex unsa ang mga value anang mga capacitor og resistor sa LED..
-unsa gani tawag anang potentiometer??...2 poles 6 position manang potentiometer nohh???

-plss reply lng dex..

VinzBayns
AAA Battery
AAA Battery

Posts : 8
Join date : 2011-07-18
Age : 28
Location : Davao City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by VinzBayns on Mon Jul 18, 2011 6:21 pm

dex..kaw nlng hatag og value sa resistor beh..wala bya jd q alam msyado anang elx ha..hehehe kblo bya ka ana..cge na plsss...

VinzBayns
AAA Battery
AAA Battery

Posts : 8
Join date : 2011-07-18
Age : 28
Location : Davao City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by VinzBayns on Mon Jul 18, 2011 6:33 pm

-nanu 6 man ang resistor og diodes nga 5 lng man naa sa diagram...heehehe kaw jd bah..hehehe
-ang resistor value bah kaw nlng butang plsss...mg hulat q..

-PS: salamat di sa diagram dex..dako dako dako au ka tabang..hehehe regards q anang mayalin™ ha.. ^_^

VinzBayns
AAA Battery
AAA Battery

Posts : 8
Join date : 2011-07-18
Age : 28
Location : Davao City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by ultrasonic™ on Mon Jul 18, 2011 6:43 pm

VinzBayns wrote:-dex unsa ang mga value anang mga capacitor og resistor sa LED..
-unsa gani tawag anang potentiometer??...2 poles 6 position manang potentiometer nohh???

-plss reply lng dex..

nope dili na xa potentiometer hahhaha lol!

bali rotary switch na xa na naay 6 position...


try pud browse dinhi para ma overview nimu ang power supply..
http://aelexian.4rumer.com/t264-power-supply-po-na-maraming-pong-pagpipilian-voltage



btw remind ko lng na dili ni xa.. regulated power supply ha..

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by VinzBayns on Mon Jul 18, 2011 10:02 pm

mao na ni xa dex...hehe lamat dex...ty sa tabang..ako na bahala sa layout ani....

VinzBayns
AAA Battery
AAA Battery

Posts : 8
Join date : 2011-07-18
Age : 28
Location : Davao City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by Digitap on Mon Jul 18, 2011 10:38 pm

VinzBayns wrote:-nanu 6 man ang resistor og diodes nga 5 lng man naa sa diagram...heehehe kaw jd bah..hehehe
-ang resistor value bah kaw nlng butang plsss...mg hulat q..

-PS: salamat di sa diagram dex..dako dako dako au ka tabang..hehehe regards q anang mayalin™ ha.. ^_^

@sir dex wow proteus na gamit mo ? i dont know
welcome back sir. ok na ba heart mo ?
pahiram na din ng pics


nakaligtaan mo yatang maglagay ng bleeder resistor. Surprised

@VinzBayns sa tingin ko hindi kayo masiyadong nakakaintindi ng schematic diagram. sanay hindi kayo malito sa rotary switch. iisa lang kasi iyang binilugan ko. magkasabay din iyan lilipat pag pinihit na ang knob

Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by VinzBayns on Tue Jul 19, 2011 11:49 am

@ mayalin:
-hehe..lam ko po ate maya na iisa lng yang rotary..ang d ko lng po maintindihan ay sa actual na pag connect sa rotary switch..heheh Razz
-at ang mga value ng bawat isang resistor na nka connect sa LED pati na ung dinagdag mo po na bleeder resistor..un lang po tanong q.. :heart:


-at isa pa po..6 lids po ung trnsformer q.. 5v, 9v, 12v, 15v, at 24v..ehh ang nkalagay po sa diagram ay 5 lng..dadagdagan q nlng po ba ng isa lid yang diagram pde bah un?? dex at ate maya??


-ate maya yan na po bah ung tama na diagram ng power supply??

@SIR DEX: sir na di ka dex..broken heart npod ka??hehhe
-dex salamat sa imo tabang ako nlng mg layout ani kya nmn ni nq..hehe ang value sa resistor lng og ang tama na diagram aqa nid..hehehhe kailangan pa di bleeder resistor ani??

VinzBayns
AAA Battery
AAA Battery

Posts : 8
Join date : 2011-07-18
Age : 28
Location : Davao City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by PIEZO on Tue Jul 19, 2011 3:18 pm

VinzBayns wrote:@ mayalin:
kailangan pa di bleeder resistor ani??

it's optional. if you want a fast discharge after the power is absent. yes of course you must.

_________________
2rd member of STTM
former 3rd member

PIEZO
Admin
Admin

Posts : 140
Join date : 2010-08-12
Age : 34

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by Hertz on Tue Jul 19, 2011 9:19 pm

VinzBayns wrote:@ mayalin:
-at isa pa po..6 lids po ung trnsformer q.. 5v, 9v, 12v, 15v, at 24v..ehh ang nkalagay po sa diagram ay 5 lng..dadagdagan q nlng po ba ng isa lid yang diagram pde bah un?? dex at ate maya??

may mali nga lol! correct mo na lang, kunti lang naman VinzBayns


VinzBayns wrote:@ mayalin:
-hehe..lam ko po ate maya na iisa lng yang rotary..ang d ko lng po maintindihan ay sa actual na pag connect sa rotary switch..heheh Razz
-at ang mga value ng bawat isang resistor na nka connect sa LED pati na ung dinagdag mo po na bleeder resistor..un lang po tanong q.. :heart:

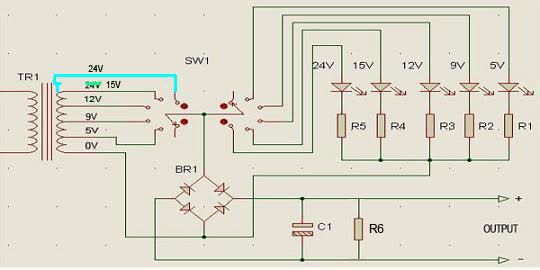

subukan mo ito. 1W lahat lagay mo R1=180Ω, R2=390Ω, R3=560Ω, R4=680Ω, R5=1.2KΩ. ngunit paalala lang. ito ay hango lamang sa teorya. ->LED Resistor Calculator. kayat kong maaari ay taasan niyo pa ng kunti.

sa bleeder pwede na yata 5k 5w critical nga lang sa 24V range

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by pyroelectro on Tue Jul 19, 2011 10:29 pm

tama sina sir piezo. optional lang iyang bleeder

http://www.jestineyong.com/?p=62


OT: mga sir bakit unregulated ang nire refer niyo ? scratch
regulated power supply naman ang tinatanong

@Vinz dagdag ka lang ng voltage regulator ic para maging regulated iyan.


pyroelectro
C Battery
C Battery

Posts : 284
Join date : 2010-11-23
Age : 33
Location : Cebu City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by VinzBayns on Wed Jul 20, 2011 12:11 pm

-hehe tama nga ung edit q sa kulang..hehe parehas na tau ng diagram...hehe Very Happy

-pde ba 1.2k ohm sa 5v-12v dba..kc d2 sa power supply na mrn ako 1.2k ohm ang gamit sa 6v, 9v, at 12v..pro isa lang led ang gamit.. :idea:

-ok lng d regulated bsta gmana ayon sa gus2 ng amo q..hehe mahal na kc kng my IC pa..hehe ung mura lng ang hana p q... Very Happy

-pde na rin ba wala bleeder na resistor..optional lng pla yan??..d ko nlng lalagyan ng ganyan..heheh

-

VinzBayns
AAA Battery
AAA Battery

Posts : 8
Join date : 2011-07-18
Age : 28
Location : Davao City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by Hertz on Wed Jul 20, 2011 4:54 pm

VinzBayns wrote:

-pde ba 1.2k ohm sa 5v-12v dba..kc d2 sa power supply na mrn ako 1.2k ohm ang gamit sa 6v, 9v, at 12v..pro isa lang led ang gamit.. :idea:
-

pwede lang iyan

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by ultrasonic™ on Thu Jul 21, 2011 9:54 pm

mayalin143 wrote:
@sir dex wow proteus na gamit mo ? i dont know
welcome back sir. ok na ba heart mo ?

proteus na agad para maramng windng lol!
btw ok nku princess. dont wori. mlakas pa aku sa kalabaw Razz

@all sori sa diagram tao lng.. wa nku na check ang wiring tapping.. ^_^

VinzBayns wrote:@ mayalin:
@SIR DEX: sir na di ka dex..broken heart npod ka??hehhe

@baynz no comment aku jan T_T

on topic:

nsagot na yun iba. regarding sa rotary swicth nlng ang akng addition kaya na. na nimu baynz oie..
just follow the sequence of selection.. start ka sa pnkaminimum range...

ex. imagine mu nlng na yang image ay nkatalikod na rotary sw. at nkaminimum range na


kng saan nka set ang contactor ng rot. sw. (7) ay wag ka jan mag simulan mag tapp ng wire dahil yan ang mgsisilbi mung off position. doon ka mgtap sa pangalawa (8). to be xur. lipat mu ang knob ng rot. sw. at silipin saan xa lumipat. kng saan huminto yun na ung kakabitan mu ng 5V winding ng transfo.
then isunod mu na ang iba. lipat mu ulit ang knob. kng saan huminto (9) doon mu nmn ikakabit ang 9V winding.. pgtapoz na ulitin ulit ang proseso & so on in so forth ^_^

pa OT:

1 point nga pla sa lhat ng nag ambag

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by Digitap on Fri Jul 22, 2011 9:04 pm

VinzBayns wrote:@ mayalin:
-ate maya
ate maya??
-ate maya

kainis ka. bakit mo ko tinatawag na ate. eh mas matanda ka pa sa akin ng dalawang taon.

ultrasonic™ wrote:
btw ok nku princess. dont wori. mlakas pa aku sa kalabaw Razz
1 point nga pla sa lhat ng nag ambag

talaga lang ha. sabi ni jane sa amin lagi mong pinupuno ang schedule mo, kahit wala ka naman appointment. sige nga sagutin mo. ano-ano ang mga rason? waiting umiiwas ka lang yata na maalala mo siya at magka oras sa amin

on topic:

@VinzBayns gumamit ka na lang ng lm317

http://www.national.com/mpf/LM/LM317.html#Overview

Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by VinzBayns on Tue Jul 26, 2011 11:58 am

@all: hehehe salamat sa tanan nitabang...

@dex: hehe lamat dex..dako au ka tabang..hehe ok na ang diagram..hehhe naa nq copy dex..hehehe

sa uulitin...hehehe

VinzBayns
AAA Battery
AAA Battery

Posts : 8
Join date : 2011-07-18
Age : 28
Location : Davao City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by pyroelectro on Wed Jul 27, 2011 7:54 pm


@VinzBayns congrats. unregulated talaga ang binuo niyo.
@sir ultra salamat sa point

pyroelectro
C Battery
C Battery

Posts : 284
Join date : 2010-11-23
Age : 33
Location : Cebu City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by ultrasonic™ on Wed Jul 27, 2011 10:02 pm

congratz baynz. xure sa uulitin.
invite na pud ug ubang mga taga usep..

btw isa lng diay ka LED indicator emong ggamit ?
salabahis mn ka oy!! abi ba diay nku separated ? Razz

@pyro ur welcome. u deserve it nmn Razz

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by Digitap on Wed Aug 10, 2011 9:48 pm

tapos na pala. congrats

Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by Hertz on Tue Aug 16, 2011 10:14 pm


buti naman at natapos lol!

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by Back2Basic on Mon Sep 05, 2011 1:30 pm

I also learn to this topic... Thanks sa lahat... kinopya ko narin pala ung diagram para pagnagka project ako madali lang makakagawa... ^_^

Back2Basic
AAA Battery
AAA Battery

Posts : 41
Join date : 2011-09-05
Age : 29
Location : laguna

Back to top Go down

Re: mrn po kau ganito na power supply??..5v-9v-12v-15v-24v..

Post by Sponsored content Today at 1:36 am


Sponsored content


Back to top Go down

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
