SONY TV ( Chassis BX1S ) SCC-V13B-A

Post by ultrasonic™ on Thu May 26, 2011 9:25 pm

SONY

MODEL NO. SERIES:


KV-AR142M50
KV-AR142M80
KV-AR142M90
KV-AR142P52
KV-BT212N70

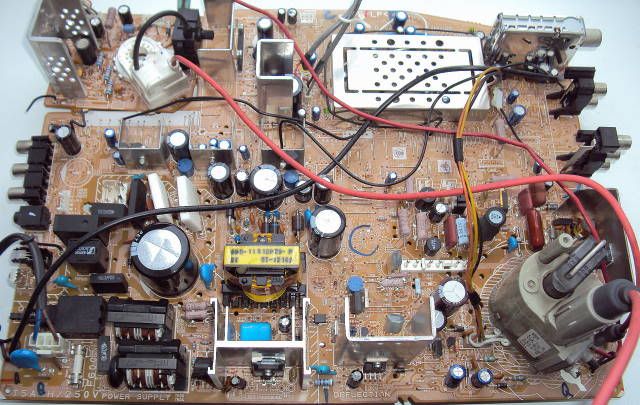

CHASSIS: BX1S
(SCC-V13B-A)

Powe Reg.: STR-F6267S
MEMO : 24WC16
UOC : TDA12067H/N1B0B0QV(KV-AR142M50(Malaysia)/M80/P52), TDA12067H/N1B0B0CL(KV-AR142M50(Vietnam)), TDA12017H/N1B0B0QR (KV-AR142M90) or TDA11010H/N1B 0000L

Vertical : AN15524A
RGB: TDA6108AJF
Sound : AN5276T
HOT: 2SC5885
FBT : NX-4450/M3A4  or 8-598-858-00 NX-4751//M / 8-598-847-00
Tuner : 169365911

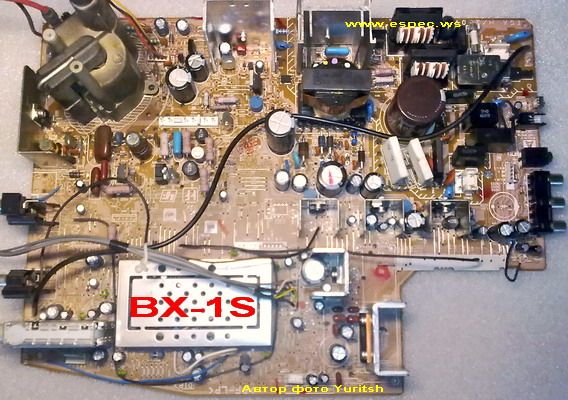

Chassis BX1S
