Samsung TV ( Chassis K15A )

Post by ultrasonic™ on Thu Mar 31, 2011 11:45 pm



Model Series

CT21D8L6X/XTC
CT5038G6X/XAP
TXH1972
CT5038
CT331E
CT331H
CT5066
CT503E

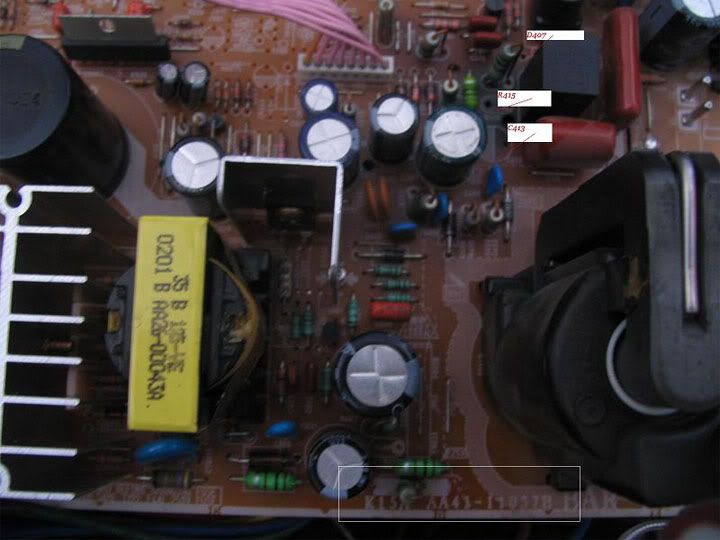

Chassis K15A






Powe Reg.: KA3S0765R / KA3S0680RFB
EEPROM : 24C04
System: SZM-354ET1
Jungle: KA2163B
Vertical : KA2131
HOT: C5368
FBT : FSV-14A001, FSV-14A001D (14" & 16"), FSV-20A001 (20" & 21")
Sound : LA4425
Tuner: TELH9-212A






Chassis K15A
courtesy of sis pete



_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Samsung TV ( Chassis K15A )

Post by Brentley on Sat Nov 19, 2016 5:20 pm

Pahingi ng diagram

Brentley
AAA Battery
AAA Battery

Posts : 15
Join date : 2016-10-15

Back to top Go down

Re: Samsung TV ( Chassis K15A )

Post by ultrasonic™ on Mon Nov 21, 2016 5:39 pm

click mo lang Chassis K15A na naka yellow sis.. at ma d DL mo na yan..
passcode: sttm
