Panasonic TV ( Chassis MX-3 ) E.board TNP4G036AT

Post by ultrasonic™ on Thu Mar 10, 2011 4:36 pm

Panasonic

E board #: TNP4G036AT




Main Parts


Q Reg.: C4804
EEPROM : 24C02
System Con. : MN152811TZX
Jungle : AN5192K-A or AP
Vertical : LA7837
Sound : AN5270
HOT: D2499
FBT : TLF15644F1
Tuner : ENV590D1F2
Delay Line: TDA4665
Band Sw. : AN5071

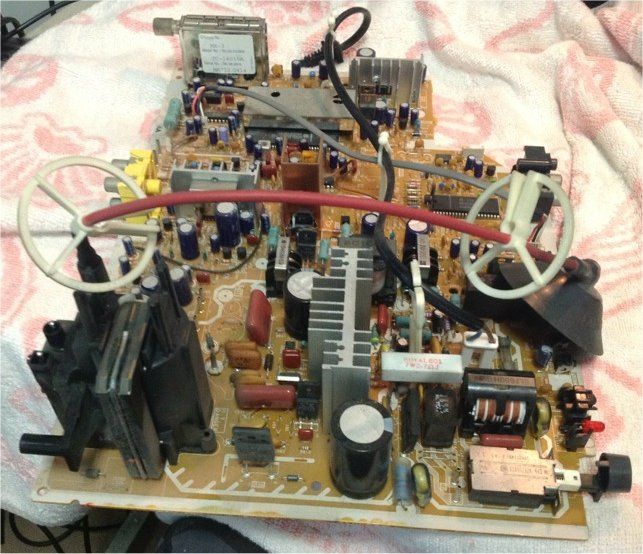

Panasonic ( TNP4G036AT )

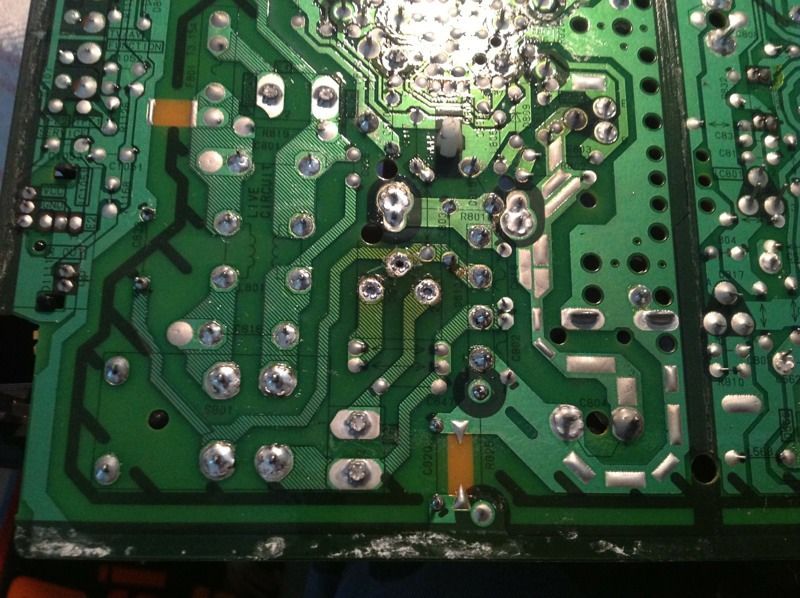

Panasonic Chassis MX-3


Last edited by ultrasonic™ on Wed Apr 10, 2013 11:38 am; edited 1 time in total

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Panasonic TV ( Chassis MX-3 ) E.board TNP4G036AT

Post by nolds on Tue Nov 06, 2012 4:38 pm

sir pwede hingi ko diagram nto panasonic tv kailalangan ko nahirapan ako sa repair ko tulad nto model thanks

nolds
AAA Battery
AAA Battery

Posts : 20
Join date : 2012-02-28
Age : 47

Back to top Go down

Re: Panasonic TV ( Chassis MX-3 ) E.board TNP4G036AT

Post by ultrasonic™ on Wed Nov 07, 2012 3:57 pm

check my pm

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Panasonic TV ( Chassis MX-3 ) E.board TNP4G036AT

Post by ultrasonic™ on Thu Feb 13, 2014 2:08 pm

Panasonic

TC-1405
TC-1420T
TC-1425
TC-1425RT
TC-1450
TC-1466
TC-1470
TC-14F1
TC-14L10
TC-14L10R
TC-14L10R2
TC-14S10
TC-14S10R/C
TC-14S1D
TC-20F1
TC-20L3R
TC-2105
TC-2105RT
TC-2121T
TC-2125
TC-2125RT
TC-2126RT
TC-2155
TC-2155R
TC-2166
TC-2166R
TC-2170
TC-2170R
TC-2170T
TC-21F1
TC-21F1T
TC-21L01
TC-21L10
TC-21L10R
TC-21L10R2
TC-21S1
TC-21S10
TC-21S10R
TC-21S10R2
TC-21S2A
TC-21X1
TC-25F1
TX-20S1T

Chassis MX-3




Main - TNP4G036
Micom - MN152811TJN
Teletext - CF70209NW
Memory - 24C04A
SMPS - 2SC5249, SE090, FD312S
TR Chopper - TLPA055
Tuner - ENV-598D4F2
Band - AN5071
Video - AN5192K-B
Secam - TDA8395P
Delay - U3666M
Sound - AN5270
Vertical - LA7837
HOT - 2SC5250
FBT - FSM-21A005 (TLFA01575) (HR8783)
RGB Amp. - 2SC2258RL


Chassis MX-3
