SONY TV ( Model GMR1, MKII, JDR1, JSR1, JXR1 )

Post by ultrasonic™ on Thu Feb 10, 2011 9:50 pm

SONY TV

MODEL SERIES:


KV-14GMP1
KV-GMR1MKII
KV-14RD3MKII
KV-14JDR1
KV-14JSR1
KV-21GMR1MKII
KV-21TSPR2MKII
KV-21JXR
KV-21RXP
KV-21 JXR1A
KV-21RXR3MKII
KV-21JDR1
KV-21 JSR1


Power Reg.: STR-S6707
EEPROM : ST24C02
System Con. : CXD85116B-636S
Jungle/Chroma : CXA1464AS
Vertical : LA7830
Sound : TA8248K
HOT : 2SD1878
FBT :  8-598-960-00 NX-1742



SONY TV (MKII, JDR1, JSR1, JXR1)

di ko din  matandaan  sino ang nagtapon sa  akin  nito...
bastat elabers  din xa...  as  a symbol na sa elab nga e2  galing nilagay  ko mismu  ang isa  sa mga simbolo ng impakta  lol!
sanay d magalit sa akin  ang  mga  may-ari  nito



SONY TV


KV-21GMR1
KV-21MK2






Main Parts:


Power Reg.- STR-S6707
EEPROM - ST24C02
System Con. - CXD85116B-636S
Jungle/Chroma - CXA1464AS
Video Buffer - TC4053BCP
Vertical - LA7830
Sound - TA8248K
Vol.Ctr - UPC1406H
RGB amp - 2SC2611
Pin AMp -UPC4558G2
HOT - 2SD1878
FBT -  8-598-960-00 NX-1742
Tuner - BTF-WA405

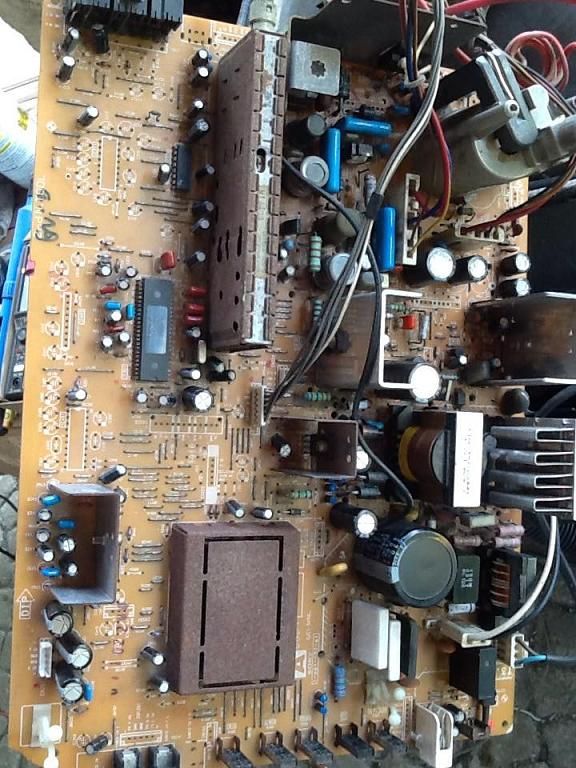

Sony TV KV-21GMR1 MK2


Last edited by ultrasonic™ on Wed Dec 31, 2014 12:01 am; edited 1 time in total

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4120
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: SONY TV ( Model GMR1, MKII, JDR1, JSR1, JXR1 )

Post by DJFEL on Sun Feb 03, 2013 9:22 am

hahahha...baka hinde naman..

DJFEL
D Battery
D Battery

Posts : 1722
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: SONY TV ( Model GMR1, MKII, JDR1, JSR1, JXR1 )

Post by kaholito on Mon Jun 24, 2013 2:50 pm

Ano po password into master?

kaholito
C Battery
C Battery

Posts : 162
Join date : 2011-10-11

Back to top Go down

Re: SONY TV ( Model GMR1, MKII, JDR1, JSR1, JXR1 )

Post by kaholito on Sat Jun 29, 2013 4:32 pm

Pass code po master ultra.

kaholito
C Battery
C Battery

Posts : 162
Join date : 2011-10-11

Back to top Go down

Re: SONY TV ( Model GMR1, MKII, JDR1, JSR1, JXR1 )

Post by ultrasonic™ on Sat Jun 29, 2013 5:18 pm

^ standard pass natin dito

di pa kabisado check my PM

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4120
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: SONY TV ( Model GMR1, MKII, JDR1, JSR1, JXR1 )

Post by kaholito on Sat Jun 29, 2013 6:40 pm

Salamat po master.

kaholito
C Battery
C Battery

Posts : 162
Join date : 2011-10-11

Back to top Go down

Re: SONY TV ( Model GMR1, MKII, JDR1, JSR1, JXR1 )

Post by daredevil on Fri Mar 06, 2015 3:57 pm

master anu po ba yung number ng ic 210 sa MKII pwede po bang ipalit yung tc4052BP doon?... thanks in advance po

daredevil
AA Battery
AA Battery

Posts : 87
Join date : 2014-12-06

Back to top Go down

Re: SONY TV ( Model GMR1, MKII, JDR1, JSR1, JXR1 )

Post by Electro on Sat Mar 07, 2015 2:39 pm

UPD4053 yan master

Electro
D Battery
D Battery

Posts : 1433
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: SONY TV ( Model GMR1, MKII, JDR1, JSR1, JXR1 )

Post by daredevil on Sun Mar 08, 2015 9:16 pm

thanks po +1 (y) po sayo Smile

daredevil
AA Battery
AA Battery

Posts : 87
Join date : 2014-12-06

Back to top Go down

Re: SONY TV ( Model GMR1, MKII, JDR1, JSR1, JXR1 )

Post by DJFEL on Sat Aug 15, 2015 8:00 am

pa ambon neto sis...tnks..

DJFEL
D Battery
D Battery

Posts : 1722
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: SONY TV ( Model GMR1, MKII, JDR1, JSR1, JXR1 )

Post by danyenz on Thu Aug 20, 2015 5:40 pm

pa dl po nito tia.lalo na sa admin maraming salamat po lola..

danyenz
AAA Battery
AAA Battery

Posts : 21
Join date : 2011-04-29
Age : 49
Location : albay

Back to top Go down

Re: SONY TV ( Model GMR1, MKII, JDR1, JSR1, JXR1 )

Post by Hertz on Wed Jul 06, 2016 10:40 am

Sir ultra. Allow me to edit  Very Happy

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1458
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City
