SONY TV ( Chassis BA-2 ) E.board: 1-651-874-11

Post by ultrasonic™ on Wed Feb 09, 2011 10:50 pm

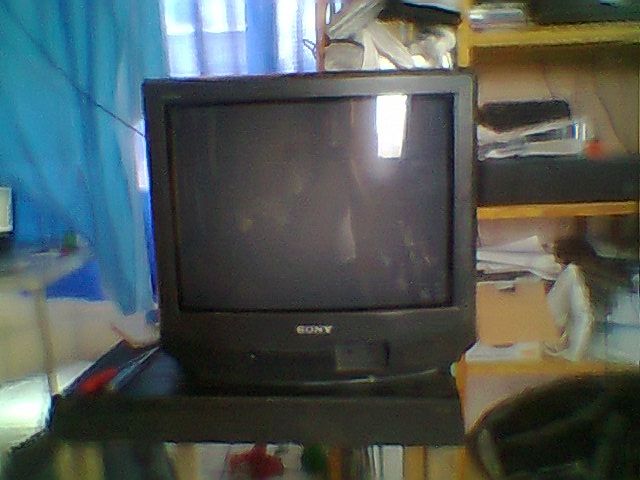

SONY TV


MODEL SERIES:

KV-20M10
KV-20S10
KV-MT2000
KV-ST2050
kV-21RS10
KV-14R10C

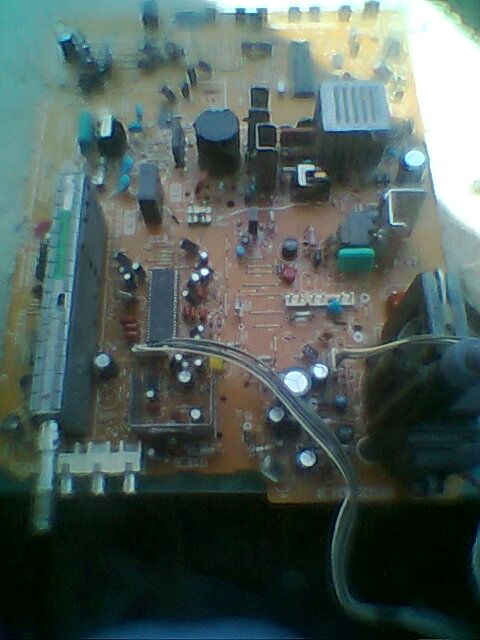

Chassis BA-2

E.board: 1-651-874-11







Q Reg.: C4663 2pcs
EEPROM : 24C01
System Con. : M37265M4
Jungle/Chroma : CXA1465AS
Vertical : LA7830
Vol Control: UPC1406HA
Sound : TDA2009A
RGB: C4722
AV SW: UPD4053
HOT : D1877
FBT :
NX-1661/A4E


SONY Chassis BA-2
SONY Chassis BA-2 (Manual)
