JVC TV ( Chassis CW3 ) E.board: GGB10041-001CH ( SCW-1906A-H2 & SCW-1919A-H2 )

Post by ultrasonic™ on Sun Jan 30, 2011 2:15 am

Model:

AV-21MT16
AV-25MT16
JVC AV-2156BE  (SCW-1992A)
JVC AV-21BS26
AV-21BX16
AV-21MX16
AV-2986SE (SCW-1950A-H2, SCW-1964A-H2, SCW-1953A-H2)

interiArt


Chassis CW3




Major:

Reg: STR-W6554A
UOC:
TDA12020H/N1F01
Sound: AN5277,
AN5276
RGB: TDA6107AJF/N1
Vertical: LA78040N
HOT: TT2190
FBT: QQH0188-001,
JF0501-3241, QQH0189-001
Tuner: QAU0353-002,
QAU0466-002 TAEM-G503D(B)

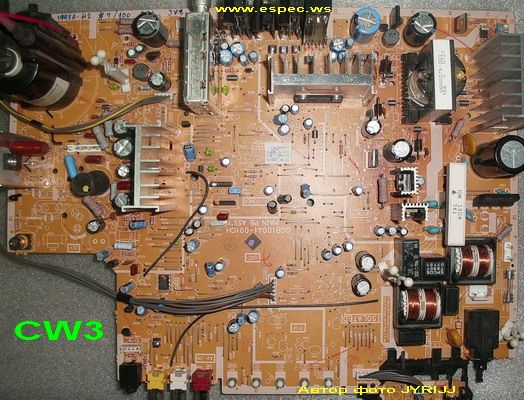

JVC Chassis CW3

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: JVC TV ( Chassis CW3 ) E.board: GGB10041-001CH ( SCW-1906A-H2 & SCW-1919A-H2 )

Post by rolando cerezo on Tue Sep 27, 2011 10:08 am

gud day msater ultra baka po meron ka diagram jvc tv av-21vt14 sunog kasi yong resistor R572 di ko na mabasa code nya salamat po!

rolando cerezo
AAA Battery
AAA Battery

Posts : 36
Join date : 2011-08-30
Age : 47

Back to top Go down

Re: JVC TV ( Chassis CW3 ) E.board: GGB10041-001CH ( SCW-1906A-H2 & SCW-1919A-H2 )

Post by ultrasonic™ on Tue Sep 27, 2011 3:41 pm


chassis CW yan.... based sa diagram na hawak ko. R572=2.2kΩ 1/2W J yan

DL mu na rin ang mapa

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: JVC TV ( Chassis CW3 ) E.board: GGB10041-001CH ( SCW-1906A-H2 & SCW-1919A-H2 )

Post by rolando cerezo on Tue Sep 27, 2011 8:23 pm

Tnx much, master ultra gud day and more power to you :sunny:

rolando cerezo
AAA Battery
AAA Battery

Posts : 36
Join date : 2011-08-30
Age : 47

Back to top Go down

Re: JVC TV ( Chassis CW3 ) E.board: GGB10041-001CH ( SCW-1906A-H2 & SCW-1919A-H2 )

Post by Hertz on Thu Nov 03, 2011 7:32 pm


hijack sa sariling thread lol!

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1457
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: JVC TV ( Chassis CW3 ) E.board: GGB10041-001CH ( SCW-1906A-H2 & SCW-1919A-H2 )

Post by DJFEL on Tue Dec 15, 2015 3:50 pm

pa shear din nito...tnks..
