advice nmn regarding automated water despencer ?

Page 1 of 2 1, 2  Next

View previous topic View next topic Go down

advice nmn regarding automated water despencer ?

Post by ultrasonic™ on Sat Jan 29, 2011 9:33 pm



wla akng maisip eh...
projects nga pla eto sa schools...

anung mgandang incorporate nitu ?

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by pangkoy on Sun Jan 30, 2011 1:00 pm

anong advice ang gusto mo?

yung cousin ko ganito business niya. worth 12k-15k ang machine. outdoor type yung may box.

pangkoy
AAA Battery
AAA Battery

Posts : 8
Join date : 2011-01-02

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by pyroelectro on Mon Jan 31, 2011 6:42 pm

sir project ? di ba katatapos niyo lang ?

On topic:

kong fully automated sir. maganda lagyan ng LCD panel ng ma monitor ang lalabas na tubig (HOT/Cold).
interface niyo sa MCU

pyroelectro
C Battery
C Battery

Posts : 284
Join date : 2010-11-23
Age : 33
Location : Cebu City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by ultrasonic™ on Tue Feb 01, 2011 12:22 am

@pangkoy nku ang mahal.. business proposal yata yan (^_^
projz lng needed ko.. gus2 ko sanang advice regarding sa ibat ibang features na pwedng idagdag gaya ng lagyan radio, tv set & etc... hahaha jokz.. basta its being useful.

@pyro hahaha projz ng ate ko. assist lng aku..wla akng maisip na ideya. naubusan yata
kya needed ko ang maraming utak ah esteh ideya pala
LCD hhmmm maganda nga yan ang probz lng ala available na LCD panel d2 sa davao. at pati din MCu.. magrereprogram pa ko.. di ko pa nmn masxado gamay ang ganyng sistema.. pero tnx na rin atleast pwede dot metrix display o 7 segment nlng.. Cool

plan ko final output nya is the same as faucet but its being control by gate valving..
INPUT = 2 way for HOT & cold water starting from the water container
OUTPUT= 1 way output going to the Glass/bottle

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by PIC on Tue Feb 01, 2011 9:04 pm

ilan pala ang target budget nila sir ? DIY ba ito o ready made parts na ?

sir gawing Touchless na lahat yan. para wala ng pindutan. lagyan din ng beep code for errors ng hindi na sila mahirapan hanapin ang sira kong may fault man. oh diba pabor na yan sa kanila Twisted Evil

PIC
AA Battery
AA Battery

Posts : 85
Join date : 2010-12-17
Age : 26
Location : Bohol

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by Jane on Wed Feb 02, 2011 9:03 pm



sir lagyan ng coffee maker Razz para makapagkape na agad Razz
favorite niyo pa naman yan

Jane
C Battery
C Battery

Posts : 192
Join date : 2010-12-07
Age : 24
Location : Durian City of Davao

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by ultrasonic™ on Thu Feb 03, 2011 1:02 am

PIC wrote:ilan pala ang target budget nila sir ? DIY ba ito o ready made parts na ?
sir gawing Touchless na lahat yan. para wala ng pindutan. lagyan din ng beep code for errors ng hindi na sila mahirapan hanapin ang sira kong may fault man. oh diba pabor na yan sa kanila Twisted Evil
mumurahin lng cguro estimated ko mga 3K lng cguro ang kaya nilang e-provide Very Happy

touchless yan na tlga plan ko simula't sapol using infrared beam reflector (proximity sensors), ung beep code hmm.. nice xa magiging technician friendly xa jejeje pwo baka kulangin cla sa budget...

Jane wrote:
sir lagyan ng coffee maker Razz para makapagkape na agad Razz
favorite niyo pa naman yan
hhmm nice din xa for coffee break.. try ko e2 kng kaya pa ng budget
xa nga pala wag mu nmng ibuko d2 na mahilig aku sa kape Smile

@all tnx sa nagrereply.. puntos kau sa akin..
add more ideas pa cge na plz...

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by pyroelectro on Thu Feb 03, 2011 6:44 pm

salamat sir, sa pinaka una kong points bounce
dahil nasambit na ang coffe maker. dagdagan mo pa sir ng maiba ng kunti, lagyan ng kunti mechanism gaya ng mechanical arm. controlled by servomotor. hahawakan niya ang baso papasok, paglabas naman handa na kape. oh diba fully automated na Twisted Evil

pyroelectro
C Battery
C Battery

Posts : 284
Join date : 2010-11-23
Age : 33
Location : Cebu City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by Electro on Sat Feb 05, 2011 3:54 pm


master ultrasonic™ lagyan niyo po ng coinslot para mapagperahan niyo Twisted Evil

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by ultrasonic™ on Sun Feb 06, 2011 1:32 am

nyahaha pwde, pwo nxt tym nlng cguro muna ang coinslot di kasi applicable sa projz nila.. bka ibenta pa ng teacher nila lol!

@pyro nice xa ang probz lng waz my servo available sa davao.

@all im still waiting pa rin... more ideas pa... puntos kau promize

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by Hertz on Sat Feb 19, 2011 10:19 pm

sir meron bang criteria ? thesis ba ito o small project lang ?
nasimulan na ba nila ang construction o still planning design pa rin ?

sir ito ang maidadagdag ko. dapat meron pang panibagong liquid storage container para sa milk. corporate niyo into vacuum pump tubing ng makagawa ng cappuccino o hindi kaya cafe latte. oh anong say mo sir ? Cool pwede na yan sa business proposal


_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by pangkoy on Sun Feb 20, 2011 11:30 am

lagyan niyo po ng swipe card para lahat ng students na may id can use the water dispenser.

yung id ng students ang isaswipe sa machine. once enrolled sila sa school pwede sila makagamit ng machine. kapag hindi enrolled hindi naman makakagamit.

pangkoy
AAA Battery
AAA Battery

Posts : 8
Join date : 2011-01-02

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by Oscar on Wed Feb 23, 2011 4:10 pm


master hulog peso lang man akong nahibal an Mad

Oscar
C Battery
C Battery

Posts : 279
Join date : 2010-09-22

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by ultrasonic™ on Fri Feb 25, 2011 2:23 am

swipe card ? hhmmm.. nyc xa.. kaya lng di kaya yata sa budget (^_^


xa nga pala e2 nga pala ang partial planning ko..
pakidagdagan nmn at paki check kng may samthing probz

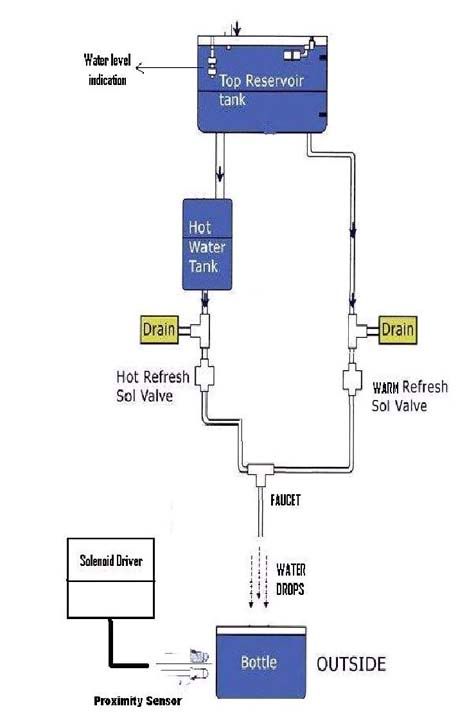

system block diagram

it composed of 2 water inlet solenoid valve kng wlang mahagilap na 2 input.

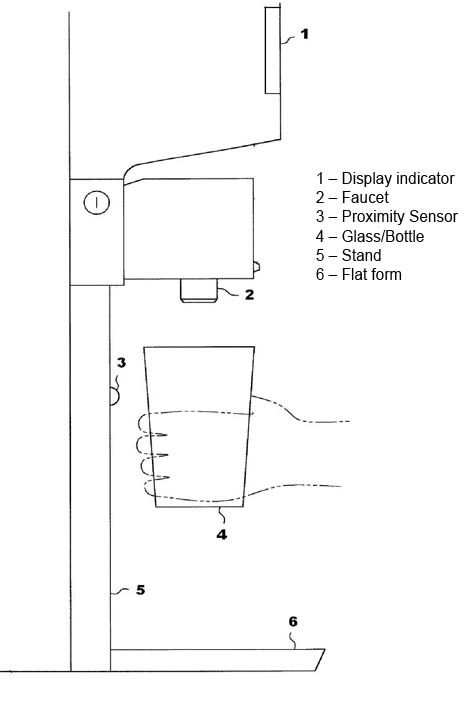

bali ganito ang operation nasa harap na mismu ang proximity sensor to determine na may bottle glass na nilapit sa faucet at magbbigay na e2 ng tubig. gaya nito.

im planning na maglagay din ng time delay around 2-3 secs. para di agad lalabas ang tubig Twisted Evil

plano kong e-setup ung sensors sa harapan ng water despense in a form of horizontal form or triangular form. anung mas maganda ? libog man gud


e2 nmn ang circuits ko. partial din

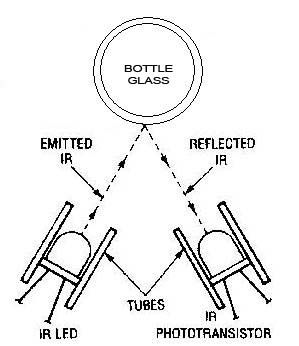

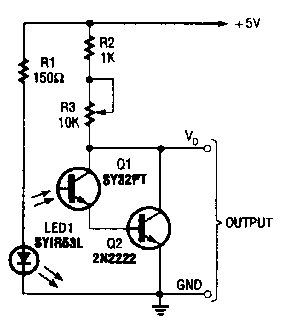

for proximity sensor



for solenoid driver circuit

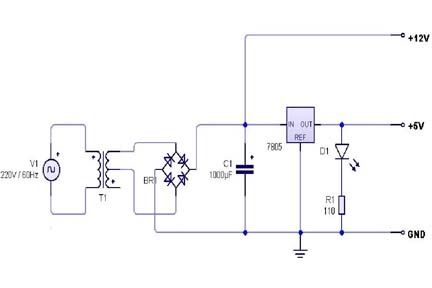

for power supply (partial din)


still planning din kasi na bka smps nlng :arrow:


_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by PIEZO on Mon Feb 28, 2011 7:53 pm

sir base on the block diagram. you didn't include the refrigerant system. why ? is there's anything problem? and how could you controlled the mode of water outcome ? there's still missing circuit that you don't post up. may i am right sir ?

heres my little comment sir, i think you know this already but we must to aware those readers

before add more features try to solved this problem first

possible common problem occurred a water leakage on the system,

use a proper silicon hose that a anti bacterial to avoid poisoning the drinker

the proximity sensor posted above is needed a proper calibration specially if it is a diy form



_________________
2rd member of STTM
former 3rd member

PIEZO
Admin
Admin

Posts : 140
Join date : 2010-08-12
Age : 34

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by Hertz on Mon Mar 07, 2011 4:57 pm


kuripot yan si sir kaya ganyan lol!

@sir ultra kumusta na ito ? tapos na ba ?
post the pics

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by ultrasonic™ on Tue Mar 08, 2011 8:20 pm

nku hndi ko pa nga nasisimulan Twisted Evil nghihintay pa aku sa kanilang final decision. ng masimulan sana ang pcb layout

xa nga pala meron pa palang isa pang projz..
comment kau doon ha

tnx

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by ultrasonic™ on Fri Apr 01, 2011 8:42 pm


update ko lng tapoz na daw project nila.

post ko mga picx at mga details pgbalik ko medjo bz lng Cool

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by Digitap on Fri Apr 15, 2011 9:21 pm


nasaan na ? Razz

Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by Hertz on Wed Apr 20, 2011 9:30 pm


oo nga, oo nga nasaan na ? kami naman ang mangungulit sayo sir

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by volter on Mon Apr 25, 2011 9:24 pm

hintay nga ako dito reading

_________________
4th member of STTM
former 5th member

volter
Admin
Admin

Posts : 174
Join date : 2010-08-24
Age : 40

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by pyroelectro on Tue May 03, 2011 9:26 pm

Hertz wrote:
oo nga, oo nga nasaan na ? kami naman ang mangungulit sayo sir

gumagante si sir lol!

pyroelectro
C Battery
C Battery

Posts : 284
Join date : 2010-11-23
Age : 33
Location : Cebu City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by Digitap on Fri May 13, 2011 2:14 am


up

Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by ultrasonic™ on Fri May 13, 2011 7:08 pm


wait hanapin ko muna files nila

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by ultrasonic™ on Wed May 25, 2011 1:21 am

napost ko na pla ang ibang mga picx sa pg. 1

eto nlng ang hndi pa

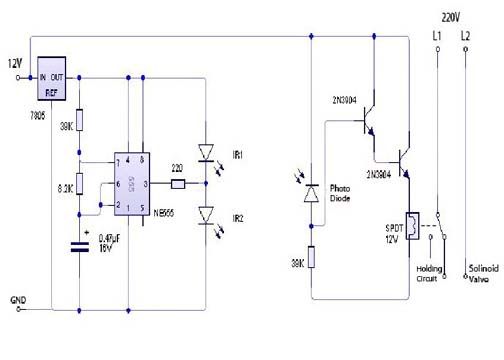

final beam blocker circuit


eto nmn ung documentations nila
MODIFIED WATER DESPENCER

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: advice nmn regarding automated water despencer ?

Post by Sponsored content Today at 1:39 am


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
