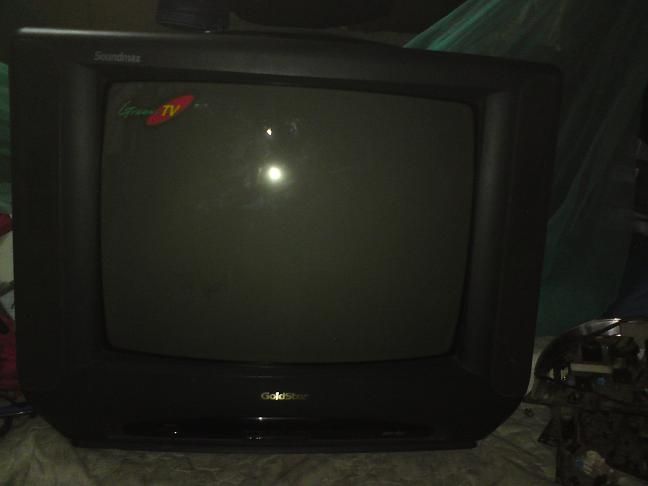

Goldstar or LG TV ( Chassis NC-5AA ) Eboard: 111-Q74A(5)

View previous topic View next topic Go down

Goldstar or LG TV ( Chassis NC-5AA ) Eboard: 111-Q74A(5)

Post by ultrasonic™ on Fri Jan 28, 2011 10:16 pm

Model #:



CN-20A30


Chassis NC-5AA

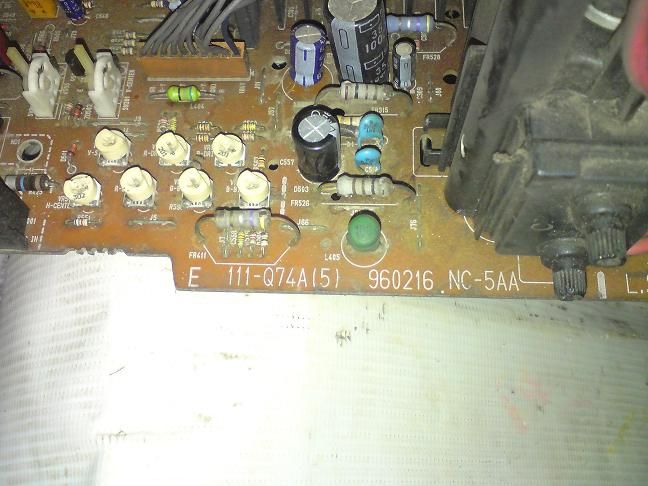

Eboard:  111-Q74A(5)





Parts:


Powe Reg.: STR50092K
EEPROM : 24C02
System Con. : TMP67CC31N
Jungle : LA7674 / M52339ASP
Vertical : LA7837
Sound : TDA2006
FBT : 154-177C
Tuner : CHR7A707B
--------113-241A

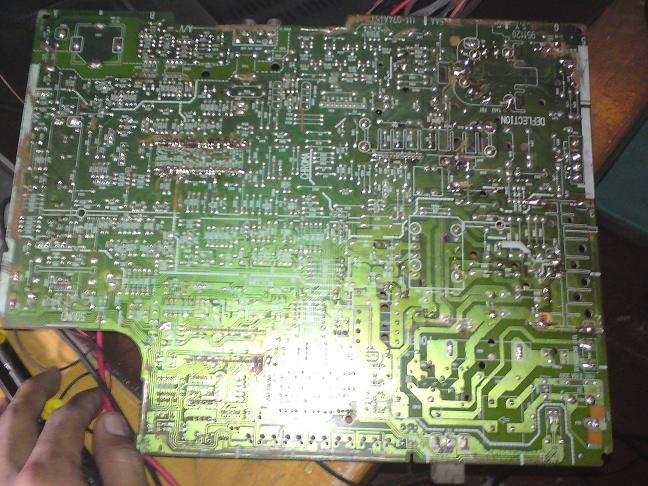

NC-5AA

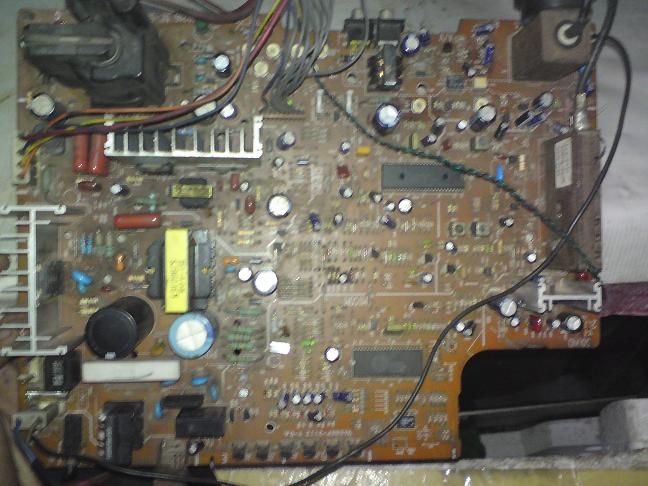

NC-5AA

eeprom:
NC-5AA dump
