SONY TV ( Chassis BG3R ) E.board: 1-679-571-15 & 1-682-199-14

View previous topic View next topic Go down

SONY TV ( Chassis BG3R ) E.board: 1-679-571-15 & 1-682-199-14

Post by Hertz on Thu Aug 12, 2010 10:32 pm

SONY


MODEL NO:  KV-XA21M80
Chassis:   BG3R
E.board: 1-679-571-15
Part No: PART NO. :  9-872-283-01





Regulator - STR-F6654
EEPROM - M24C08
System Con - CXP86449-630S
Jungle - CXA2159S
COMB FILTER - TDA9183T
Sound Processor - TDA7442D013TR
Sound - TA8223K
Video- TDA6107Q/N2
Vert -  AN5522

Hot - 2SD2578
FBT - NX-1748 = 8-598-831-00, NX1748 = 8-453-352

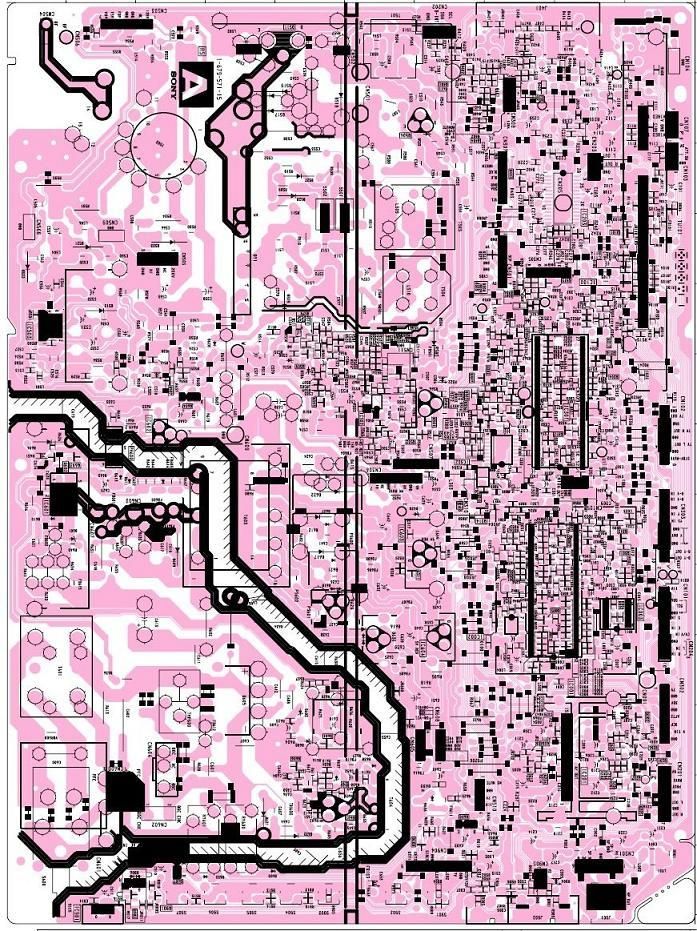

SONY CHASSIS BG3R


Last edited by Hertz on Tue Mar 01, 2016 4:44 pm; edited 5 times in total

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: SONY TV ( Chassis BG3R ) E.board: 1-679-571-15 & 1-682-199-14

Post by ultrasonic™ on Fri Apr 01, 2011 9:26 pm


ito din hertz paki-edit nmn..
lagay mu ang mga major parts
sundin mu ang format ko
slamat

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: SONY TV ( Chassis BG3R ) E.board: 1-679-571-15 & 1-682-199-14

Post by ultrasonic™ on Wed Sep 28, 2011 11:15 am

mkisingit  dito...
same chassis kasi



KV-TG21M70
KV-TG21M90/N


Chassis BG3R
Eboard: 1-682-199-14


Powe Reg.: STR-F6707
EEPROM : 24C08
System Con. : CXP85224A-080S, CXP85224A-085S
Jungle/Chroma : TDA8844/N2
Vertical : AN5522
Sound : AN5276
HOT : 2SD2624
FBT : NX-4450



Chassis BG3R
