JVC TV ( Chassis CQ ) E.board: GGB10064-001CH

Post by ultrasonicâ„¢ on Thu Sep 29, 2016 5:24 pm


JVC TV

Model Series:

AV-2100QE
AV-21Q17
AV-21Q17/L
AV-21QMG7/G
AV-21QMG7/S
AV-21QMG7B/G



Chassis CQ
Eboard: GGB10064-001CH





Main Parts:

Reg: STR-W6554A-F5
EEPROM: AT24C08A10PU2.7

UOC: A8897CPBNG-6RJ3 ,
8897CPBNG6RJ3
RGB: 2SC4212
Sound: AN5279
Vert: AN15526A
Hot: TT2202
FBT: QQH0220-001
Tuner: QAU0466-002, TAEM-G503D(B)

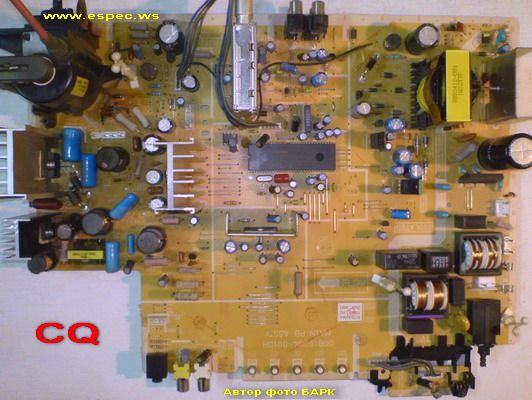

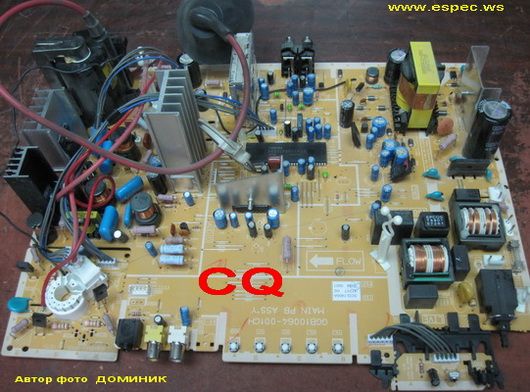

JVC TV ( Chassis CQ ) E.board: GGB10064-001CH
