Sharp TV ( Chassis GA-8P(VE) ) Eboard: DUNTKF472WE

Post by Hertz on Sun Aug 14, 2016 2:47 pm

Sharp TV


21G-FX10L(A)

Chassis GA-8P(VE)
Eboard - DUNTKF472WE , QPWBF472WJN1, QKITP472WJN1





Partlist:

Reg - STRW5453
EEPROM - M24C08W6
UOC - IXD064WJ
RGB - B422
Sound - LA42032E
Vert - LA78040B
HOT - C6090
FBT - FA151WJ
Tuner - QA037WJNI

Service mode is switched by SERVICE key, CH UP + VOL DOWN when reset.

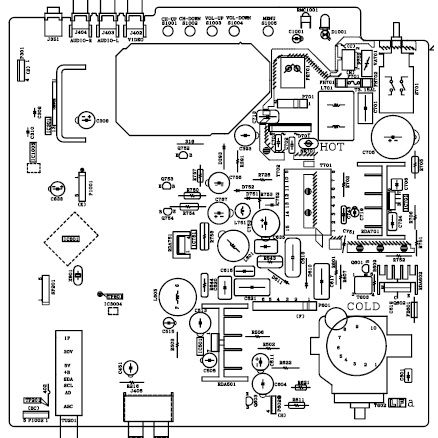

Sharp TV Chassis GA-8P(VE)
