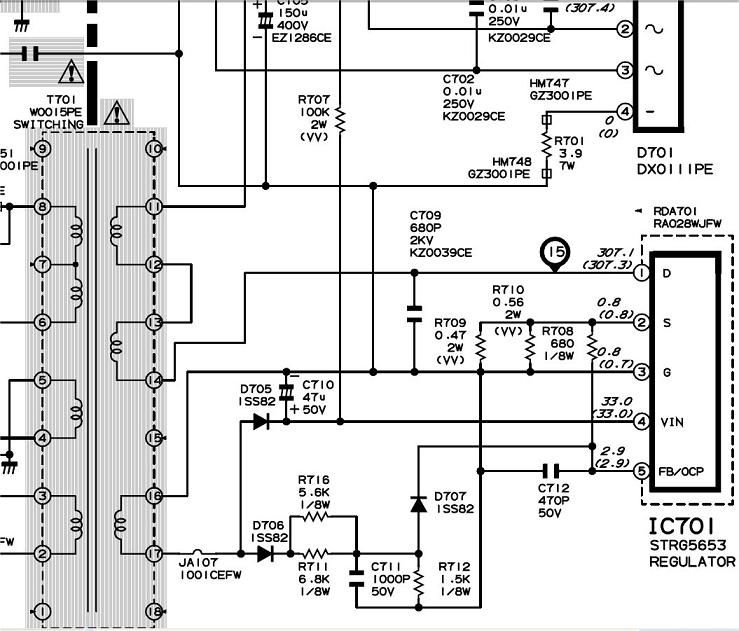

Sharp TV ( Chassis GA-1AM ) Eboard: DUNTKB508WE

Post by Hertz on Fri Jul 01, 2016 12:14 pm

Sharp TV

14D1-S/G/W
14D2-S/G


Chassis GA-1AM
Eboard: DUNTKB508WE , QPWBFB508WJN2 , QKITPB508WJN2



Partlist:

Reg - STRG5653
EEPROM - CAT24W04(BR24C04)(M24C04W)
UOC - IX3368CE
RGB - TX0124BM, TX0110BM
Sound - AN7523
Vert - AN5522
HOT- D2586
FBT - F0228PE
Tuner - VTUCTF5511






SERVICE mode:

Short JA 137 & JA 138 for 1 second and release to switch to the service mode position, and the
microprocessor is in input mode. (Adjustment through the I2C bus control). (Use JWS Key to set as
well).
