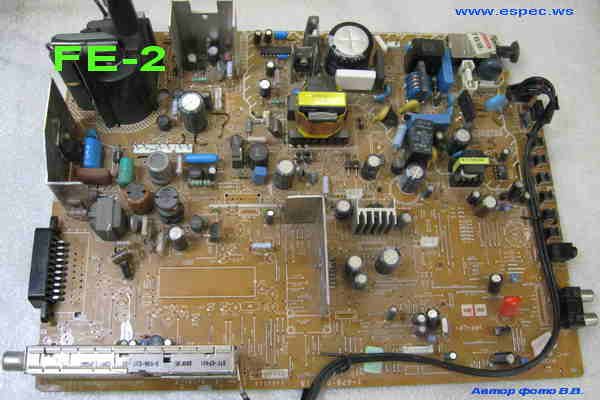

SONY TV ( Chassis FE-2 ) Eboard: 1-688-091-11 / 1-678-040-13

Post by Hertz on Tue Jun 28, 2016 11:50 pm

SONY


KV-29CL10K
KV-25FX30B
KV-25FX30E
KV-25FX30K
KV-28LS35B
KV-29CL10B
KV-29CL11E
KV-29FX30B
KV-29FX30E
KV-29FX30K
KV-29LS35K
KV-29LS40E






Chassis FE-2
Eboard - 1-688-091-11






Partist:


SMPS - MCZ3001D
UOC - TDA9394M/N1/5/0583 FE2S 3.44
Memory - 24C08W6 (smd)
SAW - K3650K
Vertical - STV9379
Sound - LA7496S
Stereo - MSP3410G B8 V3
RGB Amp. - TDA6108JF
HOT - ST2310DHI
FBT - 8-598-834-40 NX-4521//Z (HR8579)
Tuner - BTF-EC411(10) 8-598-533-10










SONY TV


KV-14LM1K
KV-14LT1K
KV-21FT2K
KV-21LT1K






Eboard: 1-678-040-13


SMPS - MCZ3001D + 2SK2876
UOC - TDA9392H/N1/4/0131 FE2 V.1.12
EEPROM - 24C08
Vertical - TDA8177
Sound - TDA7494S
RGB Amp. - BF420 & BF421
HOT - BU4508DX
FBT - 0013039801 (HR7946)
Tuner - BTF-EP401 BB0F05 8-598-537-00




SONY TV Chassis FE-2
