Sharp TV ( Chassis GB-3D (1W) ) Eboard: DUNTKD571WE

Post by Hertz on Fri Jun 17, 2016 4:17 pm

Sharp TV


27SC26B


Chassis GB-3D (1W)

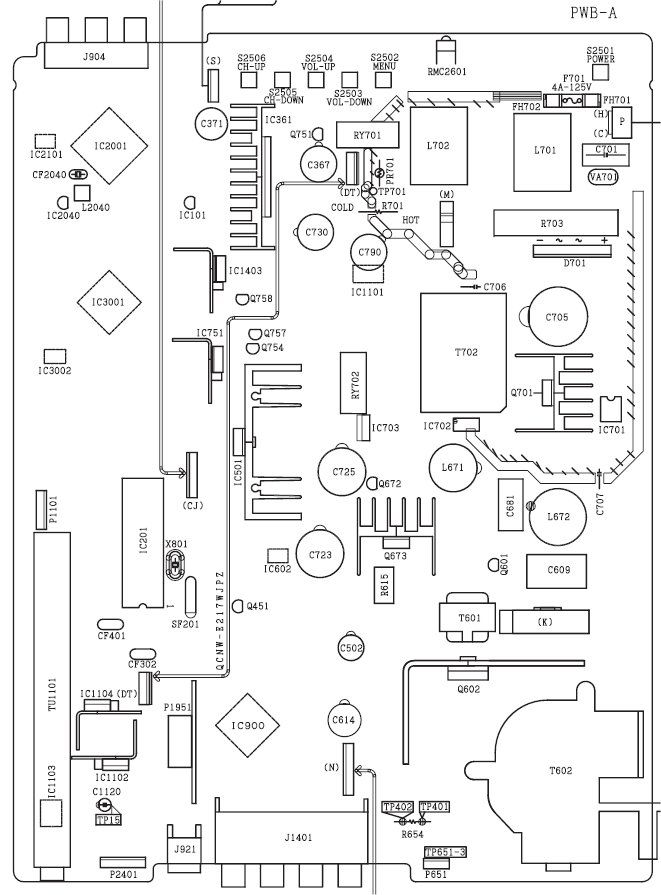

Eboard: DUNTKD571WE,  DUNTKD571WEA6, QPWBFD571WJN1








Main Parts:


Reg - SPA07N603, STP13NK60ZFP
Pwm - TEA1533A
EEPROM - BR24L16F
System Con - IXB644WJ
Jungle - TB1253AN
YC SEPARATOR - TC90A45F
Sound - AN5277
RGB - C3198, C3789, C3619LB
Vert - AN15526A
Hot - D2634
FBT - FA037WJ






To enter the service mode manually just press and hold
the Vol-down and Ch-up buttons at the same time, plug
the AC cord into a wall socket.
Now the TV set is switched on and enters the service
mode.
To exit the service mode, turn the television off by
pressing the power button.


Sharp TV Chassis GB-3D(1W)
