Sharp TV ( Chassis SN-80 ) Eboard: DUNTK9532WE

Post by Hertz on Mon Jun 06, 2016 6:02 pm

Sharp TV

20L-S100S
CL20S10
21ML50


Chassis SN-80
Eboard: DUNTK9532WE , QKITP9532PEN2

DUNTK9532WEV7 (20L-S100S)
DUNTK9532WEV9 (CL20S10)
DUNTK9532WEW1 (21ML50)







Main Parts:

Reg - STR30130
EEPROM - M24C01B, M24C16B
System Con - IX3256CE
jungle - IX3253CE
Sound - TDA7233
MTS - CXA2074Q
RGB - C22290
Vert - TA8403K
HOT - D2586
FBT - F0163PE, F0149PE
TUNER - VTSt5UF78S

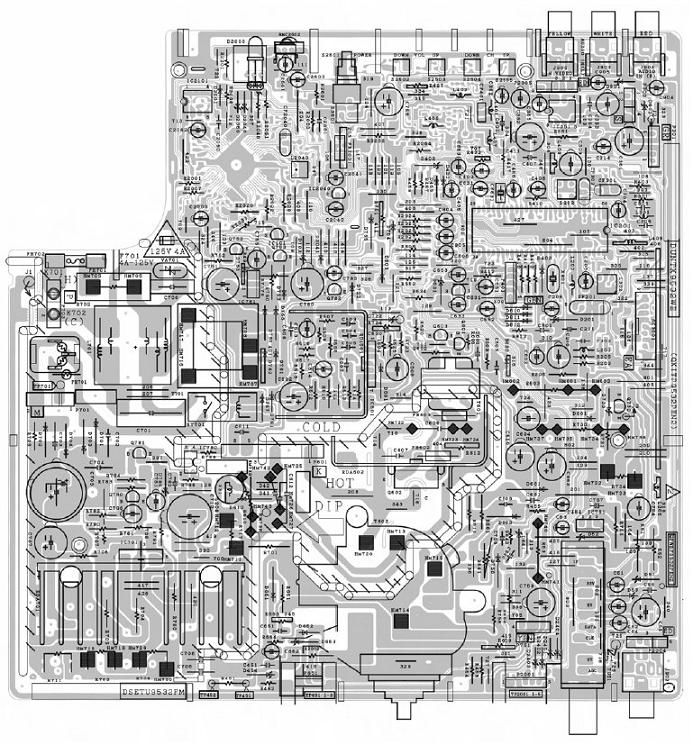

Sharp TV Chassis SN-80
