Sharp TV ( Chassis GA-1E ) Eboard: DUNTK7340BM

Post by Hertz on Mon Jun 06, 2016 4:24 pm

Sharp TV

21HT15H

chassis GA-1E
Eboard : DUNTK7340BM , QPWBF7340BMN4



Main Parts:

Reg - STP4NC80Z
PWM - TEA1507
EEPROM - M24C08W6
UOC - IX3559CE, TDA9350PS/N2/2/0442
Sound - AN7523
RGB - BF421 & BF422
Vert - AN5522
HOT - D2586
FBT - F2053CE
TUNER - CTF5511+++

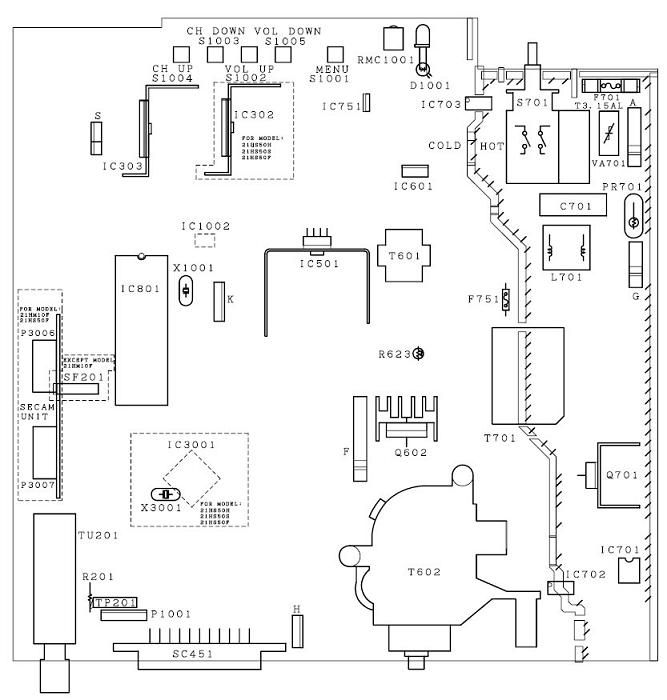

Sharp TV Chassis GA-1E
