SONY TV ( Chassis FE-1 ) E.board: 1-668-897-27 / 1-668-897-25

Post by Hertz on Mon Apr 04, 2016 5:19 pm

Sony

KV-25R2, KV-25R2K, KV-21T5K, KV-21C5B, KV-21C5D, KV-21C5E, KV-21C5K, KV-21C5R, KV-21M5D, KV-21M5K, KV-21T5D, KV-21T5K, KV-21T5R, KV-21X5A, KV-21X5B, KV-21X5D, KV-21X5E, KV-21X5K, KV-21X5L, KV-21X5R, KV-21X5U, KV-25B5E, KV-25C5A, KV-25C5B, KV-25C5D, KV-25C5E, KV-25C5K, KV-25C5R, KV-25K5A, KV-25K5B, KV-25K5D, KV-25K5E, KV-25K5K, KV-25K5R, KV-25K5U, KV-25M2A, KV-25M2D, KV-25M2E, KV-25M2K, KV-25R2A, KV-25R2D, KV-25R2E, KV-25R2R, KV-25T2A, KV-25T2B, KV-25T2D, KV-25T2E, KV-25T2K, KV-25T2L, KV-25T2R, KV-25T2U, KV-25X5A, KV-25X5B, KV-25X5D, KV-25X5E, KV-25X5K, KV-25X5L, KV-25X5R, KV-25X5U, KV-29B5E, KV-29C5A, KV-29C5B, KV-29C5D, KV-29C5E, KV-29C5K, KV-29C5R, KV-29K5A, KV-29K5B, KV-29K5D, KV-29K5E, KV-29K5K, KV-29K5U, KV-29X5, KV-29X5A, KV-29X5B, KV-29X5D, KV-29X5E, KV-29X5K, KV-29X5L, KV-29X5R, KV-29X5U

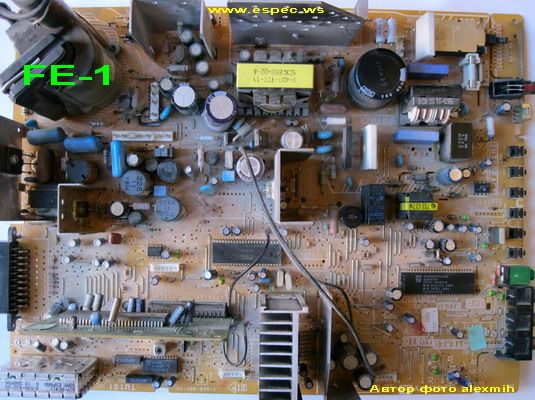

Chassis FE-1
Eboard - 1-668-897-27 / 1-668-897-25






Main Parts:

Reg - STR6662 / STR6654
PWM - TOP209
System Con - SAA5498PS/203 / SAA5497PS/200 FE1ST V4.51/E
Memory - 24C08 (smd)
Jungle - CXA2060BS
Vertical - STV9379
Sound - TDA7494 / TDA7495 stereo
SAW - K9356M & G3962M
RGB - BF871
HOT - 2SC2055 / 2SD2539
FBT - 8-598-825-00 NX-1747//U , 859880300 (HR8372)
Tuner - BT-AC401 / BTP-AC411 8-598-432-00
IF - TDA9817

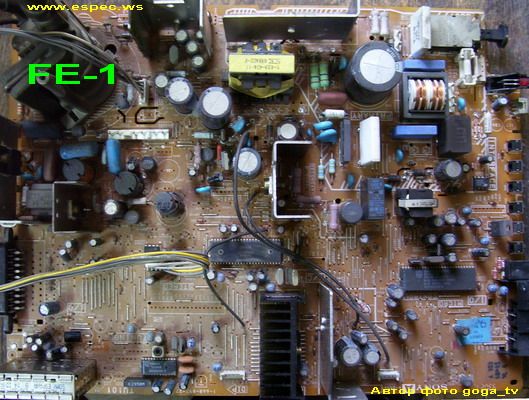

SONY Chassis FE-1
