JVC TV ( Chassis CL ) E.board CKF0965-BS1-1

Post by ultrasonicâ„¢ on Fri Feb 19, 2016 6:48 pm

JVC TV

AV-G2171

Chassis CL
Eboard: CKF0965-BS1-1






Partlist:


Power Reg.: STR-F6653
EEPROM : 24C04
System Con: M37212M6-116SP
jungle: TB1226EN
Vertical : LA7840
VIDEO driver: 2SC4722, 2SC2371
Sound : AN5265
HOT: 2SD1876, 2SD1878
FBT : QQH0020-001 1224334, QQH0021-001
Tuner: CEEU544-B03 TUVIF4EG-752F

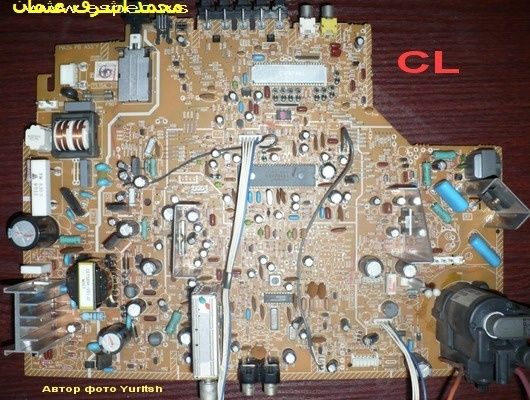

JVC TV Chassis CL
